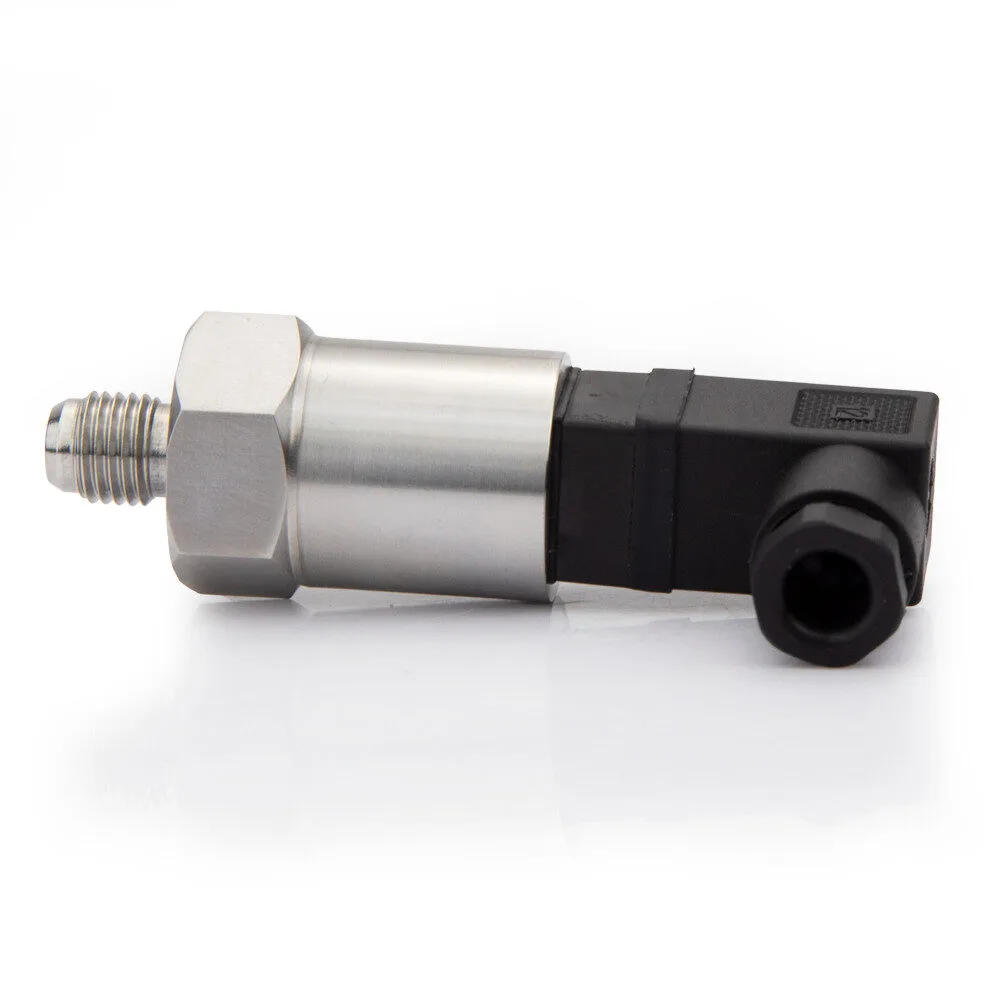

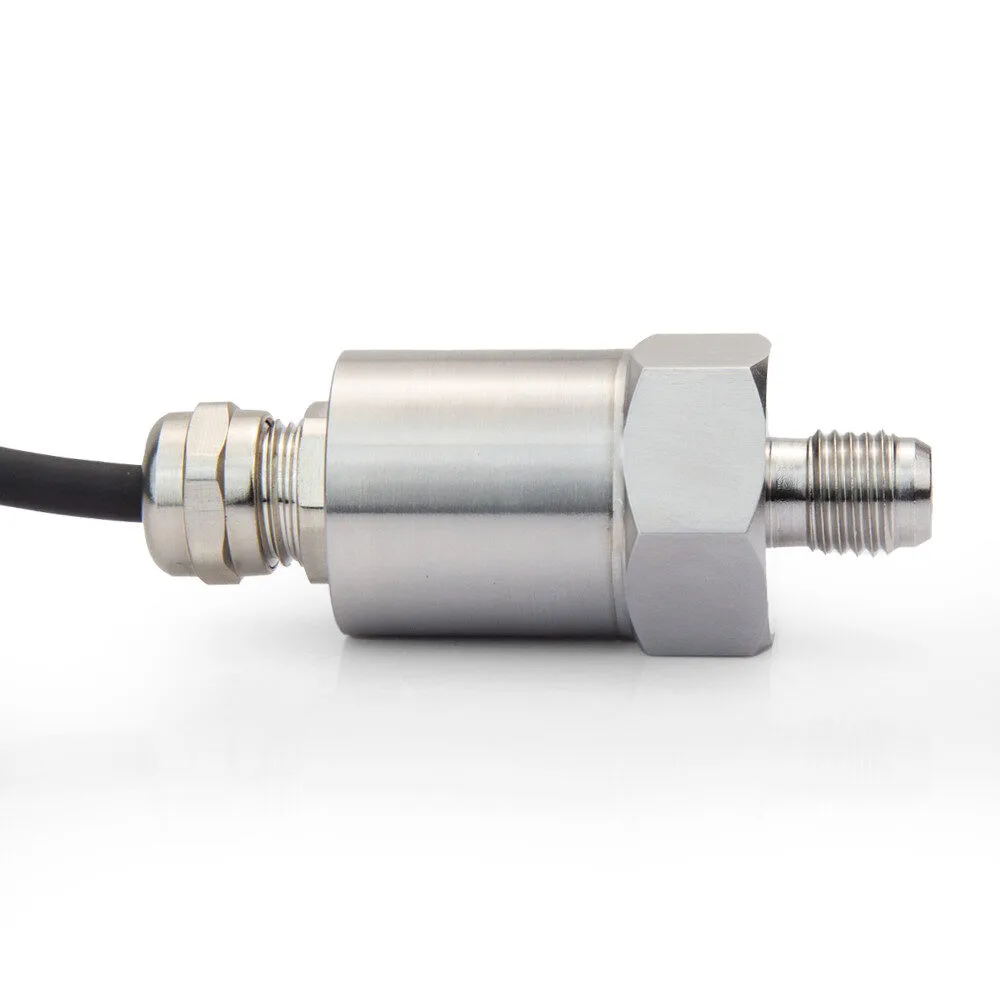

XDB307 series of pressure transmitters are purpose-built for refrigeration applications, utilizing ceramic piezoresistive sensing cores housed in stainless steel or copper enclosures. With a compact and user-friendly design, and a specially engineered valve needle for the pressure port, these transmitters ensure excellent electrical performance and long-term stability. Designed to meet the demanding requirements of refrigeration compressors, they are compatible with various refrigerants.
● Small and compact size with good sealing.

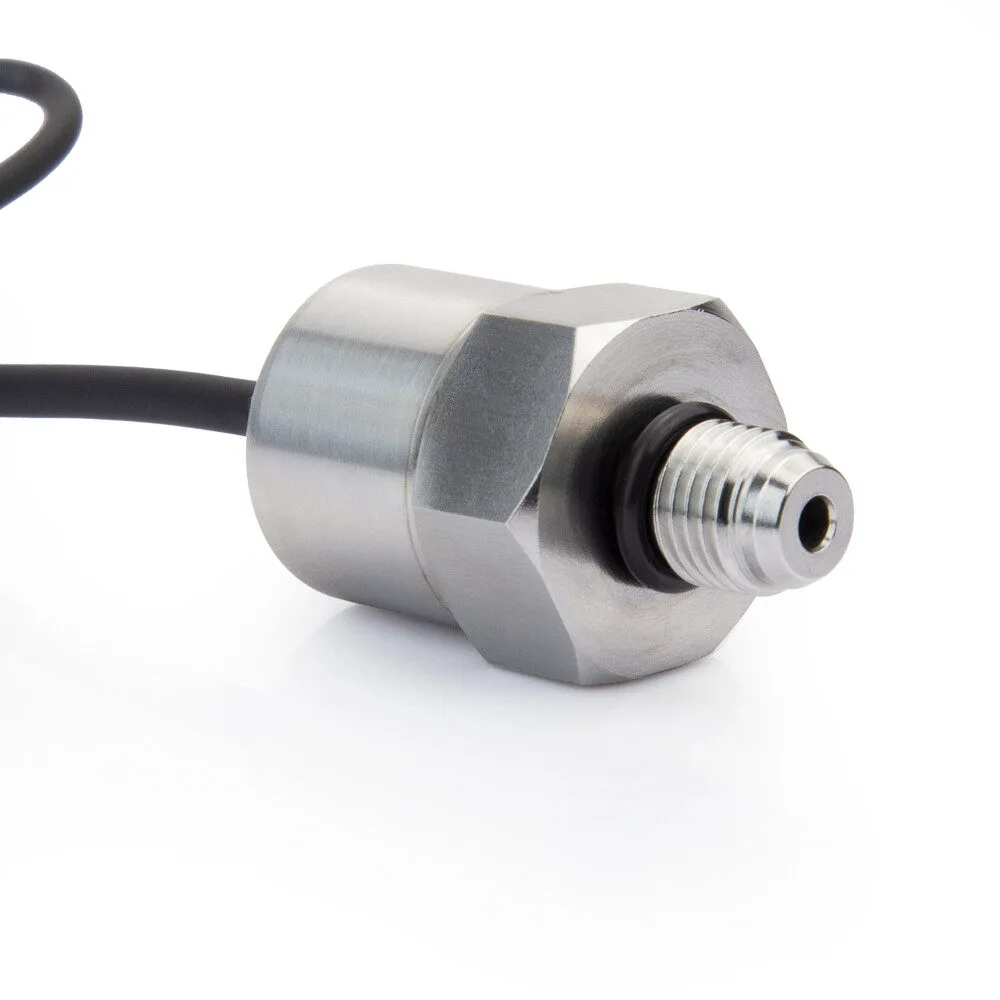

● Stainless steel shell/copper shell/copper shell with thimble.
● Affordable price & economical solutions.
● Complete surge voltage protection function.
● Widely used in the air conditioning and refrigeration industry, XDB307 series provides precise and reliable pressure measurements. With a special valve needle for the pressure port design, long-term reliability and good electrical performance and ease installation.
● High performance price ratio with high accuracy, robustness suitable for various types of refrigerants and are widely used in the air conditioning and refrigeration Industry.
● Commercial air conditioner, Refrigeration.
● HVAC system, Automobile air conditioner.
E.g. XDB307-1- 10B – 02 – 2 – A – B1 – W2 – b – 03
|
1 |
Pressure range | 10B |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
|
2 |
Pressure type | 02 |
| 01(Gauge) 02(Absolute) | ||
|
3 |
Supply voltage | 2 |
| 0(5VCD) 1(12VCD) 2(9~36(24)VCD) 3(3.3VCD) X(Others on request) | ||
|
4 |
Output signal | A |
| A(4-20mA) B(0-5V) C(0.5-4.5V) D(0-10V) E(0.4-2.4V) F(1-5V) G(I2C) X(Others on request) | ||
|
5 |
Pressure connection | B1 |
| B1(7/16-20UNF male ) X(Others on request) | ||
|
6 |
Electrical connection | W2 |

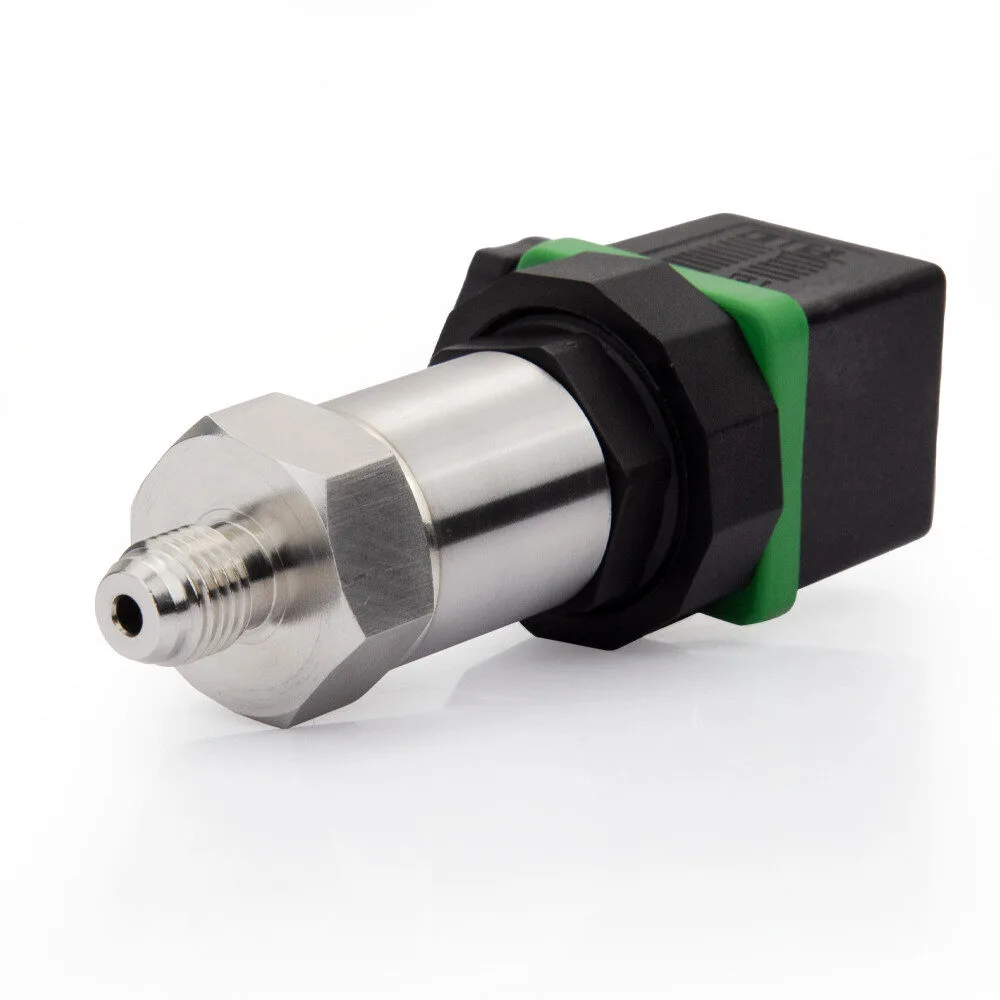

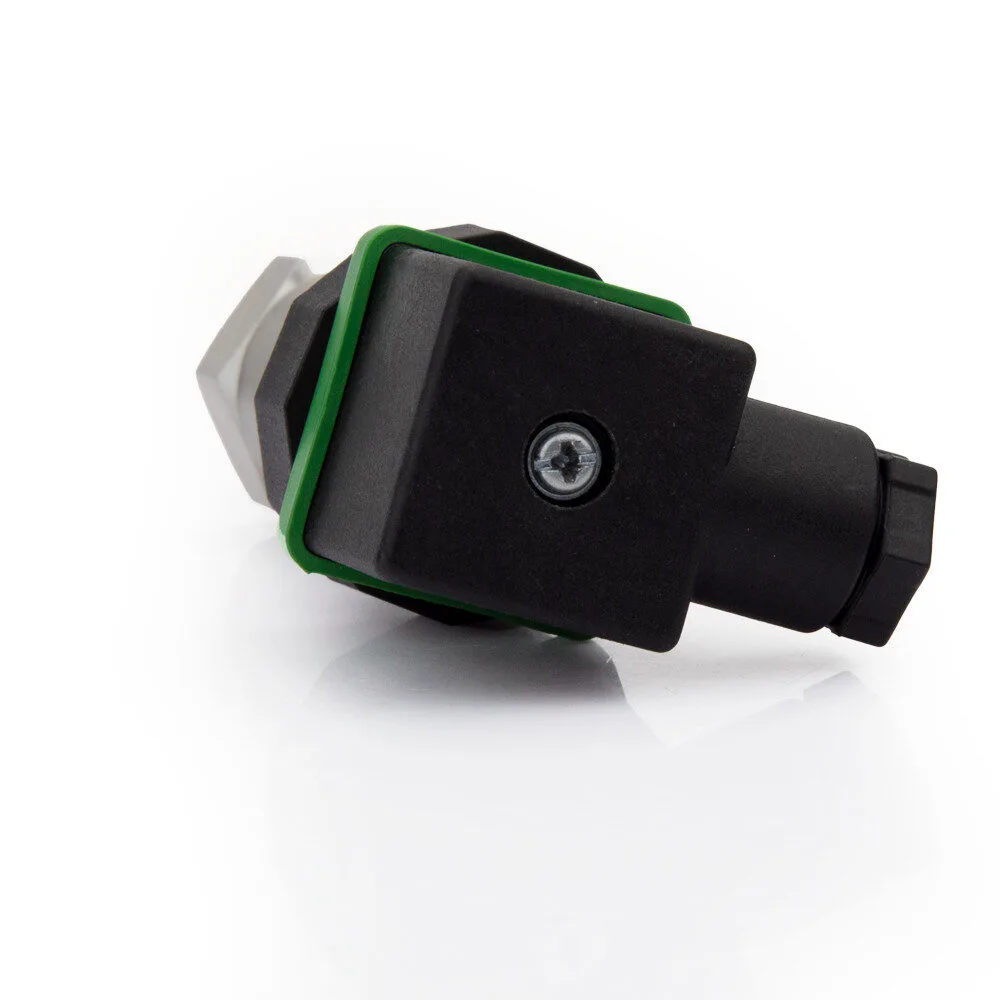

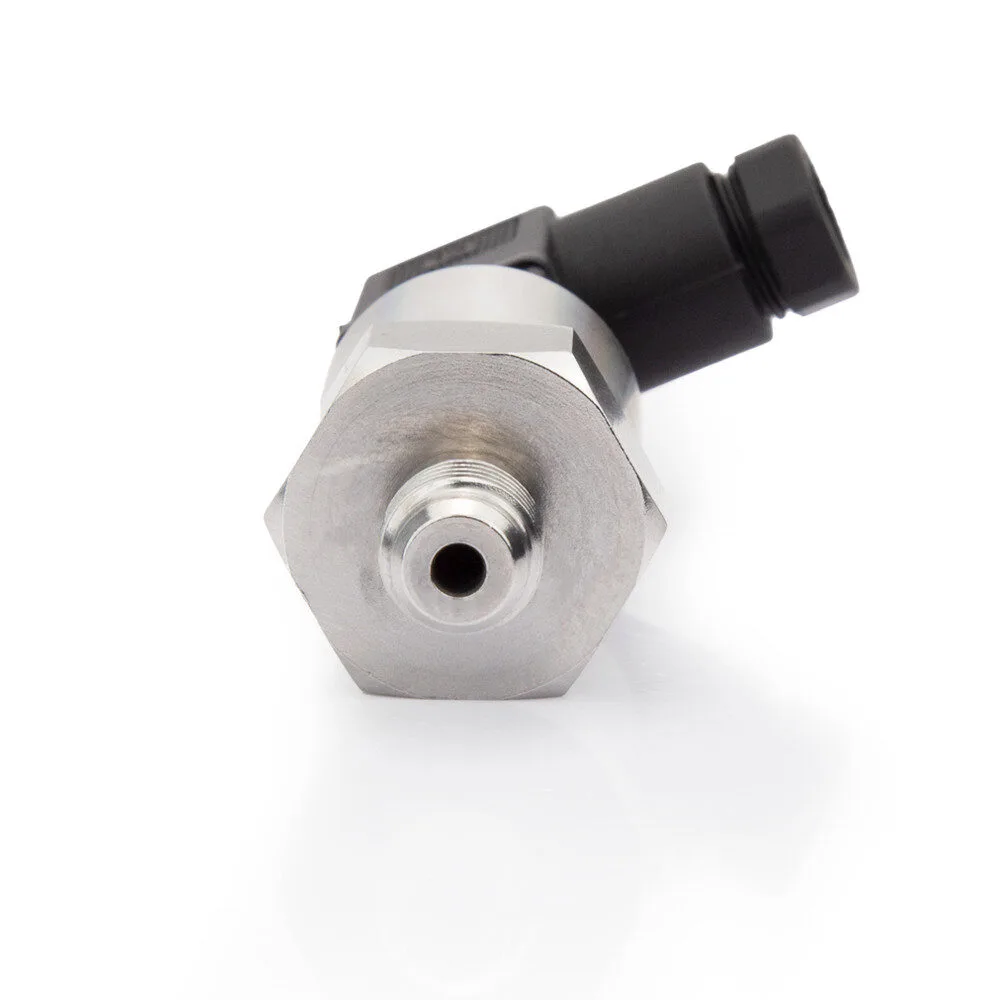

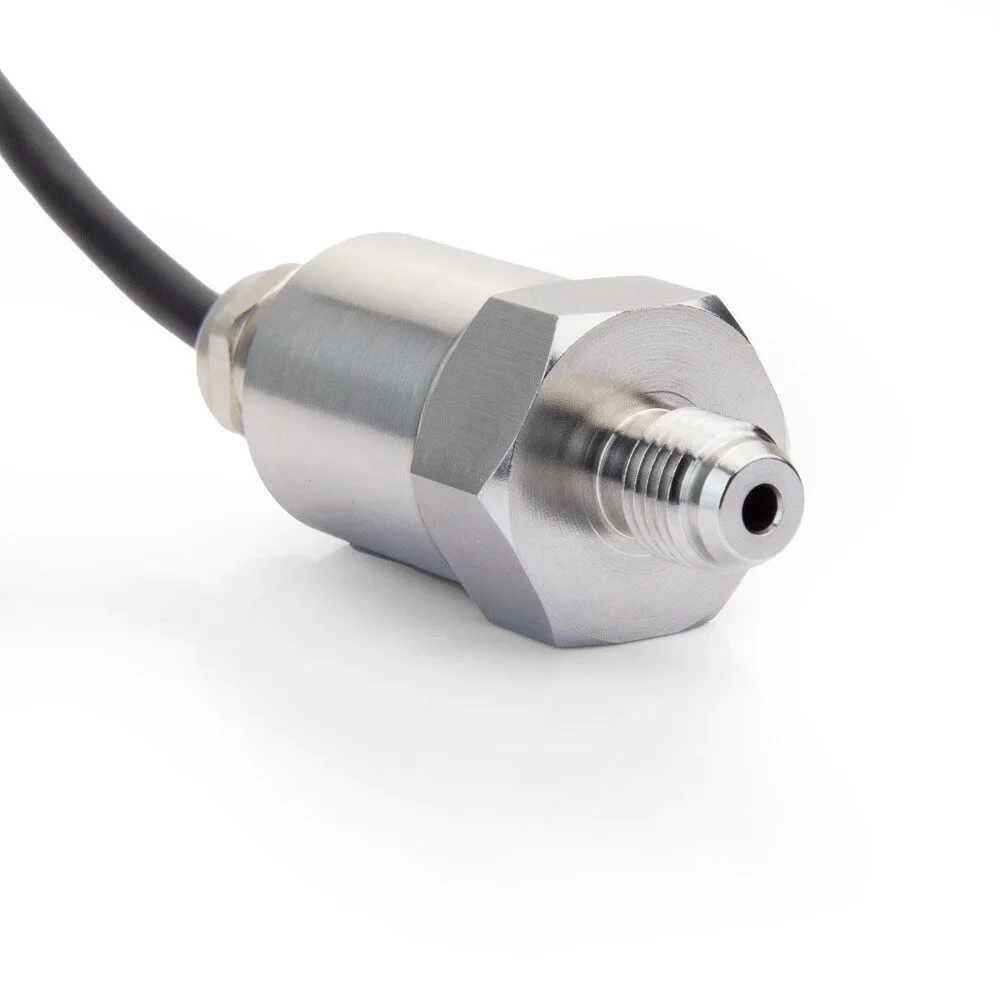

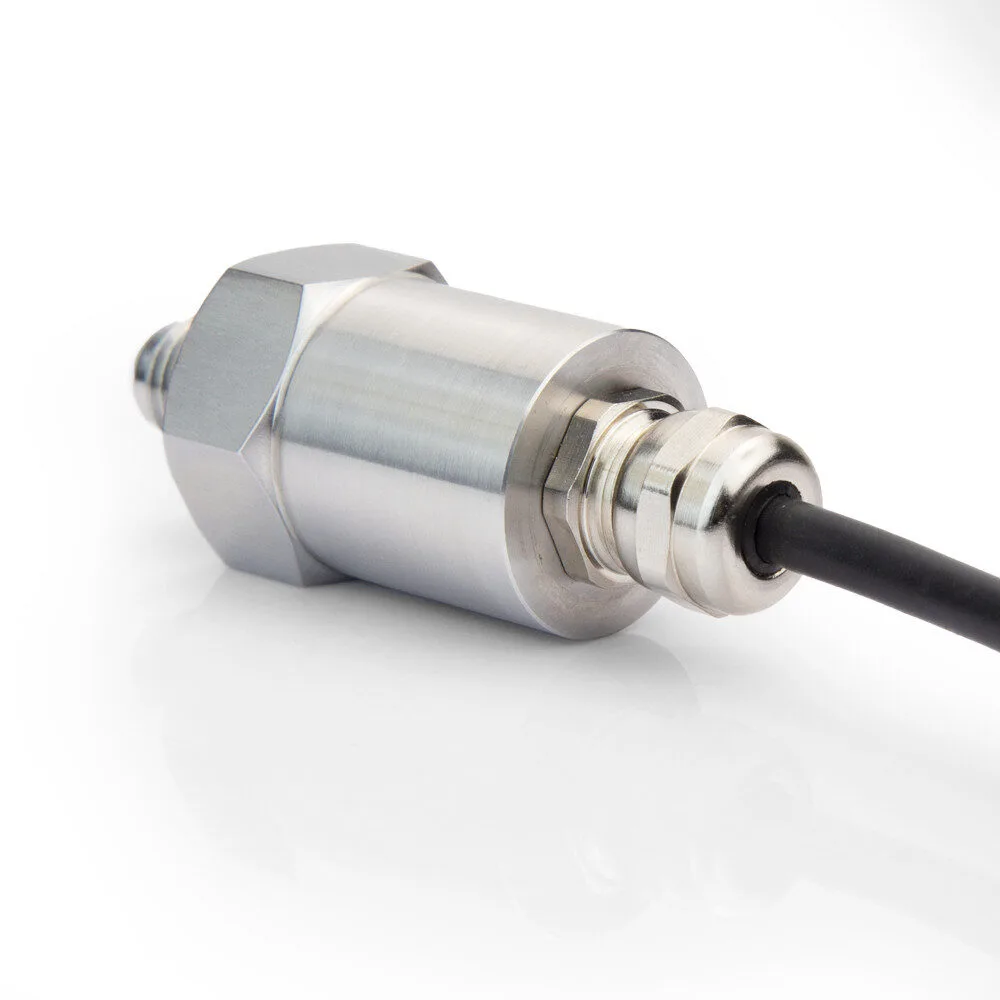

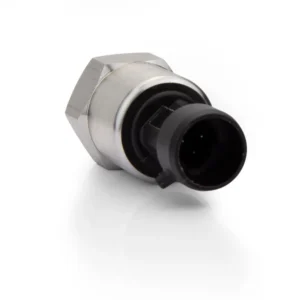

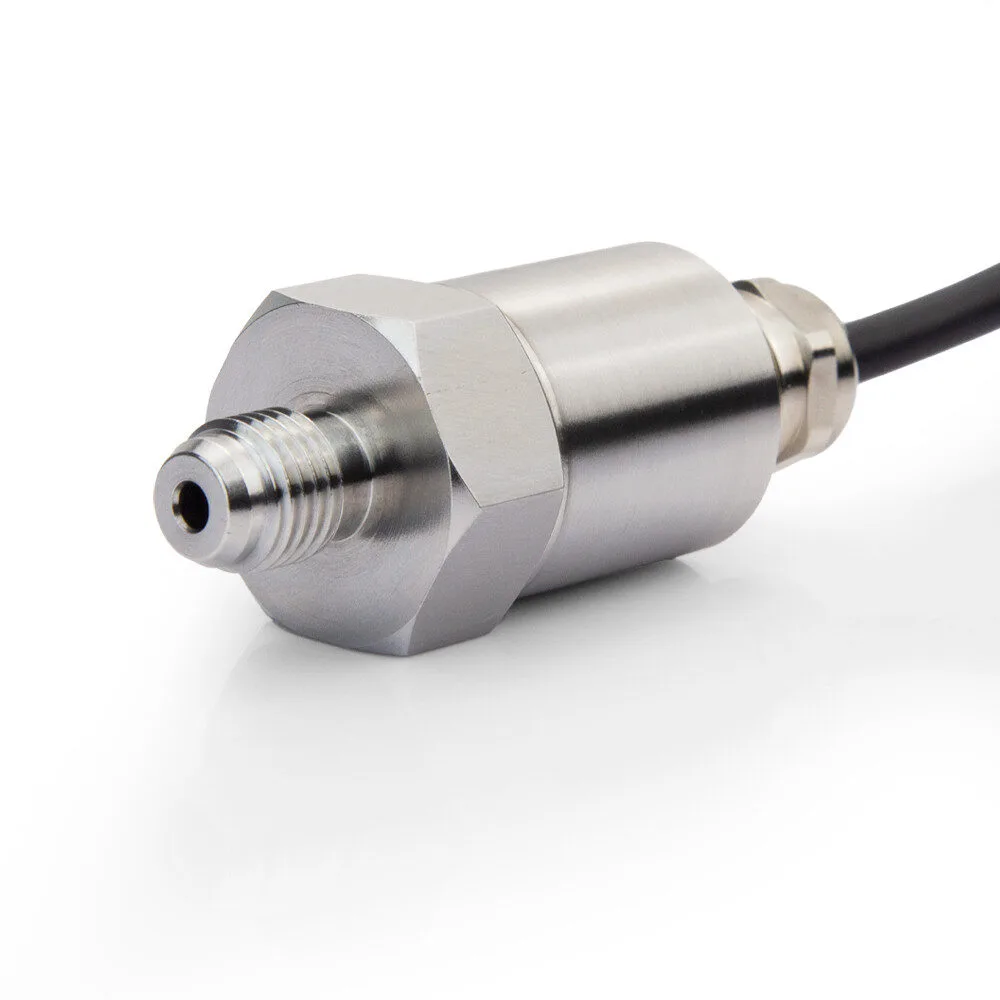

| W1(Gland direct cable) W2(Packard) W4(M12-4Pin) W5(Hirschmann DIN43650C) W6(Hirschmann DIN43650A) W7(direct plastic cable) X(Others on request) | ||
|
7 |
Accuracy | b |
| b(0.5% FS) c(1.0% FS) X(Others on request) | ||
|
8 |
Paired cable | 03 |
| 01(0.3m) 02(0.5m) 03(1m) X(Others on request) | ||
|
9 |
Pressure medium | R134a |
| X(Please note) | ||
Notes:
1) Please connect the pressure transmitter to the opposite connection for different electric connector.
If the pressure transmitters come with cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
