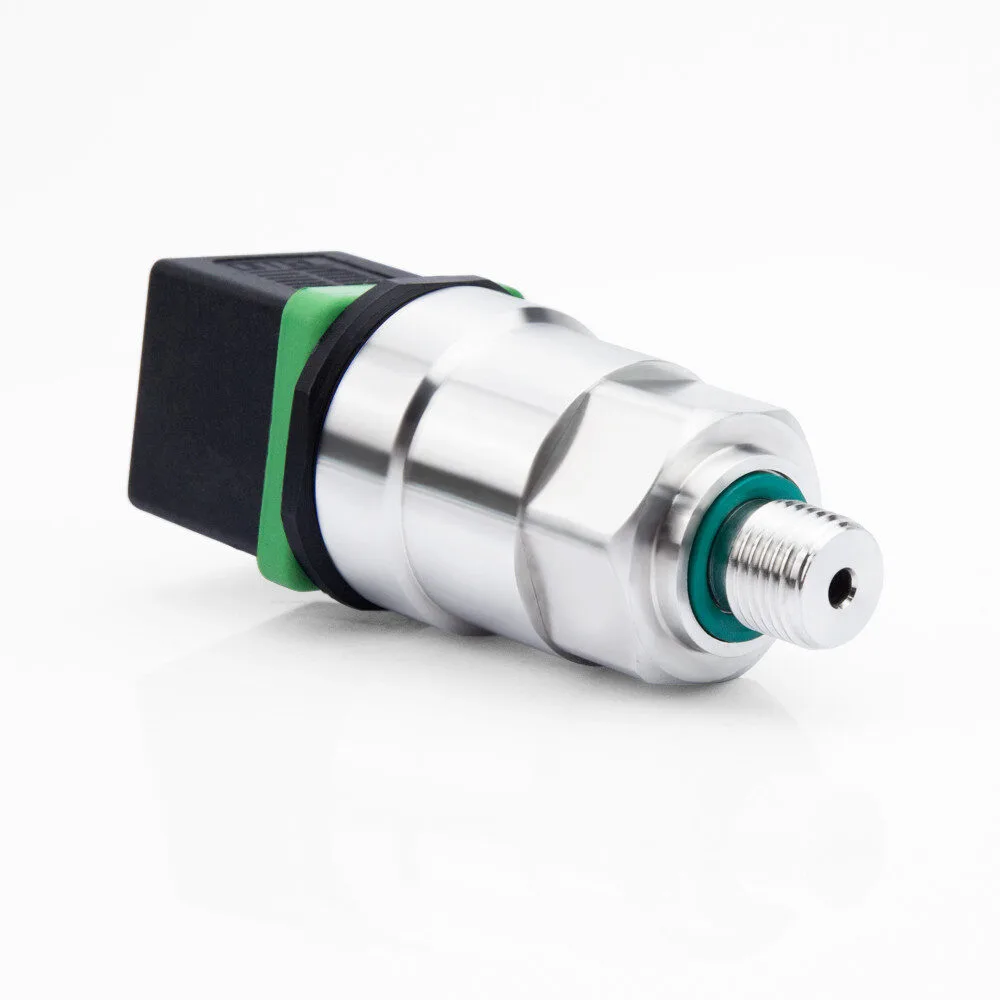

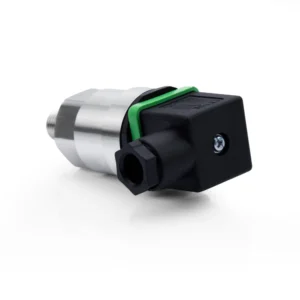

The XDB309 series of pressure transmitters leverage advanced international piezoresistive sensor technology to deliver precision and reliability in pressure measurement. These transmitters offer the flexibility of selecting various sensor cores, allowing customization to meet specific application demands. Housed in a robust all-stainless steel package and featuring multiple signal output options, they exhibit exceptional long-term stability and compatibility with a wide range of media and applications, making them a versatile choice for diverse industries and fields.
1. Robust stainless steel construction with a special structural design ensures durability and longevity.
2. Compact and small form factor enhances versatility and ease of installation.
3. Comprehensive surge voltage protection function safeguards against electrical fluctuations.
4. Affordable pricing and economical solutions provide cost-effective pressure measurement solutions.
5. OEM support and flexible customization options available to tailor the transmitter to specific requirements.
1. Intelligent IoT constant pressure water supply systems.
2. Engineering machinery, industrial process control, and monitoring.
3. Energy and water treatment systems.
4. Steel, light industry, and environmental protection applications.
5. Medical and agricultural machinery, along with testing equipment.
|
Pressure range |
-1~0~600 bar |
Long-term stability |
≤±0.2% FS/year |
|
Accuracy |
|
Response time |
≤3ms |
|
Input voltage |
|
Overload pressure |
150% FS |
|
Output signal |
|
Burst pressure |
300% FS |
| Thread | G1/2, G1/4 |
Cycle life |
500,000 times |
|
Electrical connector |
Hirschmann DIN43650A |
Housing material |
304 stainless steel |
|
Operating temperature |
-40 ~ 105 ℃ | ||
|
Compensation temperature |
-20 ~ 80 ℃ |
Protection class |
IP65 |
|
Operating current |
≤3mA |
Explosion-proof class |
Exia II CT6 |
| Temperature drift (zero&sensitivity) | ≤±0.03%FS/ ℃ |
Weight |
≈0.25kg |
| Insulation resistance | >100 MΩ at 500V | ||
E.g. XDB309- 25M – 01 – 2 – A – G1 – W6 – b – 03 – Oil
|
1 |
Pressure range | 25M |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
|
2 |
Pressure type | 01 |
| 01(Gauge) 02(Absolute) | ||
|
3 |
Supply voltage | 2 |
| 0(5VCD) 1(12VCD) 2(9~36(24)VCD) 3(3.3VCD) X(Others on request) | ||
|
4 |
Output signal | A |
| A(4-20mA) B(0-5V) C(0.5-4.5V) D(0-10V) E(0.4-2.4V) F(1-5V) G(I2C) X(Others on request) | ||
|
5 |
Pressure connection | G1 |
| G1(G1/4) X(Others on request) | ||
|
6 |
Electrical connection | W6 |
| W6(Hirschmann DIN43650A) X(Others on request) | ||
|
7 |
Accuracy | b |
| b(0.5% FS) c(1.0% FS) X(Others on request) | ||
|
8 |
Paired cable | 03 |
| 01(0.3m) 02(0.5m) 03(1m) X(Others on request) | ||
|
9 |
Pressure medium | Oil |
| X(Please note) | ||
Notes:
1) Please connect the pressure transmitter to the opposite connection for different electric connector.
If the pressure transmitters come with cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
