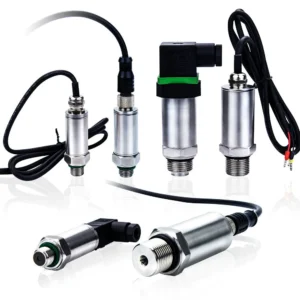

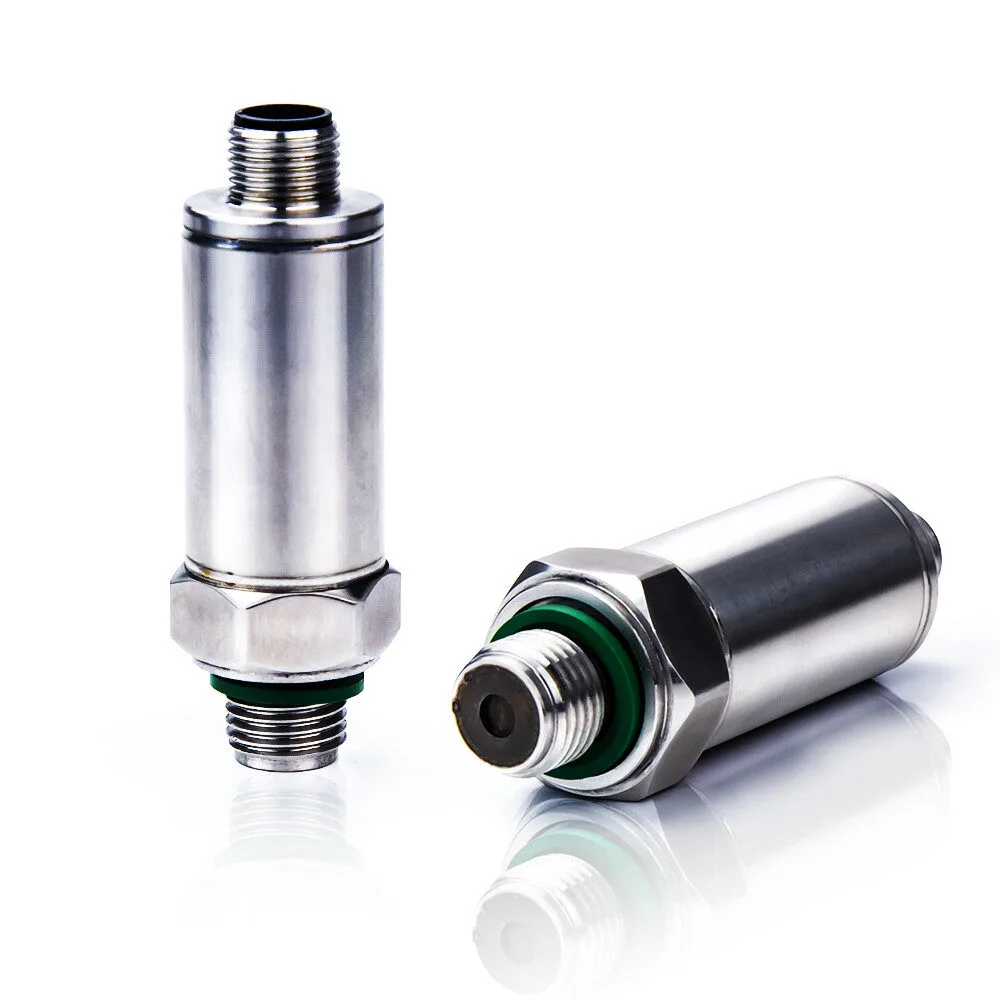

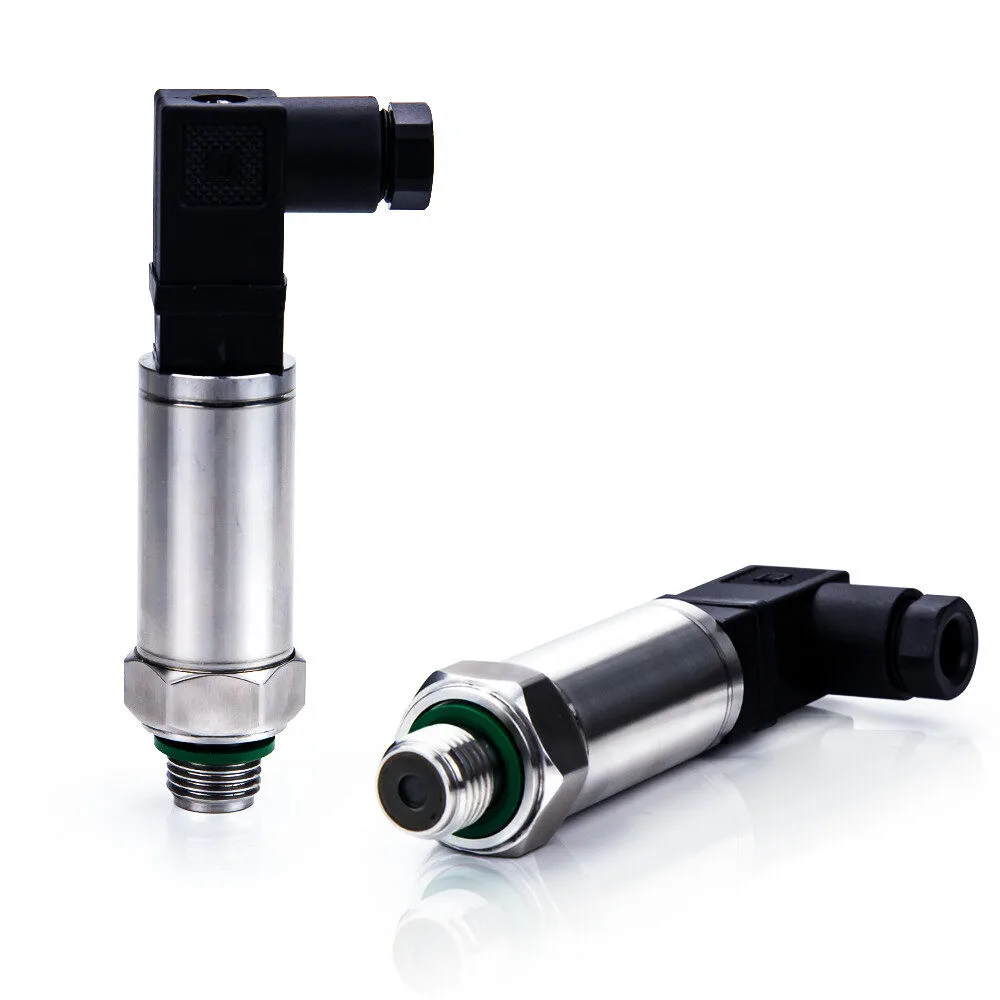

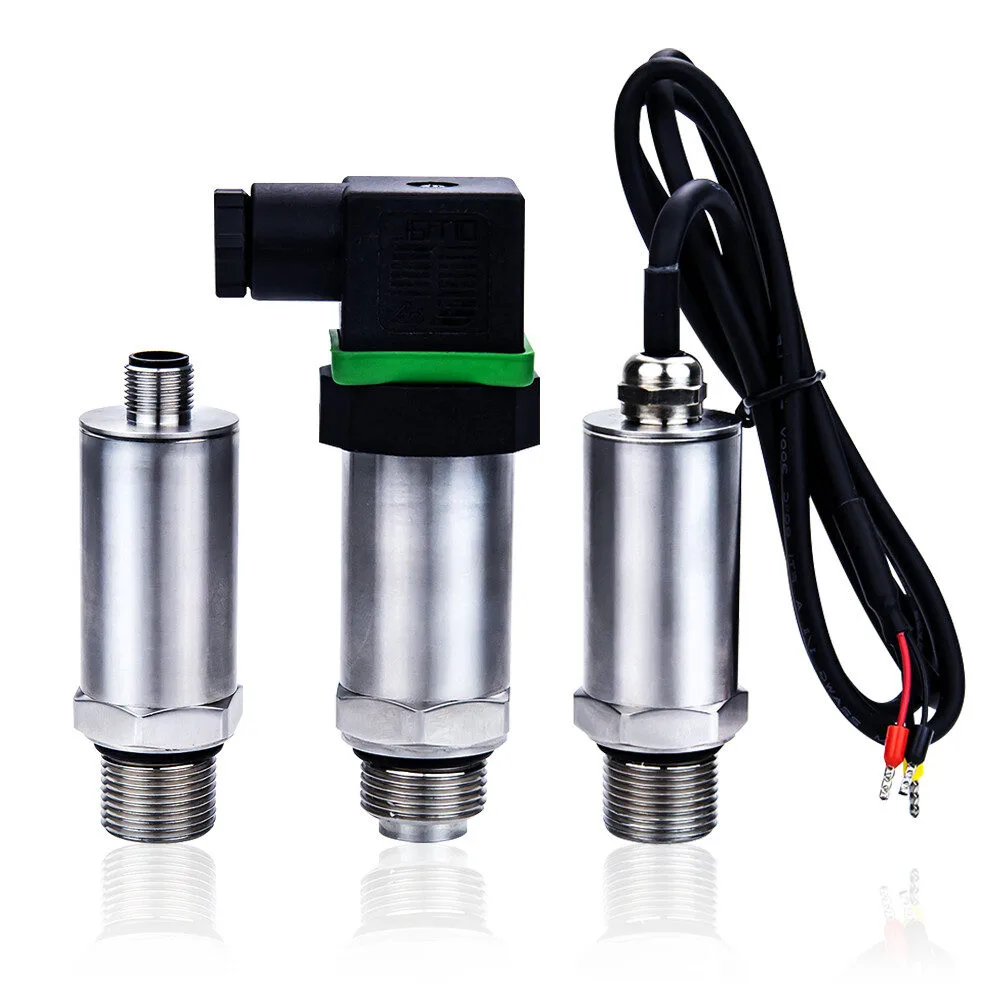

XDB327 series stainless steel pressure transmitter features an SS316L stainless steel sensor cell, offering exceptional corrosion, hightemperature, and oxidation resistance. With robust structural strength and versatile output signals, it is ideal for use acrossvarious industries, particularly in harsh environments.
1. Stainless steel sensor cell, excellent performance.
2. Corrosion Resistance: Capable of direct contact with corrosive media, eliminating the need for isolation.
3. Extreme Durability: Operates reliably at ultra-high temperatures with superior overload capacity.
4. Exceptional Value: High reliability, good stability, low cost, high-cost performance.
1. Heavy Machinery: cranes, excavators, tunneling machines, and piling equipment.
2. Petrochemical Sector: Essential for the reliable operation of petrochemical processing equipment.
3. Construction and Safety Equipment: Ideal for pump trucks, fire safety devices, and road construction machinery
4. Pressure Management Systems: Perfect for stabilizing pressure in air compressors and water production facilities.
| Pressure range | 0-2000 bar | Long-term stability | ≤±0.2% FS/year |
| Input voltage | DC 9~36 V, 5-12V, 3.3V | Response time | ≤3ms |
| Output signal | 4-20mA / 0-10V / I2C (Others) | Overload pressure | 150% FS |
| Thread | G1/4, M20*1.5 | Burst pressure | 300% FS |
| Insulation resistance | >100 MΩ at 500V | Cycle life | 500,000 times |

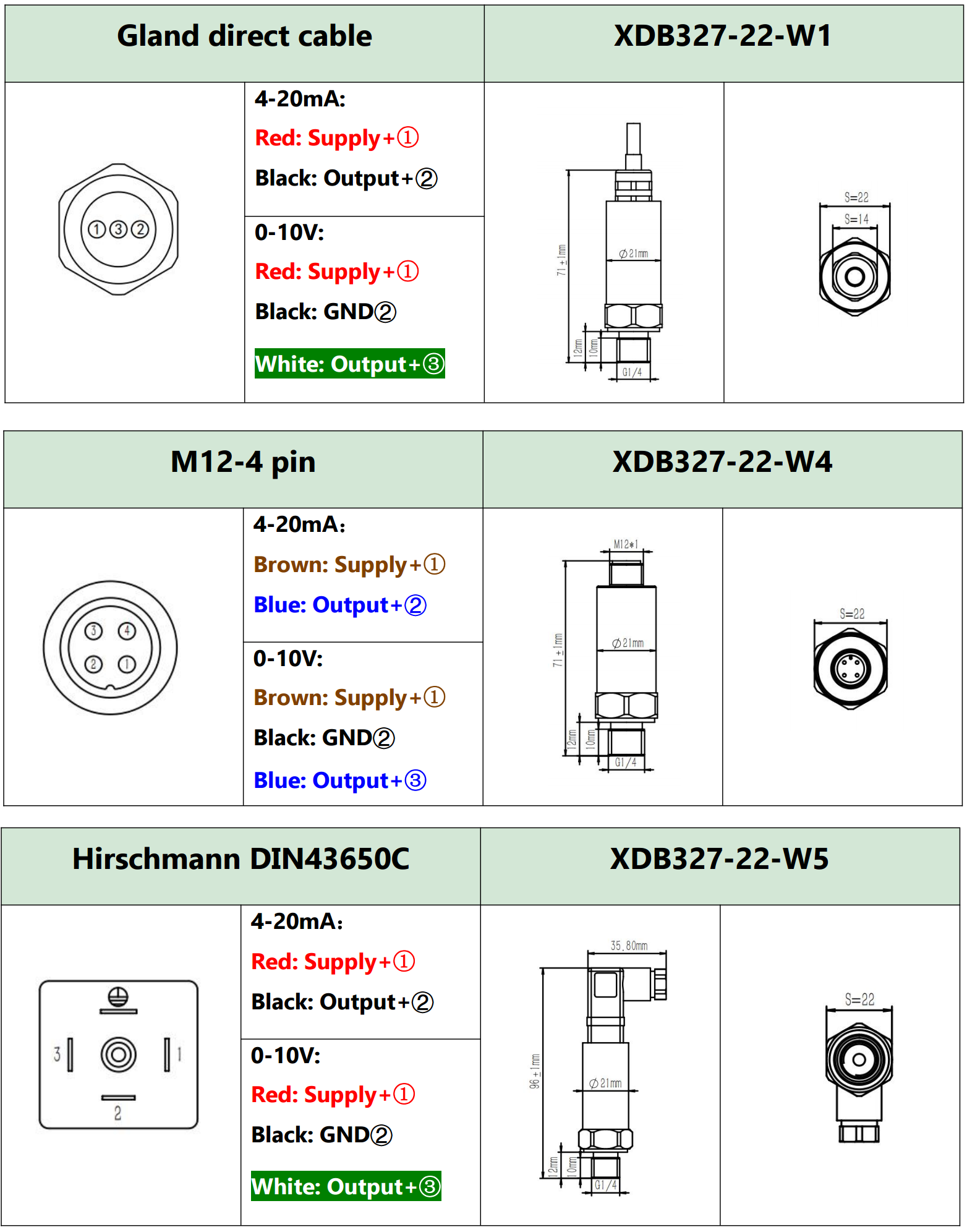

| Electrical connector | Hirschmann DIN43650C/Gland direct cable
/M12-4Pin/Hirschmann DIN43650A |
Housing material | 304 stainless steel |
| Operating temperature |
-40 ~ 105 ℃ | ||
| Compensation temperature |
-20 ~ 80 ℃ | Protection class | IP65/IP67 |
| Operating current | ≤3mA | Explosion-proof class |
Exia II CT6 |
| Temperature drift (zero&sensitivity) |
≤±0.03%FS/ ℃ | Accuracy | ±1.0% |

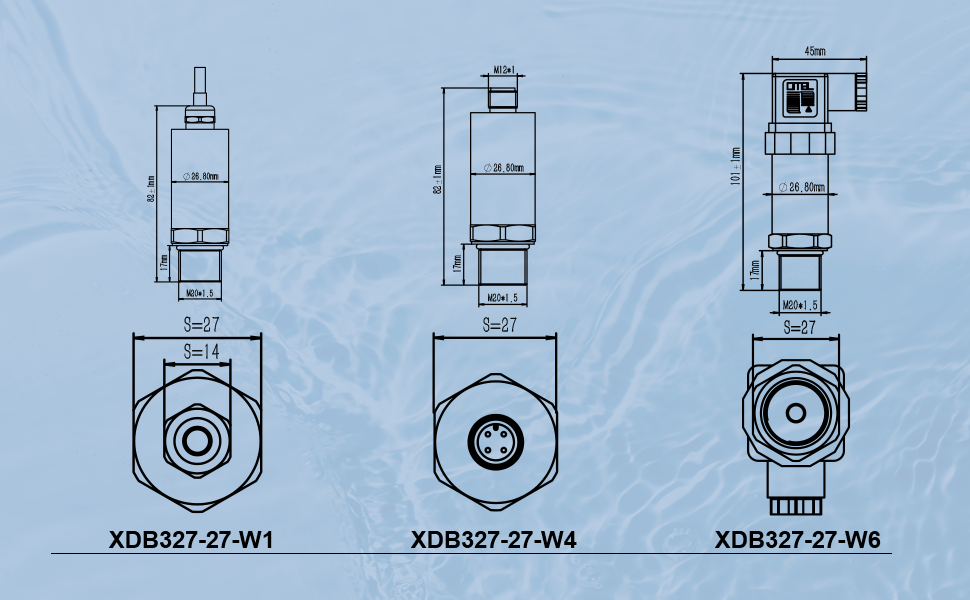

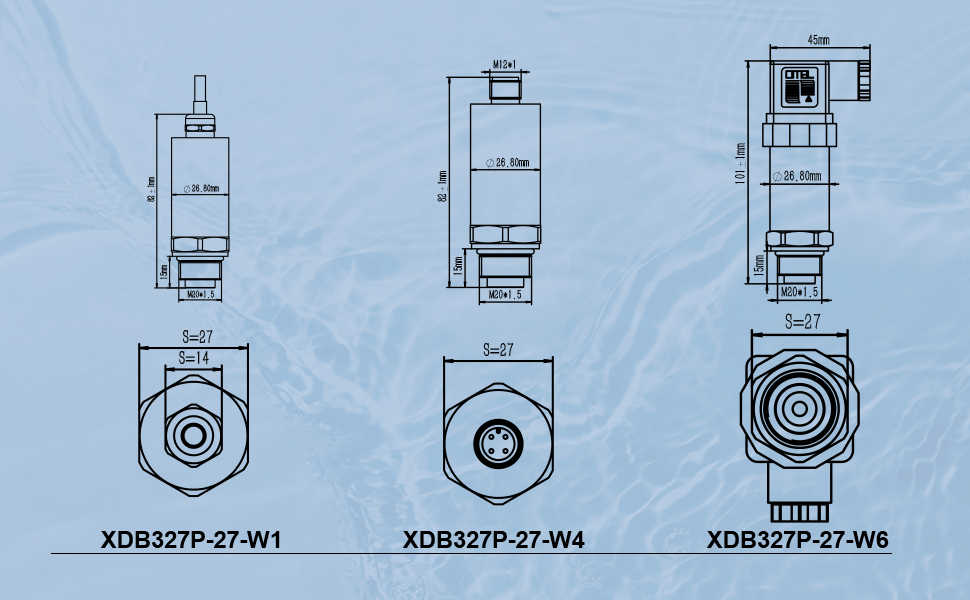

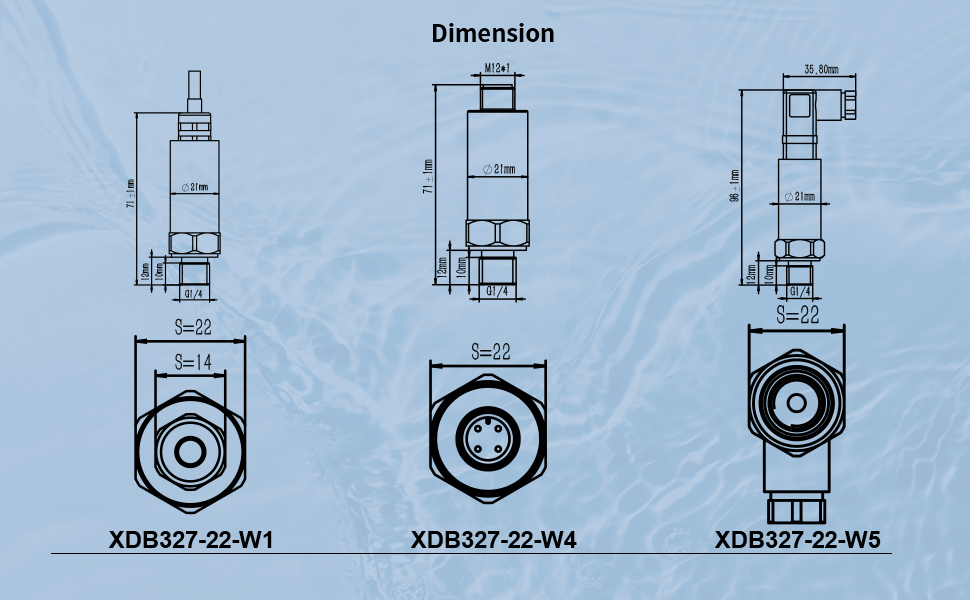

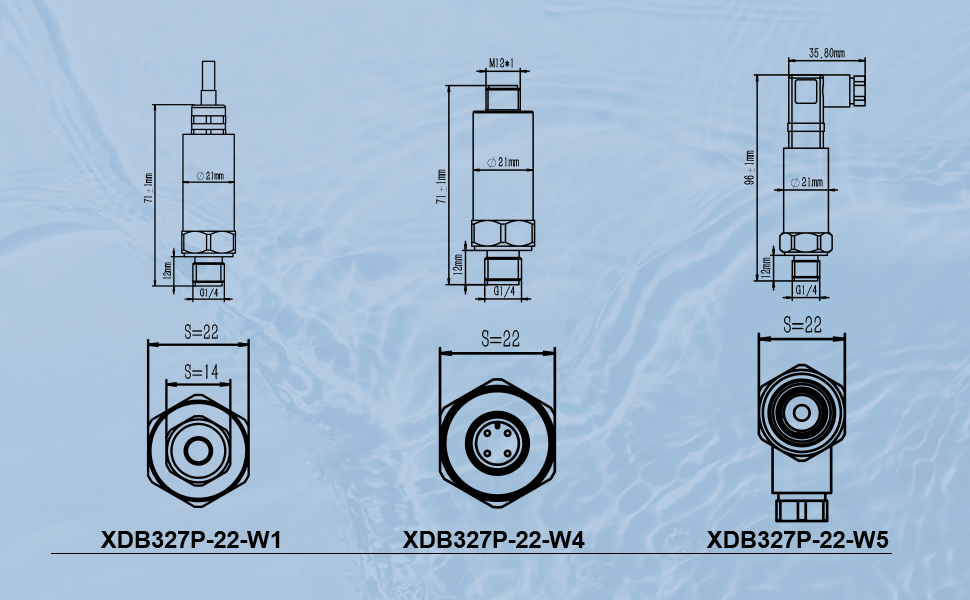

*Hexagon: 22mm or 27mm, e.g. XDB327-22-XX, XDB327-27-XX *P: flush diaphragm, e.g. XDB327P-XX-XX

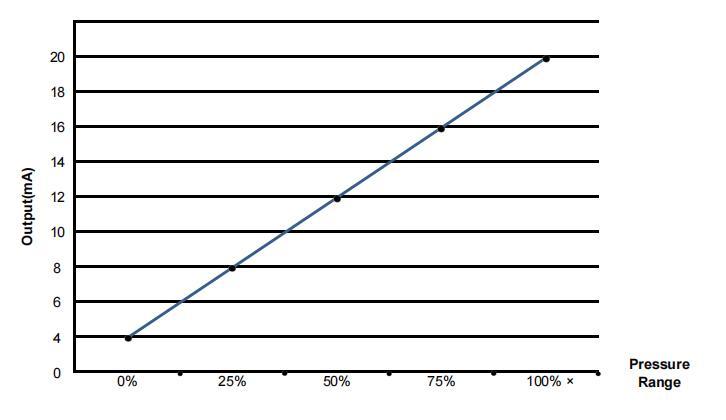

![XDB327 series Image[6]](https://j575.goodao.net/uploads/XDB327-series-Image6.jpg)

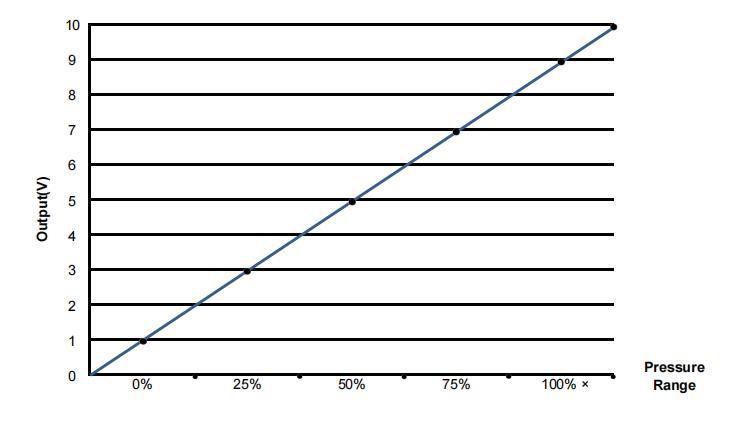

![XDB327 series Image[6]](https://j575.goodao.net/uploads/XDB327-series-Image61.jpg)

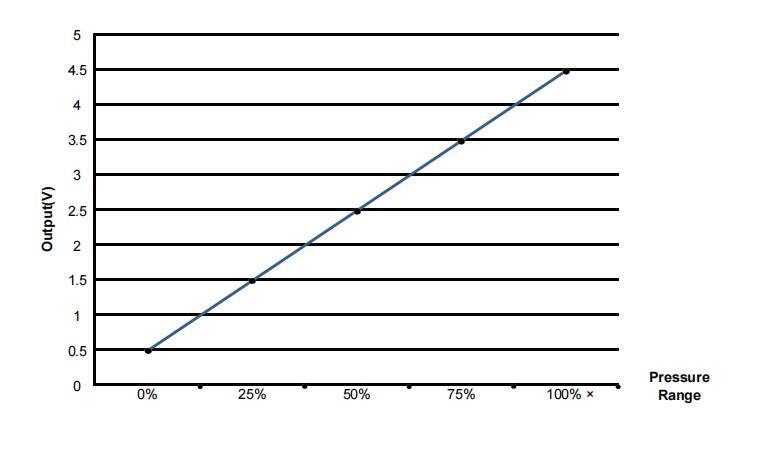

![XDB327 series Image[6]](https://j575.goodao.net/uploads/XDB327-series-Image62.jpg)
E .g. XD B 3 2 7 – 1 M – 0 1 – 2 – A – G 1 – W5 – c – 0 3 – O i l
| 1 | Pressure range | 1M |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
| 2 | Pressure type | 01 |
| 01(Gauge) 02(Absolute) | ||
| 3 | Supply voltage | 2 |
| 0(5VDC) 1(12VDC) 2(9~36(24)VDC) 3(3.3VDC) X(Others on request) | ||
| 4 | Output signal | A |
| A(4-20mA) B(0-5V) C(0.5-4.5V) D(0-10V) E(0.4-2.4V) F(1-5V) G(I2C) X(Others on request) | ||
| 5 | Pressure connection | G1 |
| G1(G1/4) M1(M20*1.5) X(Others on request) | ||

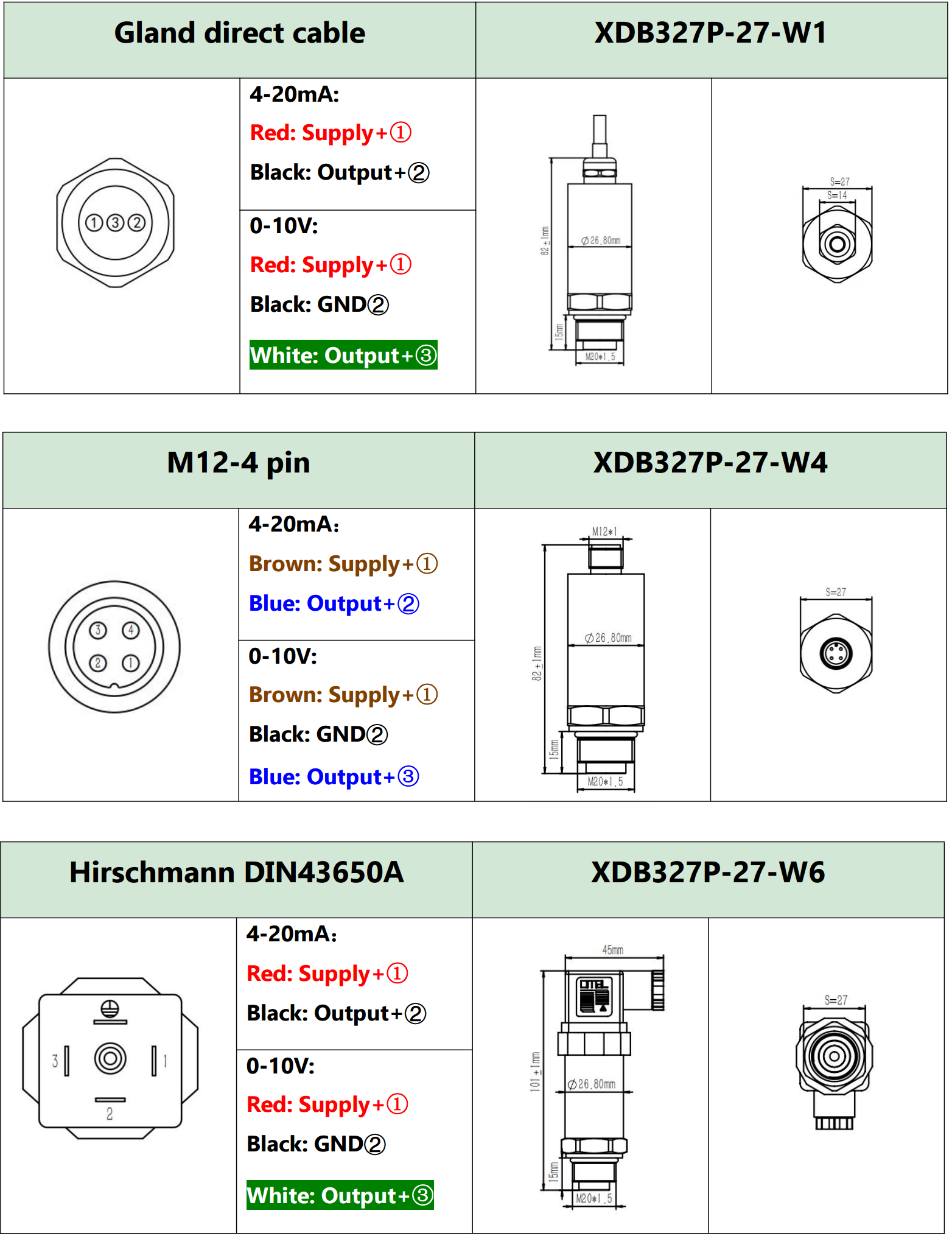

| 6 | Electrical connection | W5 |

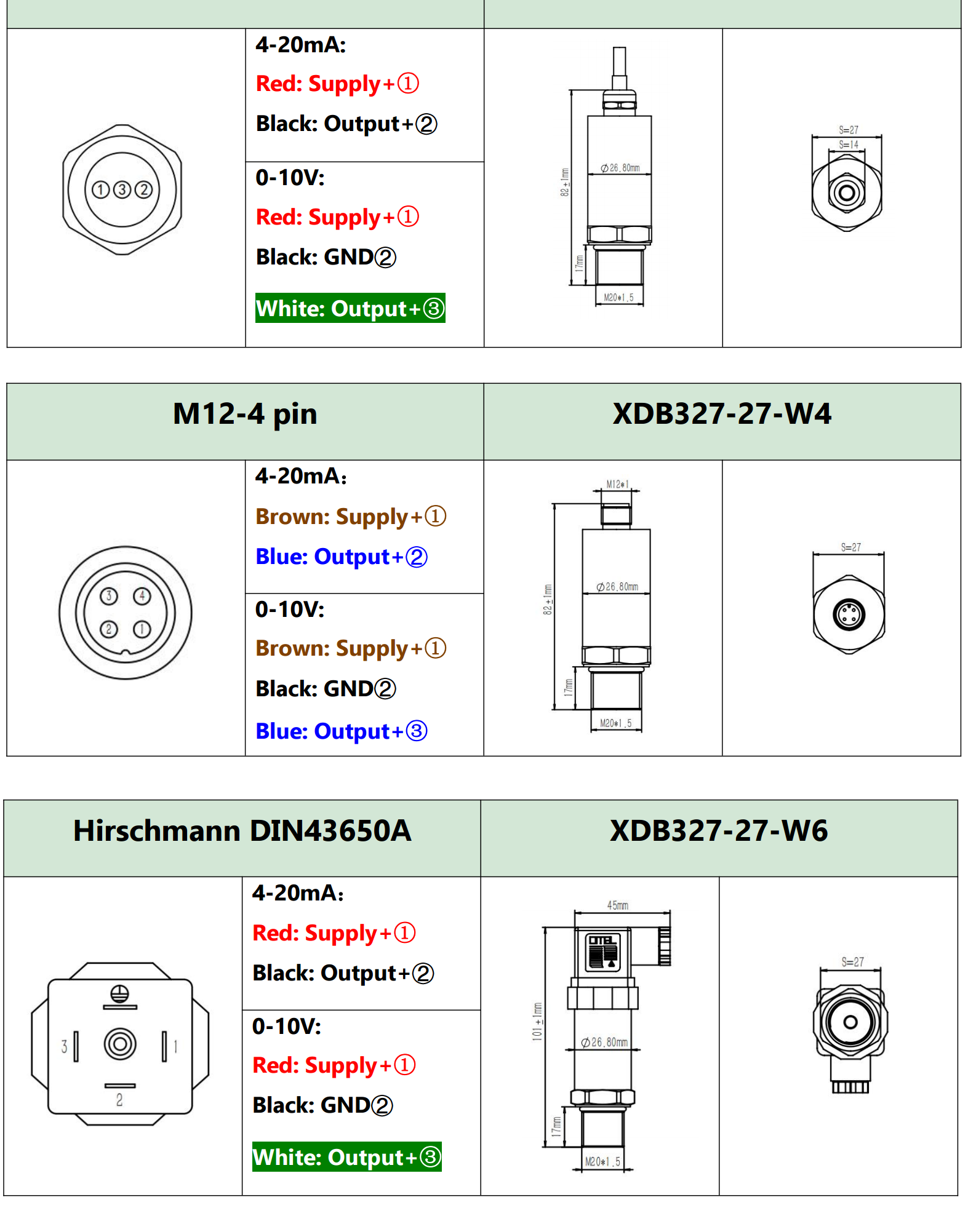

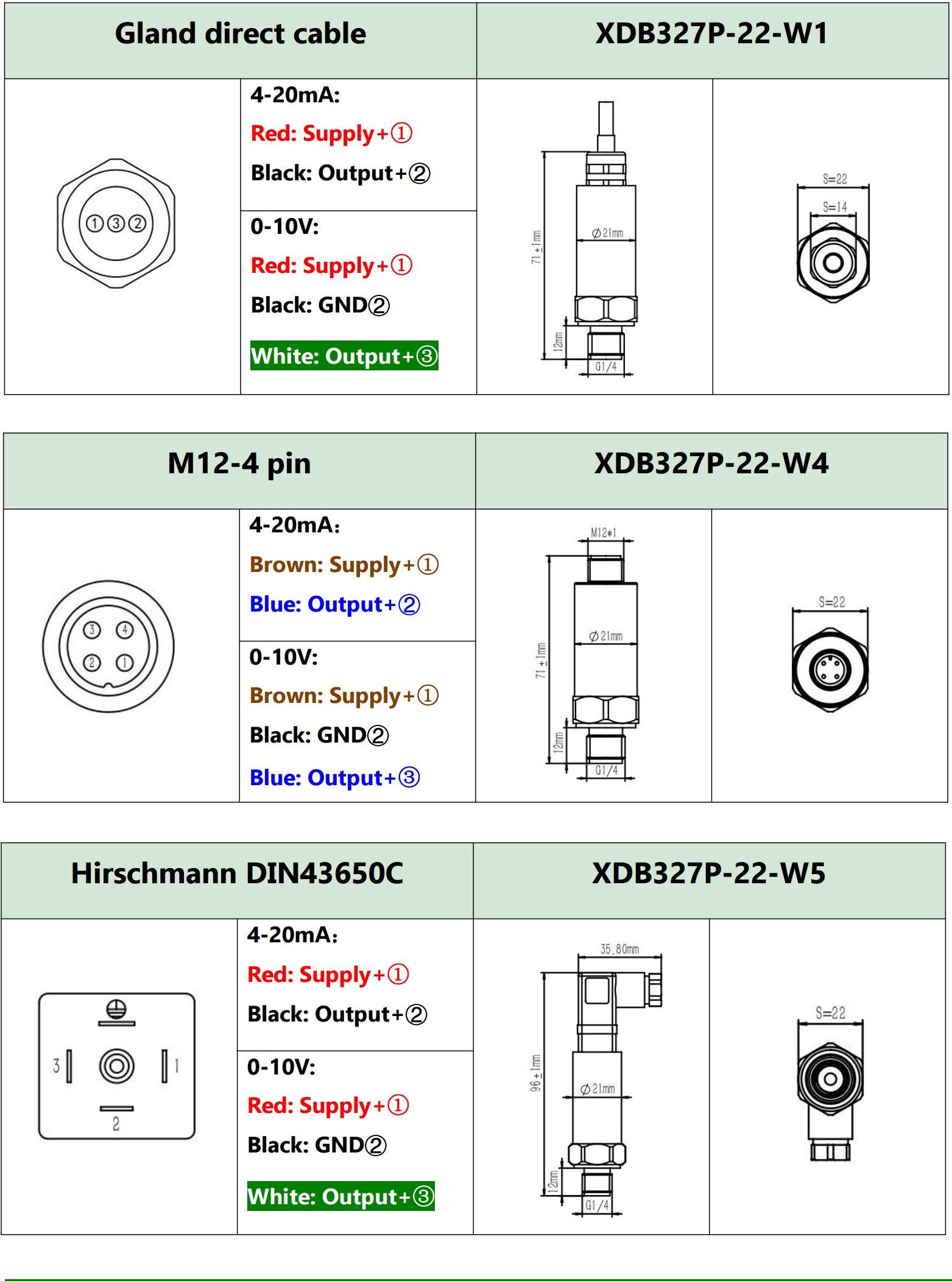

| W1(Gland direct cable) W4(M12-4 Pin) W5(Hirschmann DIN43650C) W6(Hirschmann DIN43650A) X(Others on request) |
||
| 7 | Accuracy | c |
| c(1.0% FS) X(Others on request) | ||
| 8 | Paired cable | 03 |
| 01(0.3m) 02(0.5m) 03(1m) X(Others on request) | ||
| 9 | Pressure medium | Oil |
| X(Please note) | ||
