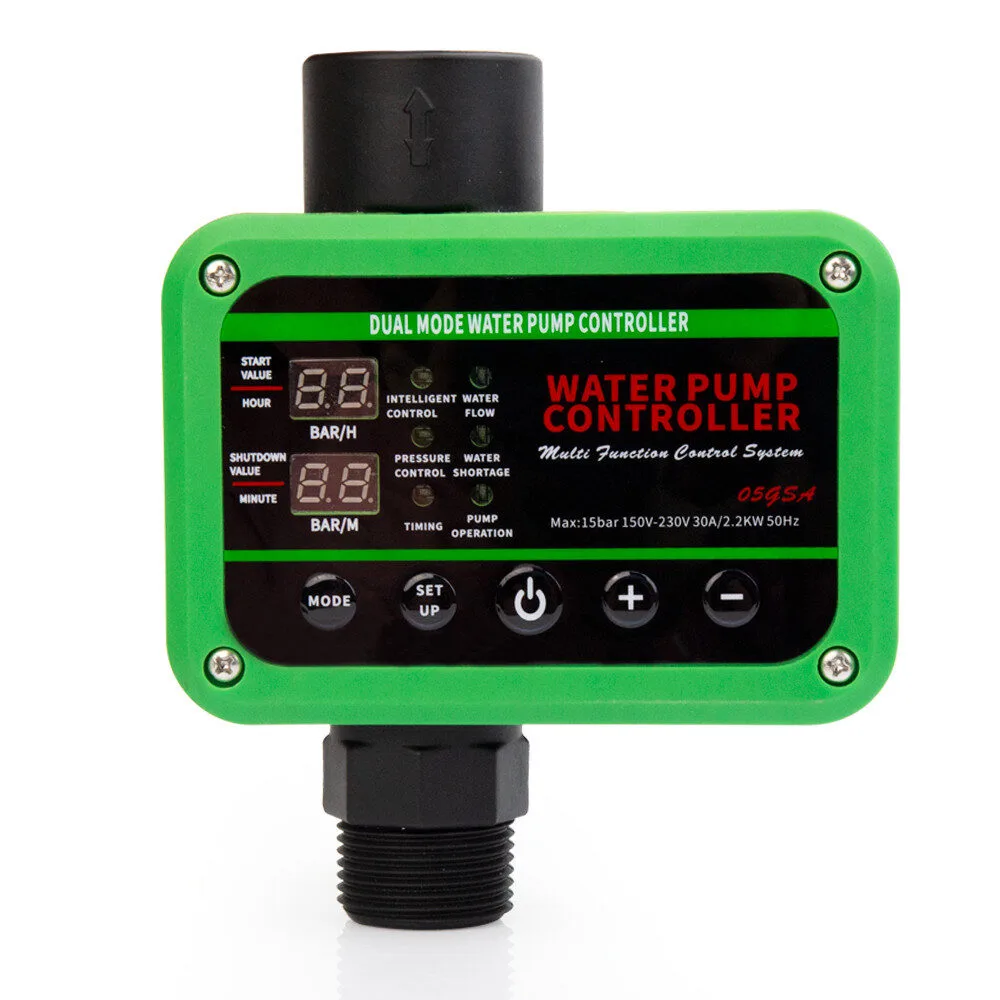

HD dual digital tube split screen display, start stop pressure value and real-time pressure value inside the tube at a glance. Full LED state display headlights, any state can be seen. Intelligent mode: Flow switch +pressure sensor dual control start and stop. Application range 0- 10 kgs. Vertical height range 0- 100 meters, no specific start pressure value, shut down value automatically generated after the faucet (pump head peak), start value is 70% of stop pressure. Pressure mode: Single sensor control, can set the start value and stop value. When the input start value is higher than the stop value, the system automatically corrects the pressure difference between the start value and stop value to 0.5 bar. (Optional downtime without delay).

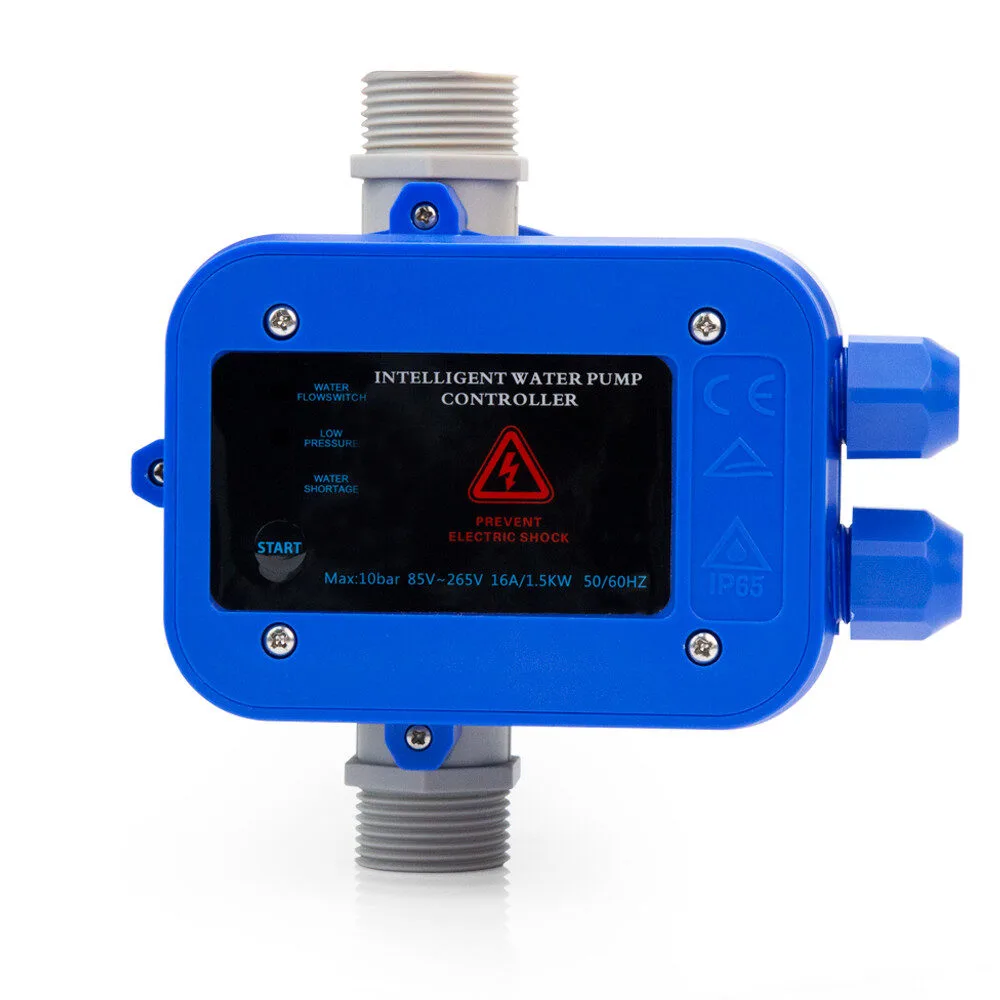

1.Full LED display, flow indicator/low pressure indicator/water shortage indicator. 2.Flow control mode: Flow dual control start and stop, pressure switch start control. 3.Pressure control mode: pressure value control start and stop, long press the start button for 5 seconds to switch( water shortage indicator keeps on under pressure mode). 4.Water shortage protection: When there is little to no water at the inlet, the pressure in the tube is less than the starting value and there is no flow, it will enter the protection state of water shortage and shutdown after 8 seconds. 5.Anti-stuck function: If the pump is idle for 24 hours, it will run 5 seconds around in case the motor impeller seize up with rust. 6.Mounting angle: Unlimited, can be installed at all angles.

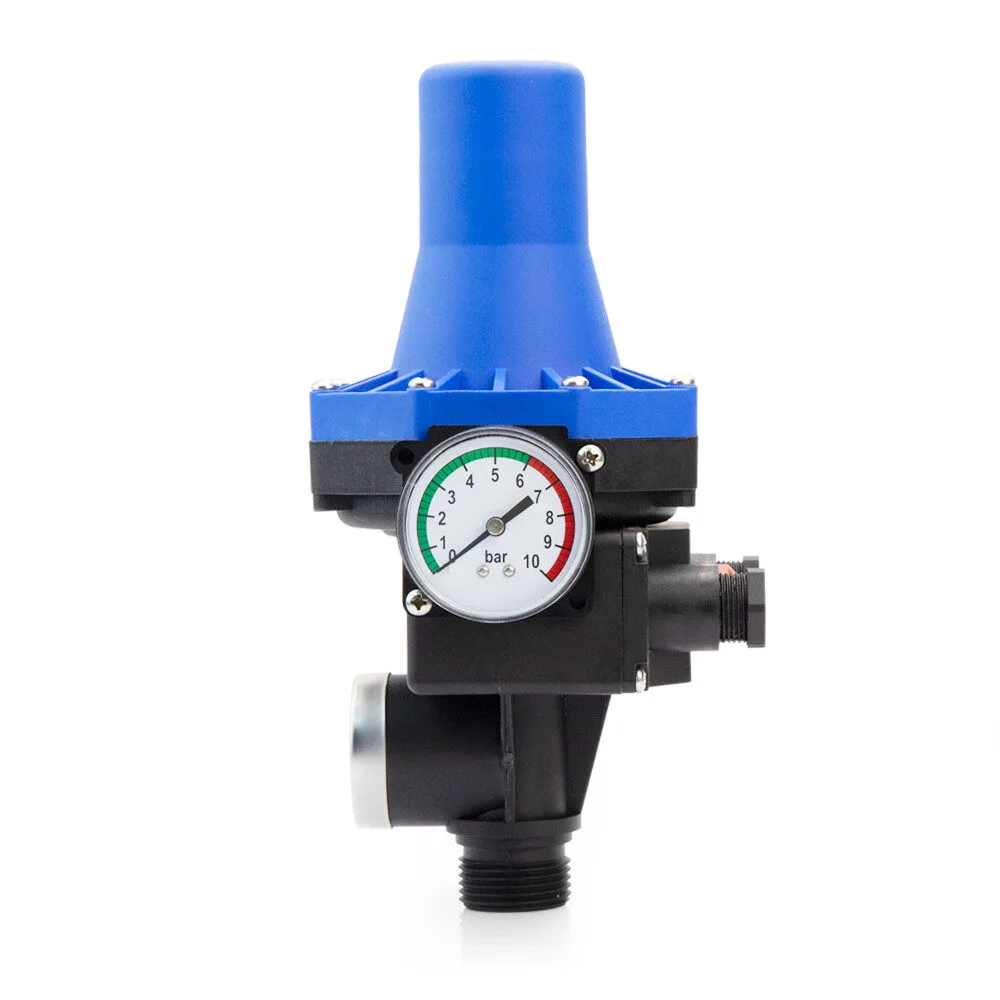

1.Pointer table, flow indicator/low pressure indicator/water shortage indicator. 2.Flow control mode: Flow dual control start and stop, pressure switch start control. 3.Pressure control mode: pressure value control start and stop, long press the start button for 5 seconds to switch( water shortage indicator keeps on under pressure mode). 4.Water shortage protection: When there is little to no water at the inlet, the pressure in the tube is less than the starting value and there is no flow, it will enter the protection state of water shortage and shutdown after 8 seconds. 5.Anti-stuck function: If the pump is idle for 24 hours, it will run 5 seconds around in case the motor impeller seize up with rust. 6.Mounting angle: Unlimited, can be installed at all angles.

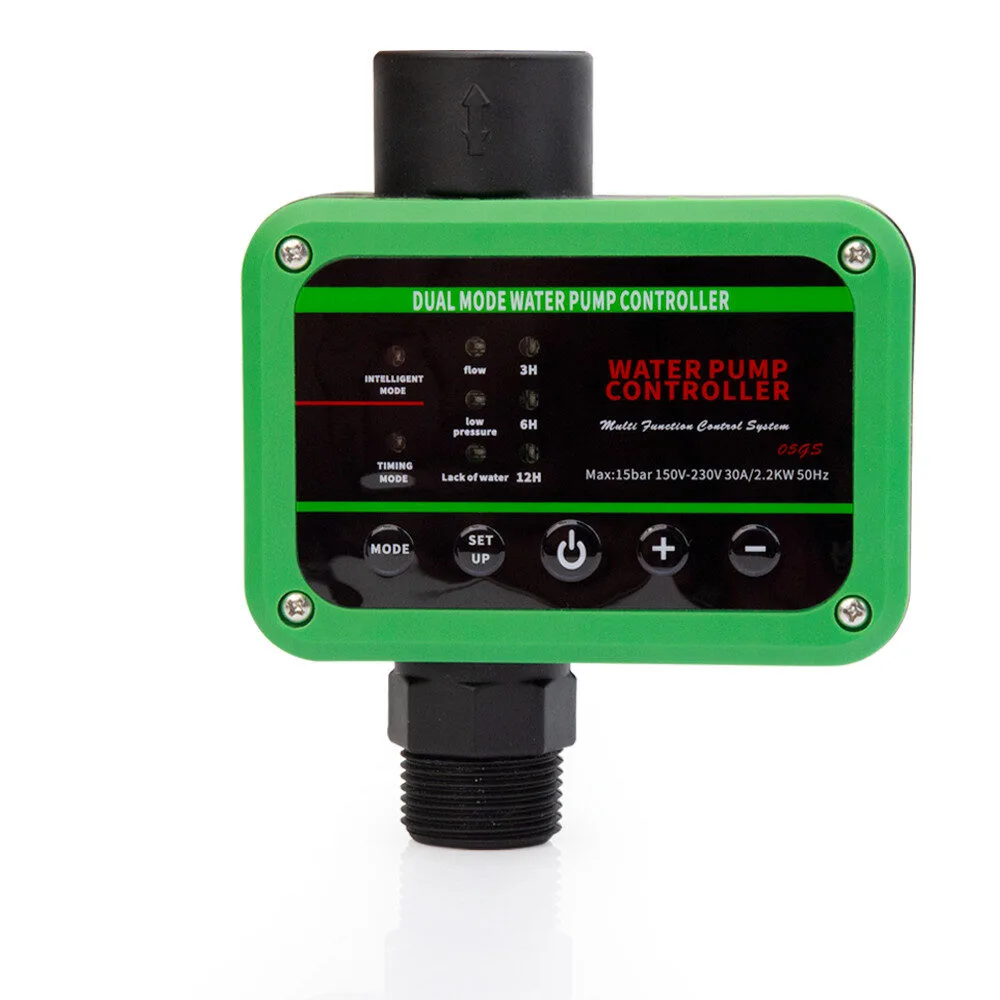

HD dual digital tube split screen display, start stop pressure value and real time pressure value inside the tube at a glance. You can see the full LED state display headlights and any state. It adopts single sensor control, so as to set the start value. Besides, the system can automatically corrects the pressure difference between the start value and stop value to 0.5 bar. (Optional downtime without delay).

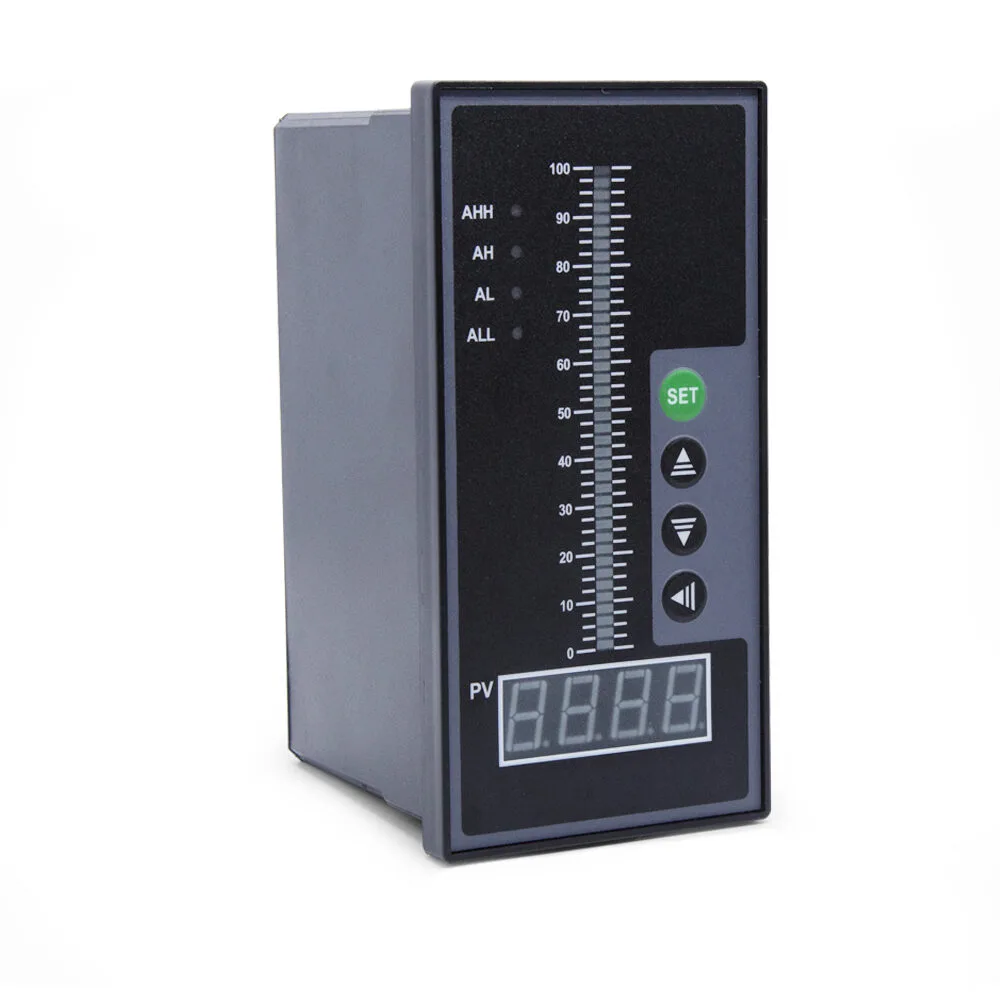

The T80 controller utilizes advanced micro-processing technology for intelligent control. It is designed to handle various physical quantities such as temperature, humidity, pressure, liquid level, instantaneous flow rate, speed, and the display and control of detection signals. The controller is capable of accurately measuring non-linear input signals through high-precision linear correction.
