Product

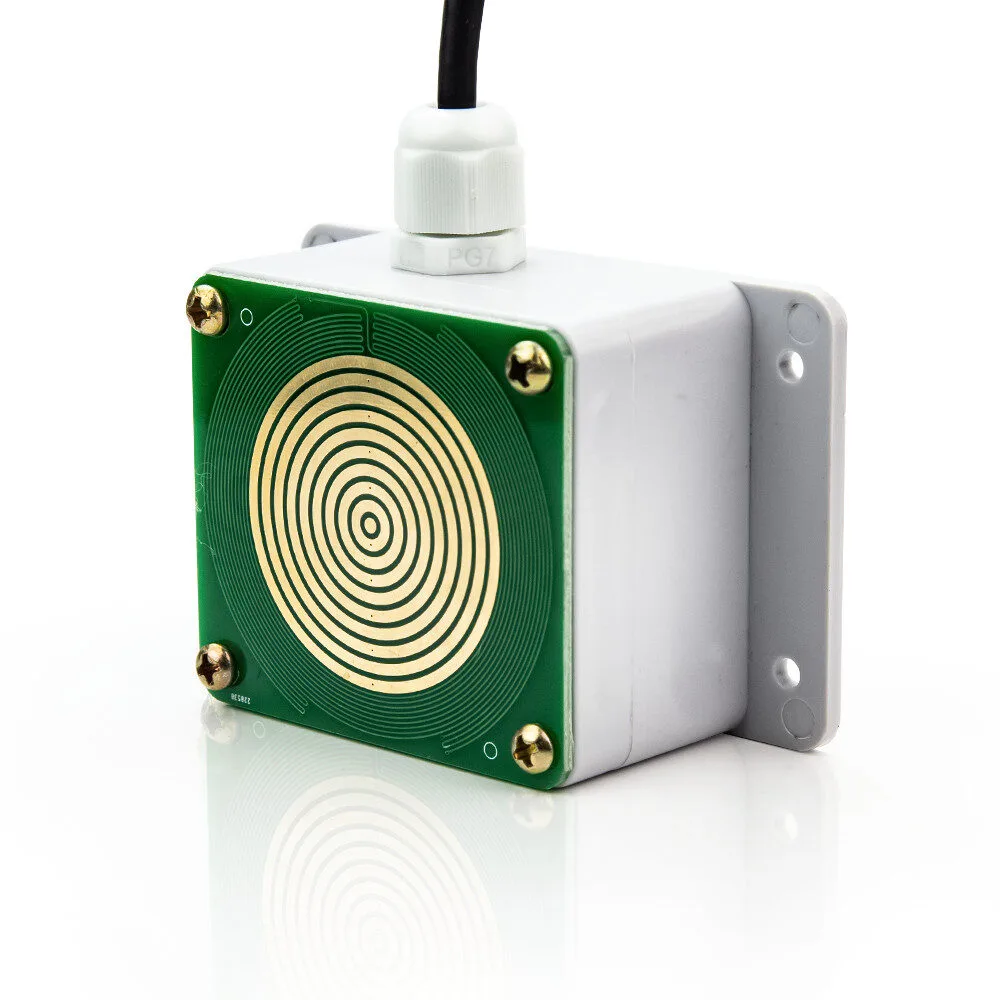

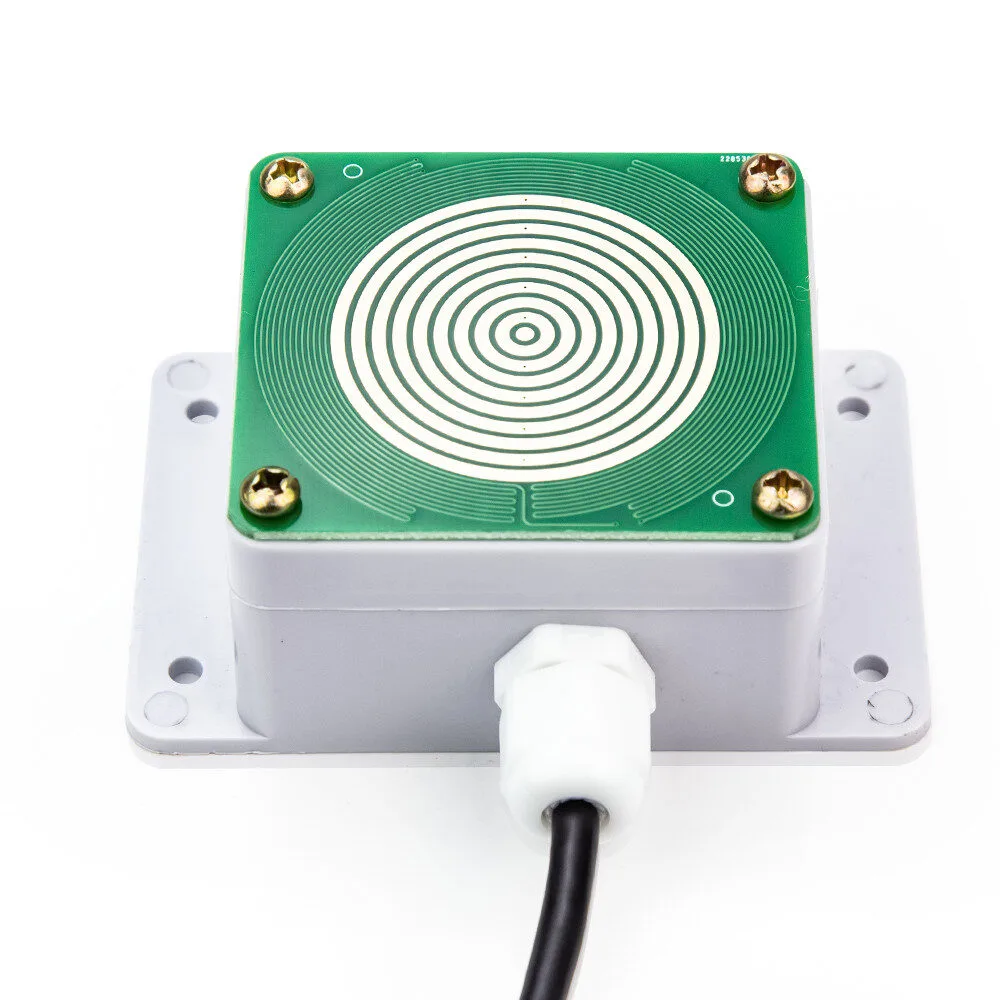

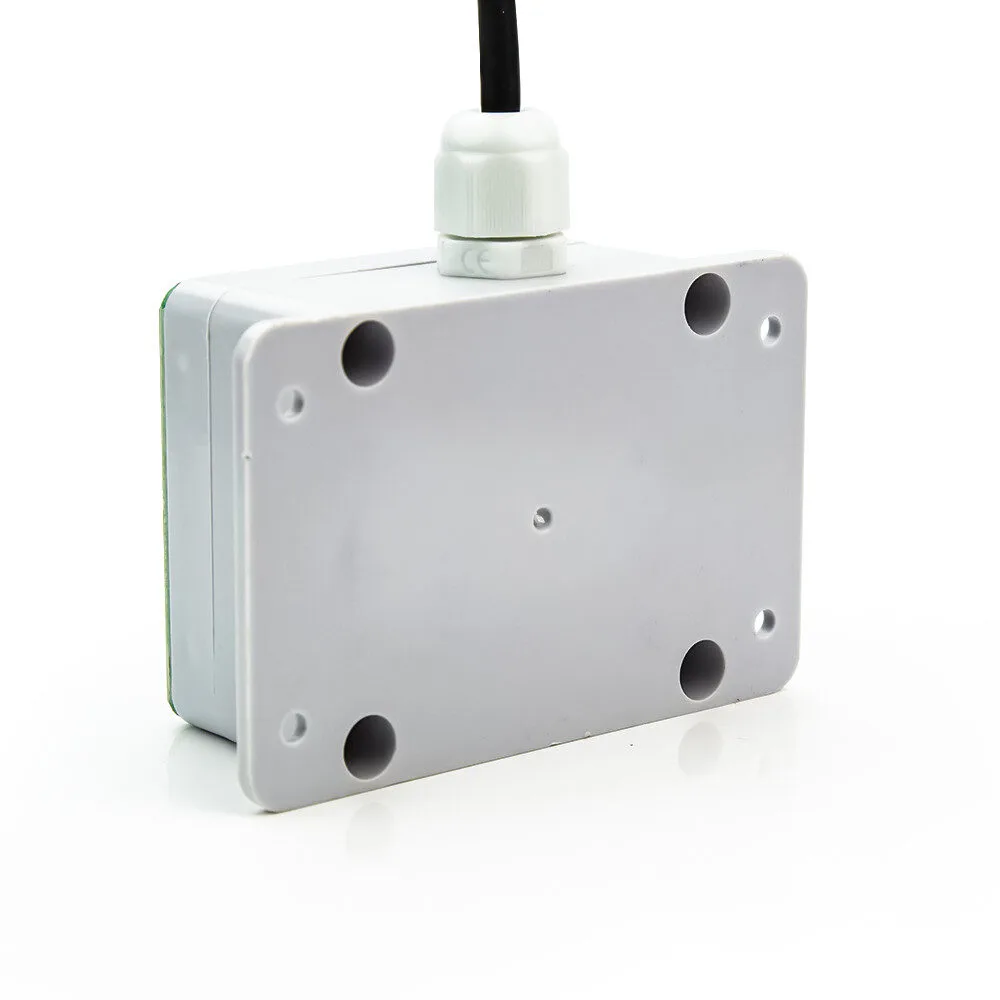

XDB1002-12 Series Rain and snow sensor

Short description

The rain and snow sensor uses the conductive properties of rainwater and adopts advanced detection circuits. The surface grid electrode senses the external rain and snow conditions and detects whether there is rain and snow. The internal imported intelligent microprocessor is sensitive and has high measurement accuracy. The built-in automatic heating device can eliminate the interference of rain and snow adhesion to ensure the normal operation of the system. After the product upgrade, the output signals are diverse. The wired output includes: analog signal (voltage, current), digital signal RS485, relay switch (default normally open), NPN; wireless output includes: 4G.

Features

1.Small size, easy installation, and more user-friendly bracket design
2.The gate is treated with immersion gold to enhance corrosion resistance
3.Reasonable structural design, long service life, good sealing, can reach IP67
4.Long transmission distance, strong anti-interference ability
5.Diverse output signals to meet different needs. (Optional)
6.Equipped with heating function to dry the surface. (Optional)

Typical applications

It is suitable for qualitative measurement of rain and snow (presence or absence), and can be widely used in meteorology, ocean, environment, airports, ports, industry and agriculture, transportation and other fields.

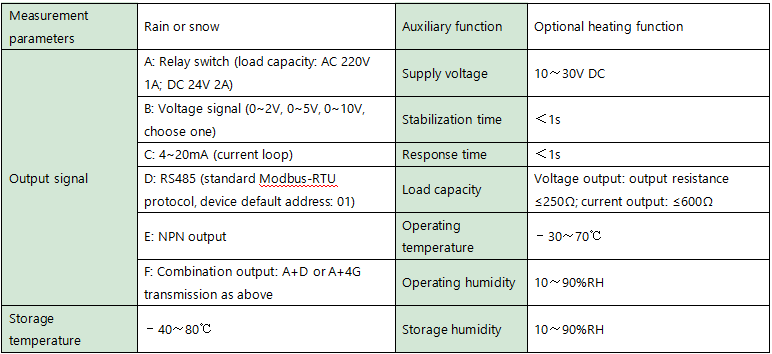

Parameters

屏幕截图 2024-10-15 163320

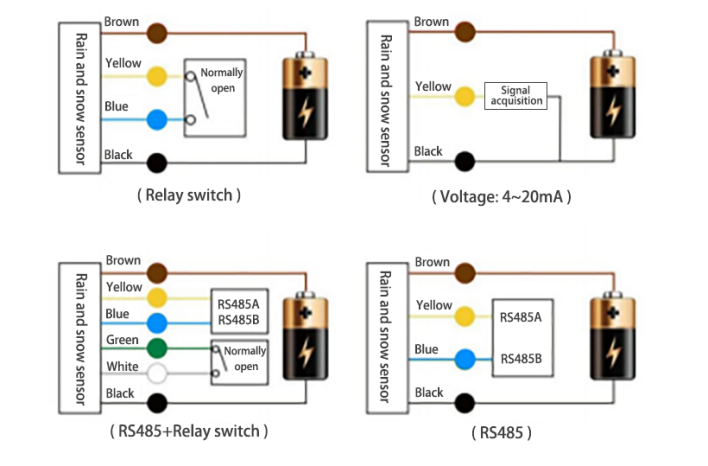

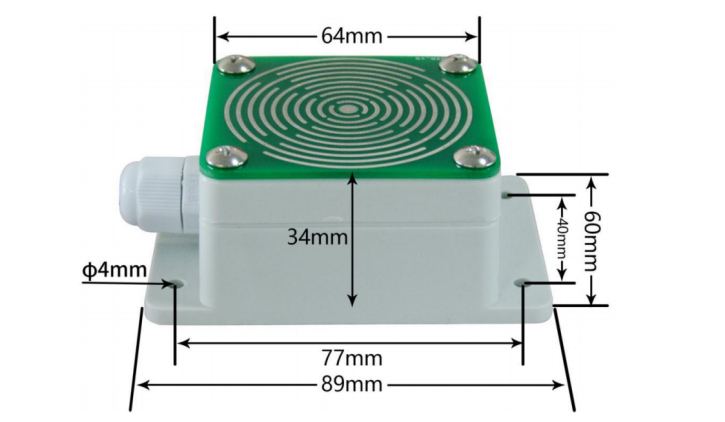

Dimensions(mm) & Wiring Guidance & Adjustment Methods
