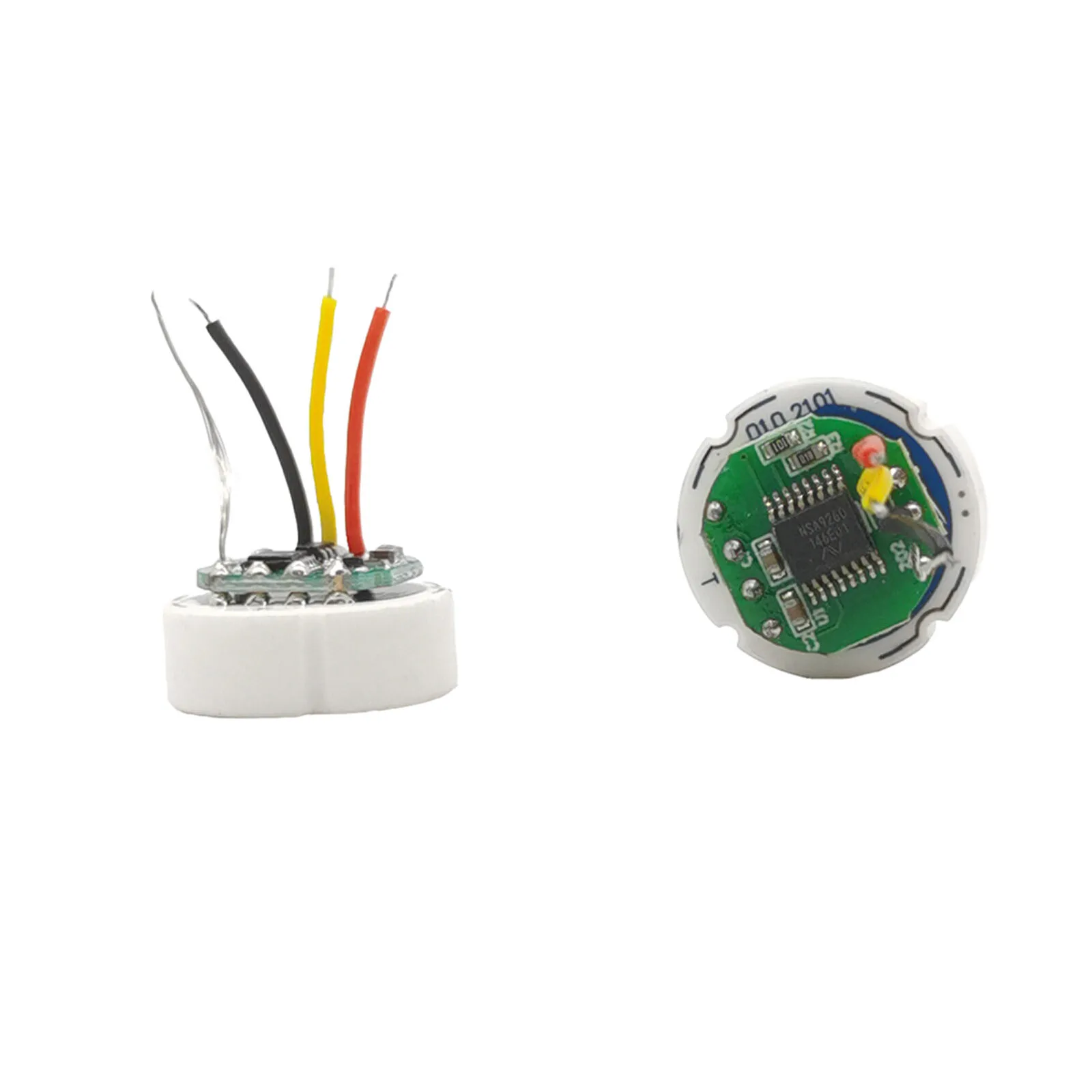

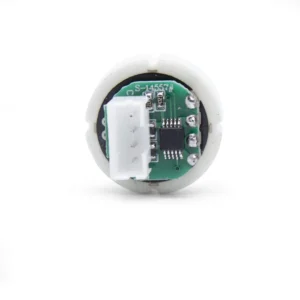

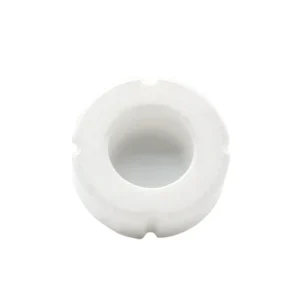

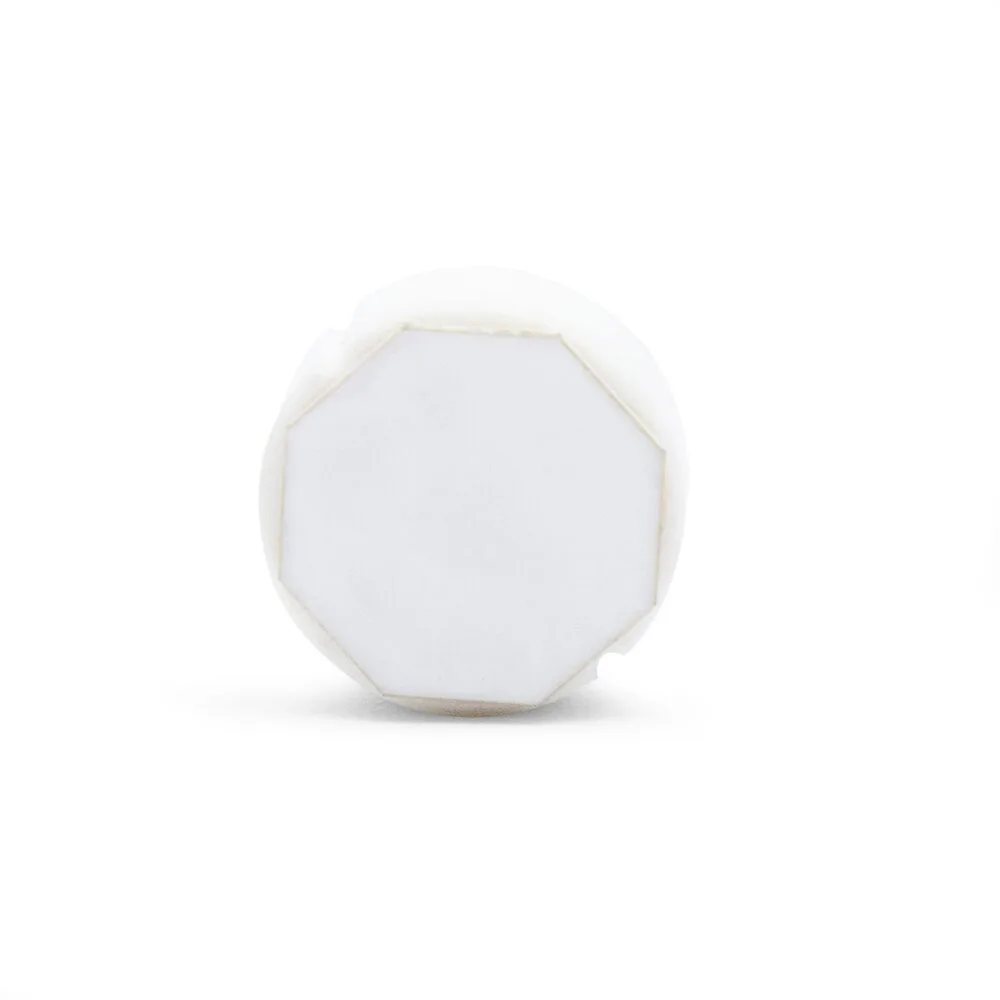

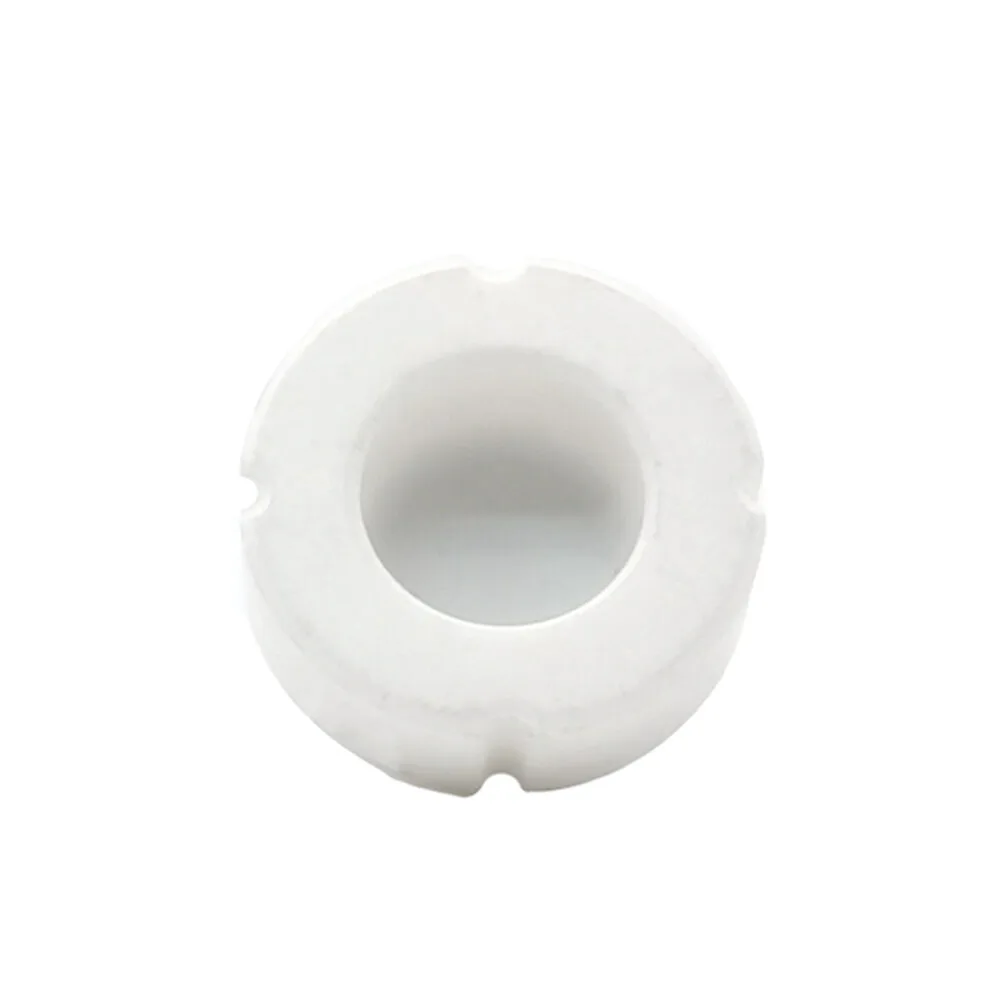

● Solid ceramic sensitive diaphragm.
● Small size, convenient to install and operate.
● Complete surge voltage protection function.
● Excellent corrosion and abrasion resistance.
● Provide OEM, flexible customization.
● Intelligent IoT, Energy and water treatment systems.
● Medical, agricultural machinery and testing equipment.
● Hydraulic, pneumatic control systems,refrigeration equipment.
|
Pressure range |
-1~600 bar |
Long-term stability |
≤±0.2% FS/year |
|
Accuracy |
±1% FS, Others on request |
Response time |
≤4ms |
|
Input voltage |
DC 5V,12V, 3.3V,9-36V |
Overload pressure |
150% FS |
|
Output signal |
0.5~4.5V, Others on request |
Burst pressure |
200-300% FS |
|
Operating temperature |
-40 ~ 105 ℃ |
Cycle life |
500,000 times |
|
Compensation temperature |
-20 ~ 80 ℃ |
Sensor material |
96% Al2O3 |
|
Operating current |
≤3mA |
Pressure medium |
Media compatible with ceramic materials |
| Temperature drift (zero&sensitivity) | ≤±0.03%FS/ ℃ |
Weight |
≈0.02 kg |
| Insulation resistance | >100 MΩ at 500V | ||

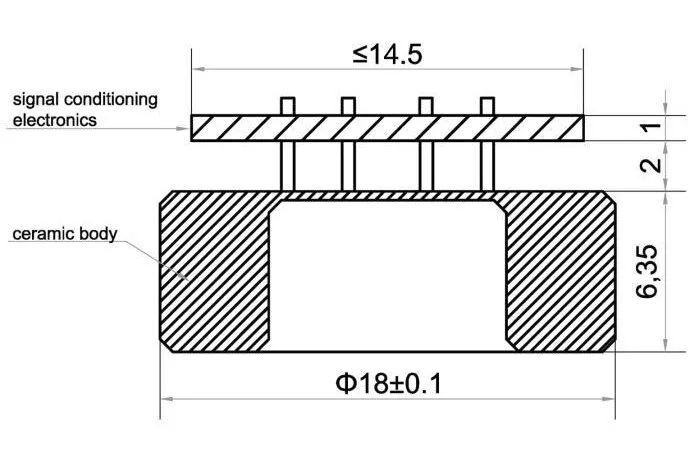

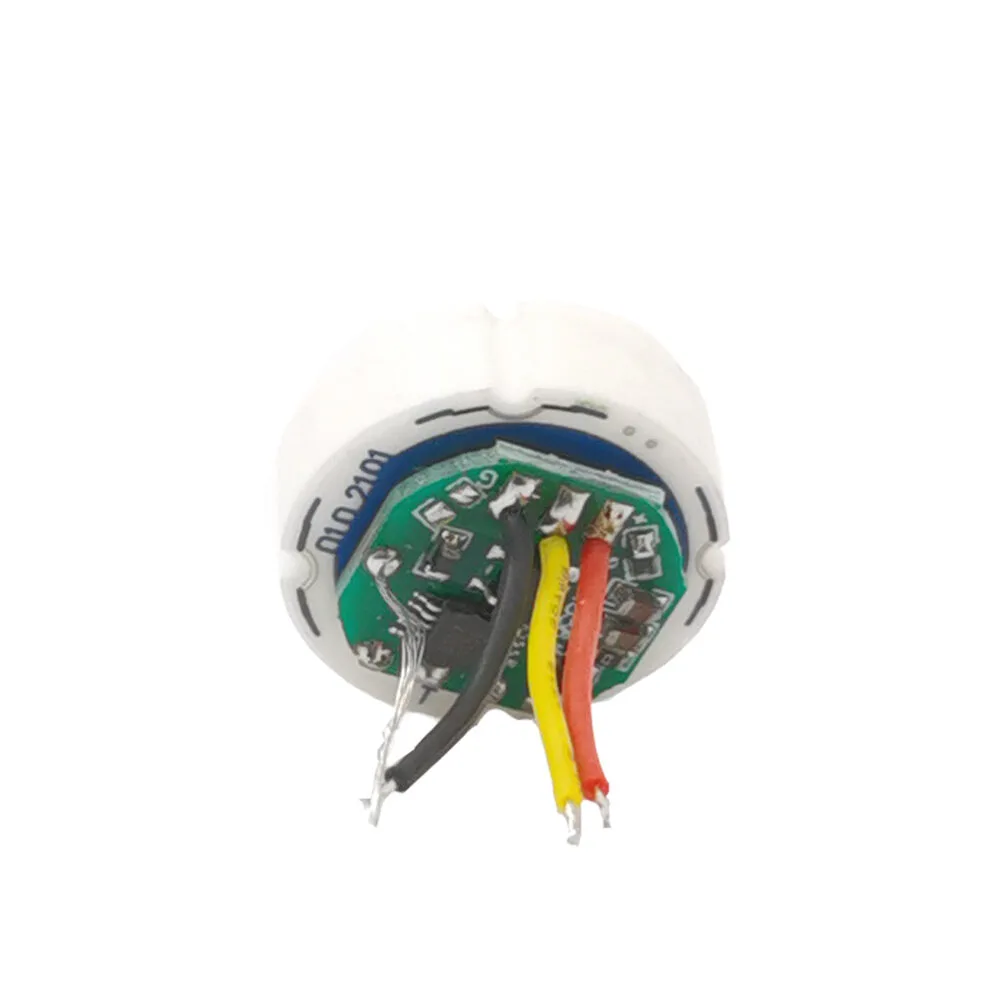

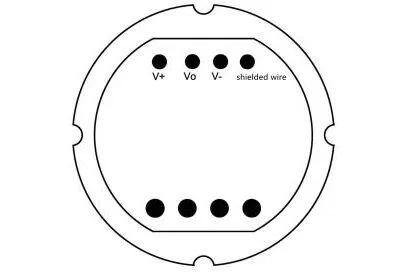

| Pin | Function | Color |
| V+ | Supply + | Red |
| V0 | GND | Black |
| – | Output | Yellow |
Since the sensor is sensitive to humidity, to ensure optimal performance, here are some recommendations for mounting:
Pre-mounting : Place the sensor in a drying oven at 85°C for at least 30 minutes to remove any moisture.
During mounting: Ensure that the circumstance humidity is kept below 50% during the mounting process.
Post-mounting: Take appropriate sealing measures to protect the sensor from moisture.
Please note that the module is a calibrated product, and errors may occur during the installation process. Before use, it is essential to minimize errors caused by external factors such as the installation structure and other accessories as.
1) Please connect the pressure transducers to the opposite connection for different electric connector. If the pressure transducers come with cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
E.g. XDB103- 10B – 01 – 0 – B – c – 01
|
1 |
Pressure range | 10B |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
|
2 |
Pressure type | 01 |
| 01(Gauge) 02(Absolute) | ||
|
3 |
Supply voltage | 0 |
| 0(5VCD) 1(12VCD) 2(9~36(24)VCD) 3(3.3VCD) X(Others on request) | ||
|
4 |
Output signal | B |
| A(0-5V) B(0.5-4.5V) C(0-10V) D(0.4-2.4V) E(1-5V) F(I2C) X(Others on request) | ||
|
5 |
Accuracy | c |
| c(1.0% FS) d(1.5% FS) X(Others on request) | ||
|
6 |
Direct lead wire/C3/C4 | 01 |
| 01(lead wire 100mm) 02(C3) 03(C4) X(Others on request) | ||
Notes:
1) Please connect the pressure transducers to the opposite connection for different electric connector.
If the pressure transducers come with cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
