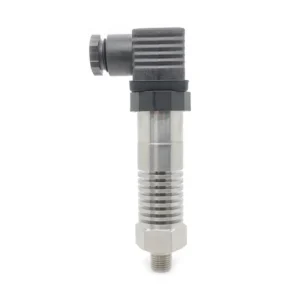

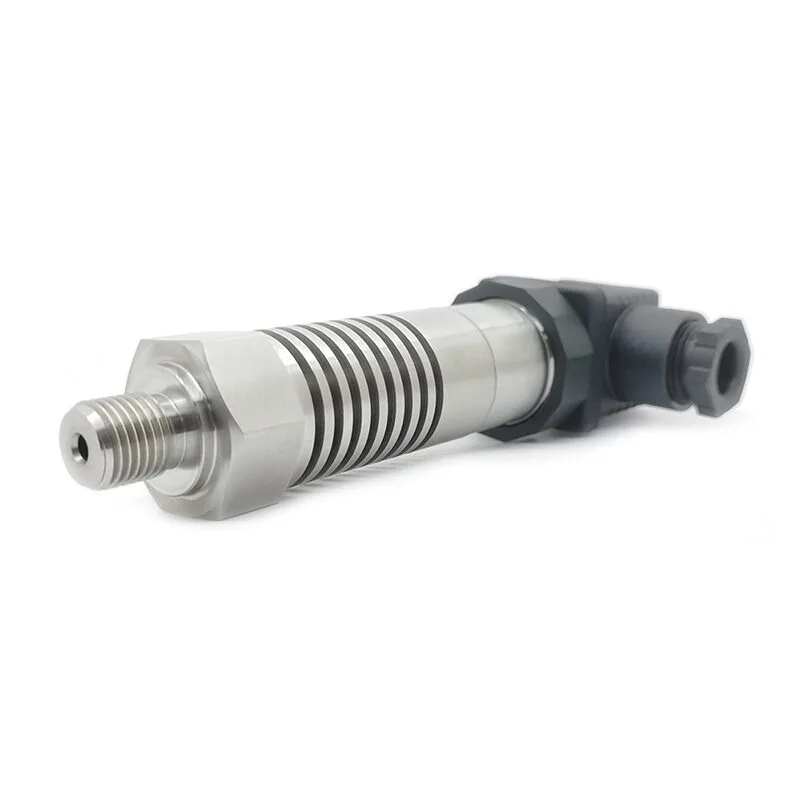

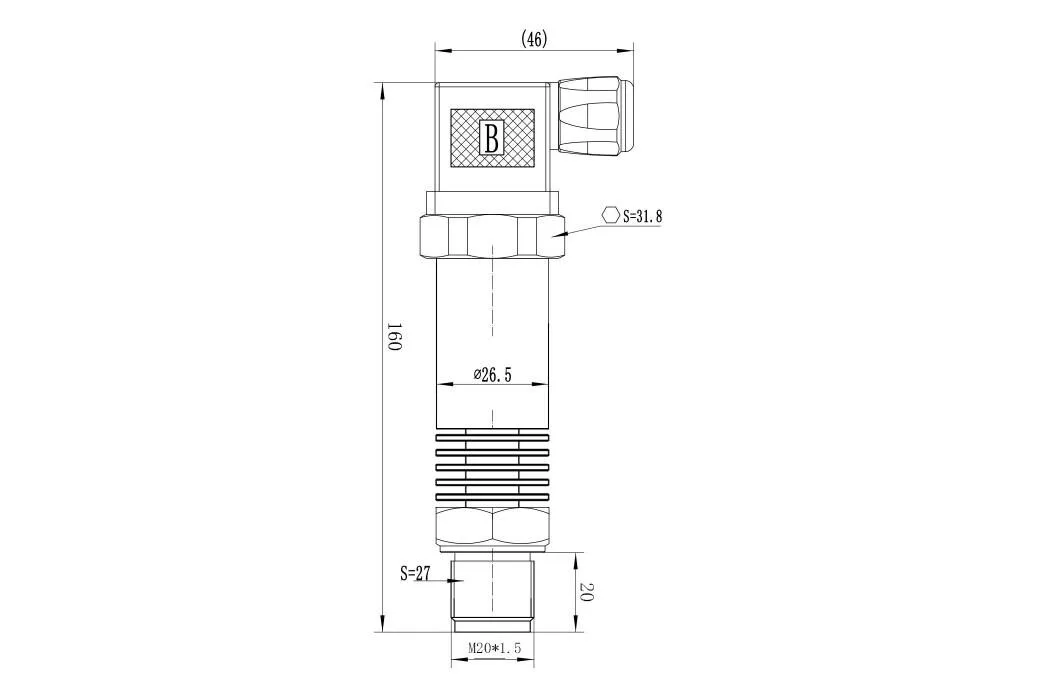

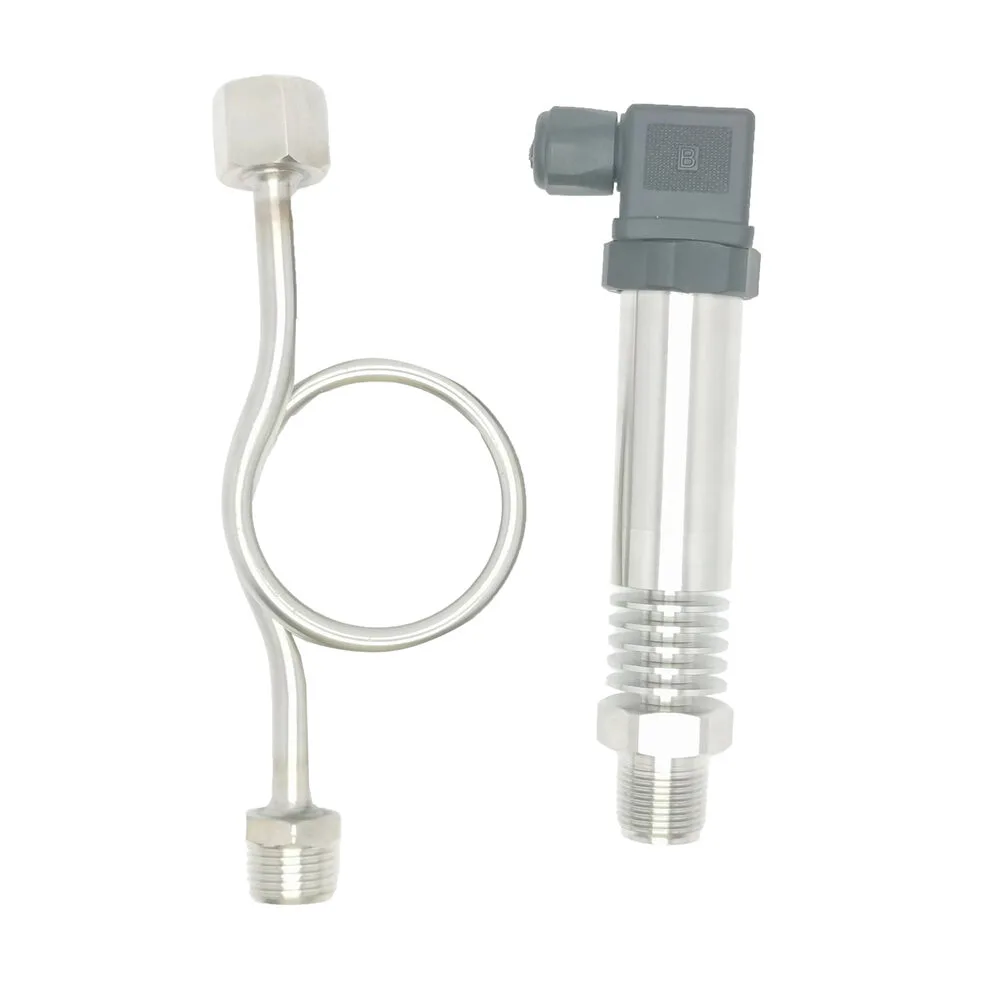

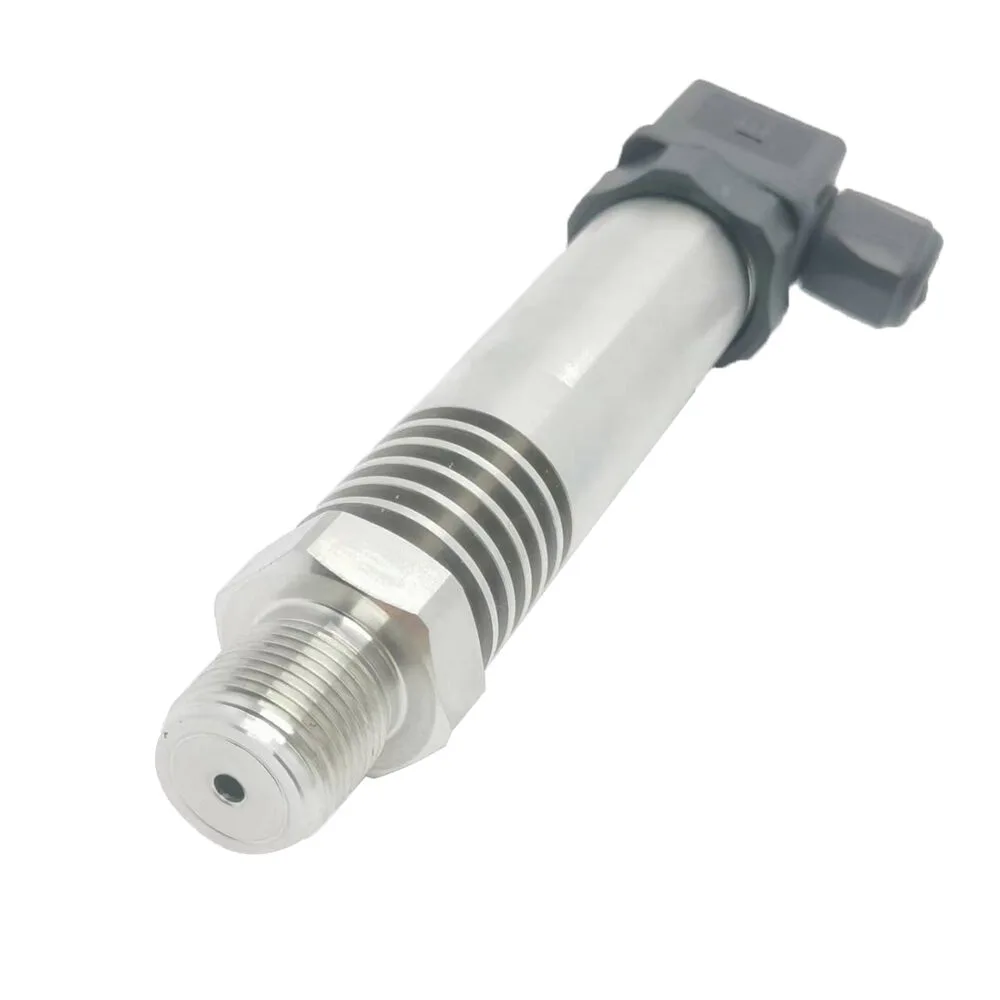

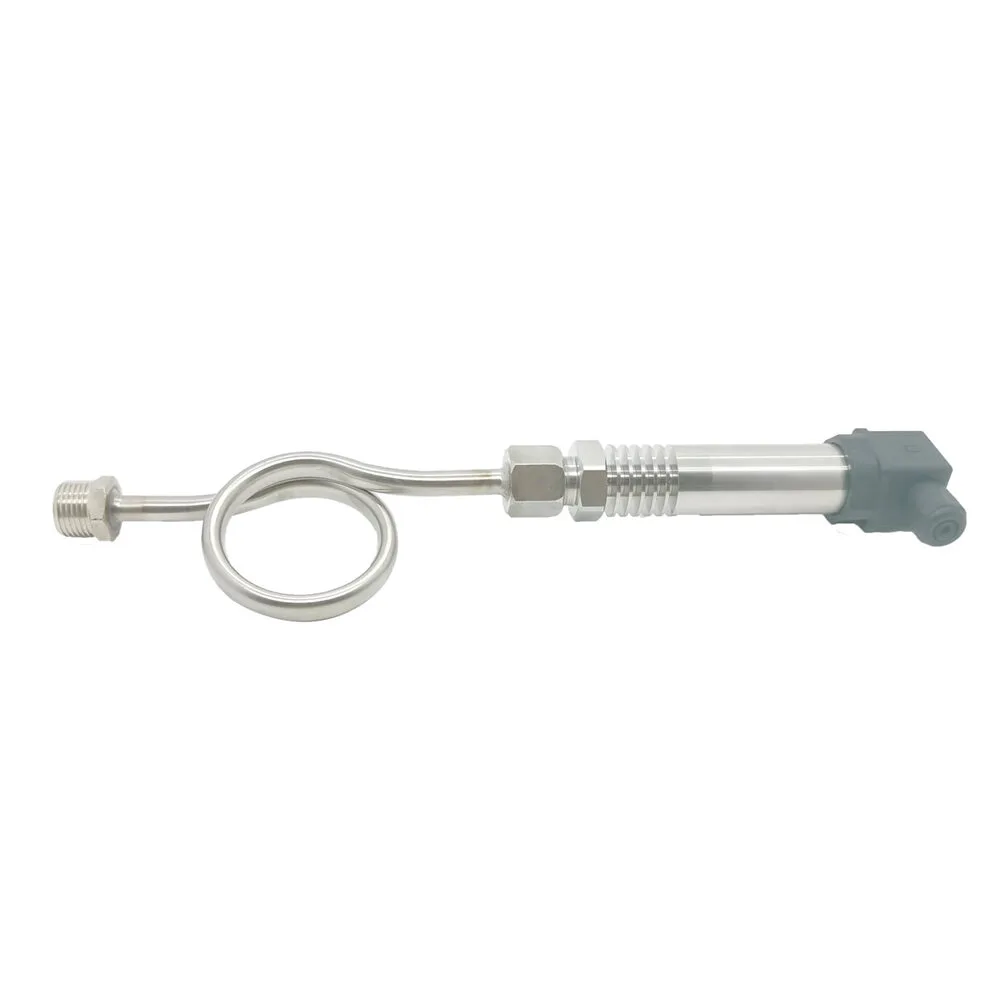

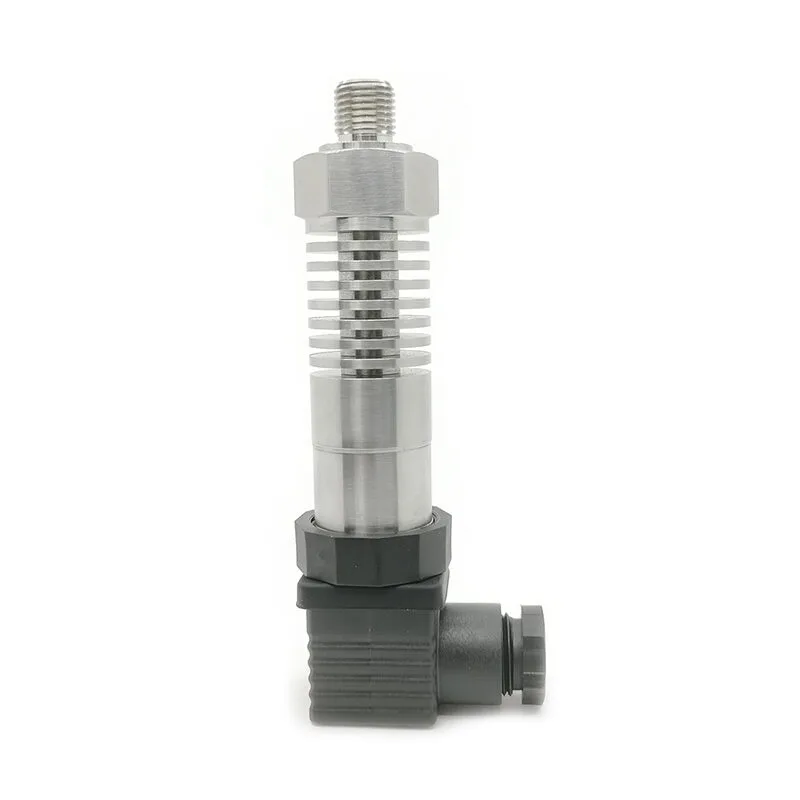

XDB314-2 series of high temperature pressure transmitters utilize the international advanced piezoresistive sensor technology. It uses ceramic core and all stainless steel structure with heat sink. and offer the flexibility of selecting different sensor cores to meet specific application demands. XDB314-2is encased in a robust stainless steel package with heat sink and with multiple signal output options available, they exhibit exceptional long-terms stability and are compatible with a wide range of media, thus they are widely used in various industries and fields. It is featured with compact size, long-term reliability, high temperature resistance, ease installation and very economical and suitable for air, oil or other media.
● High accuracy to 0.5%.
● Affordable price & economical solutions.
● Complete surge voltage protection function.
● Temperature resistance 200℃.
● Provide OEM, flexible customization.
● Acceptable medium fuels and oils water and general liquids, air and gas.
● Intelligent loT constant pressure water supply.
● Engineering machinery, industrial process control and monitoring.
● Energy and water treatment systems.
● Steel, light industry, environmental protection.
● Medical, agricultural machinery and testing equipment.
● Flow measurement equipment.
● Hydraulic and pneumatic control systems.
● Air-conditioning unit and refrigeration equipment.
Please refer to the following data for products choosing. If you have special needs, please feel free to contact us.
| Pressure range | -1~0~600 bar | Long-term stability | ≤±0.2% FS/year |
| Accuracy |
|
Response time | ≤3ms |
| Input voltage |
|
Overload pressure | 150% FS |
| Output signal |
|
Burst pressure | 300% FS |
| Thread |
|
Cycle life | 500,000 times |
| Electrical connector | Hirschmann DIN43650A | Housing material | 304 stainless steel |
| Operating temperature | -40 ~200 ℃ | ||
| Compensation temperature | -20 ~ 80 ℃ | Protection class | IP65 |
| Operating current | ≤3mA | Explosion-proof class | Exia II CT6 |
| Temperature drift (zero&sensitivity) | ≤±0.03%FS/ ℃ | Weight | ≈0.25kg |
| Insulation resistance | >100 MΩ at 500V | ||
E.g. XDB314- 0.6M – 01 – 2 – A – G1 – W6 – b – 03 – Oil-80℃
|
1 |
Pressure range | 0.6M |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
|
2 |
Pressure type | 01 |
| 01(Gauge) 02(Absolute) | ||
|
3 |
Supply voltage | 2 |
| 0(5VCD) 1(12VCD) 2(9~36(24)VCD) 3(3.3VCD) X(Others on request) | ||
|
4 |
Output signal | A |
| A(4-20mA) B(0-5V) C(0.5-4.5V) D(0-10V) E(0.4-2.4V) F(1-5V) G(I2C) X(Others on request) | ||
|
5 |
Pressure connection | G1 |
| G1(G1/4) G2(G1/8) G3(G1/2)
N1(NPT1/8) N2(NPT1/4) N3(NPT1/2) M1(M20*1.5) M2(M14*1.5) M3(M12*1.5) M4(M10*1) X(Others on request) |
||
|
6 |
Electrical connection | W6 |
| W6(Hirschmann DIN43650A) X(Others on request) | ||
|
7 |
Accuracy | b |
| b(0.5% FS) c(1.0% FS) X(Others on request) | ||
|
8 |
Paired cable | 03 |
| 01(0.3m) 02(0.5m) 03(1m) X(Others on request) | ||
|
9 |
Pressure medium | Oil |
| X(Please note) | ||
|
10 |
Medium temperature | 80℃ |
| X(Please note) | ||
Notes:

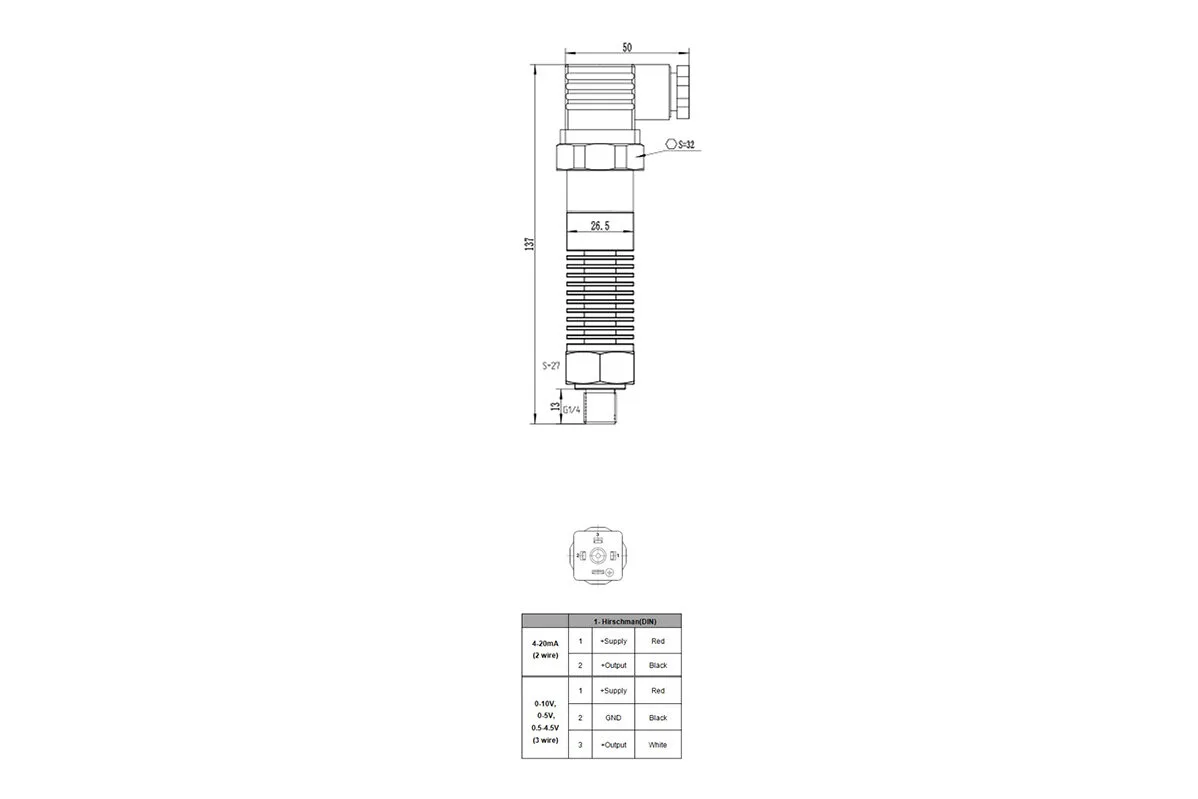

1) Please connect the pressure transmitter to the opposite connection for different electric connector.
If the pressure transmitters come with cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
