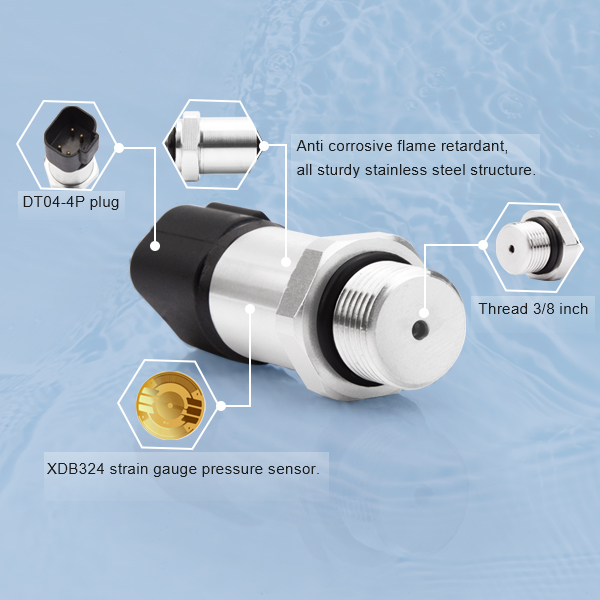

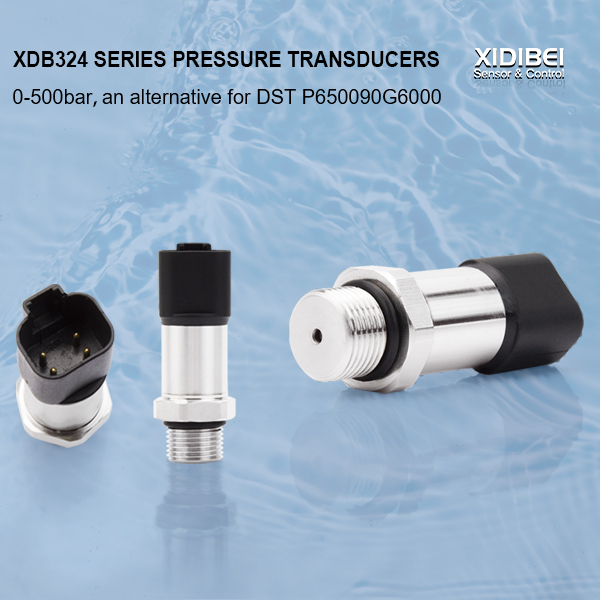

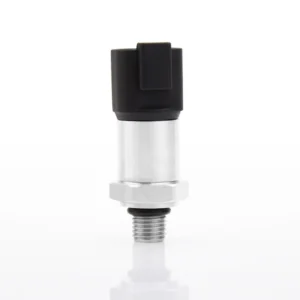

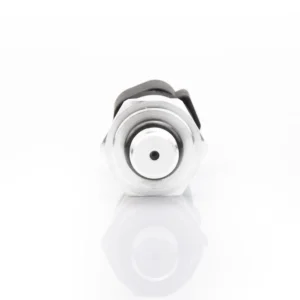

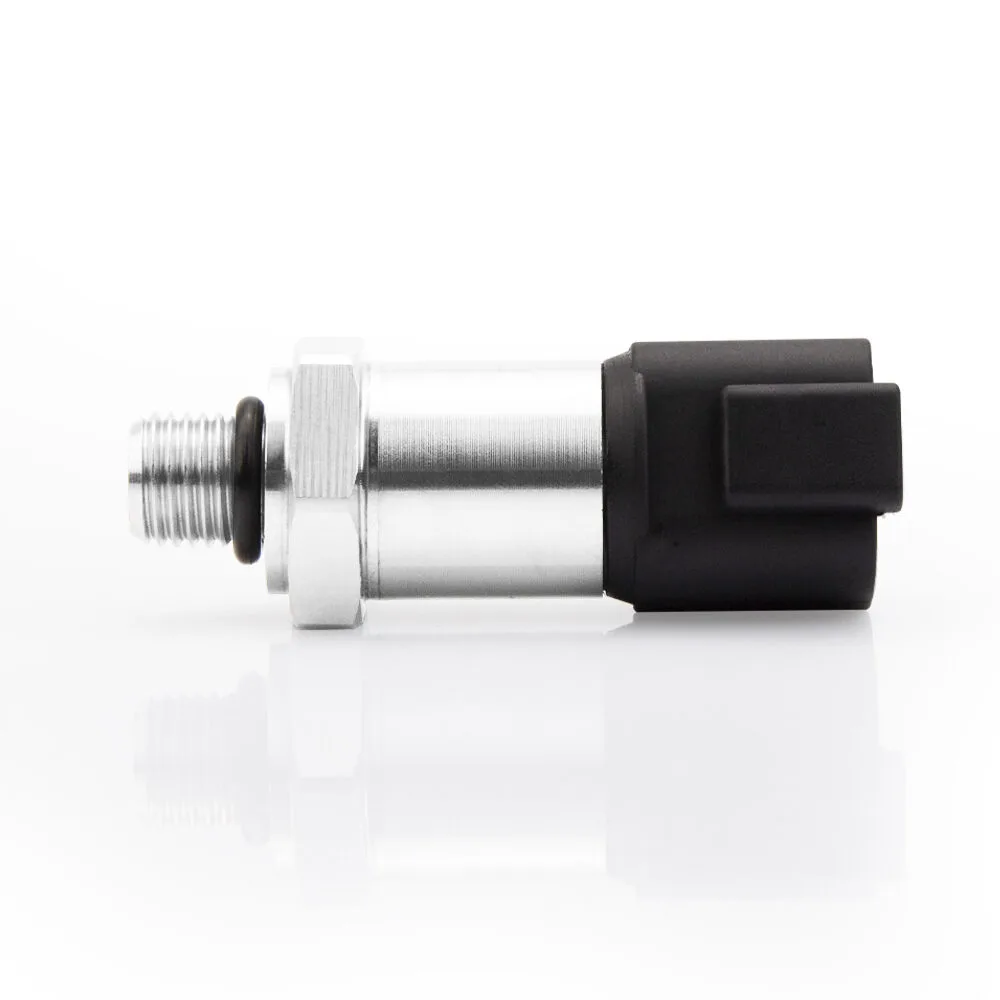

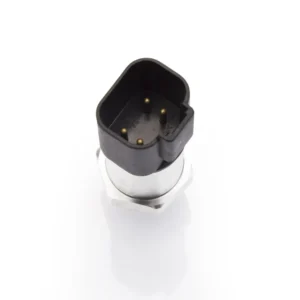

XDB324 series of pressure transducers utilize strain gauge pressure sensor core, ensuring exceptional reliability and long-term stability. Encased in a sturdy stainless steel shell structure, the transducers excel in adapting to diverse circumstances and applications, thus they are widely used in various industries and fields.

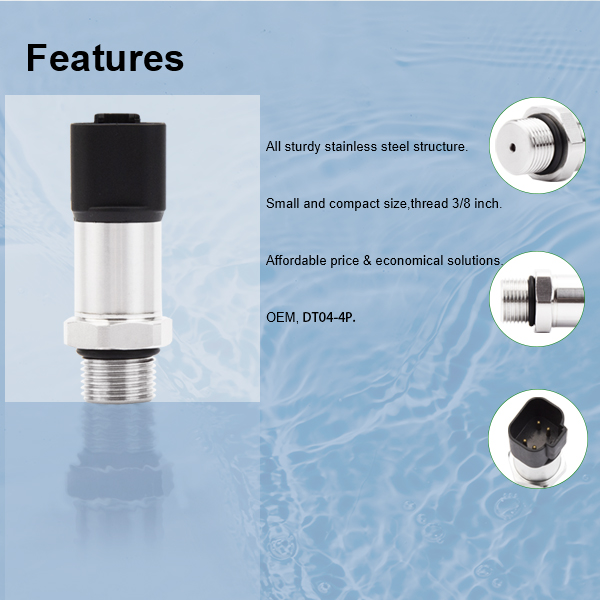

1.All sturdy stainless steel structure
2.Small and compact size
3.Complete surge voltage protection function
4.Affordable price & economical solutions
5.Provide OEM, flexible customization

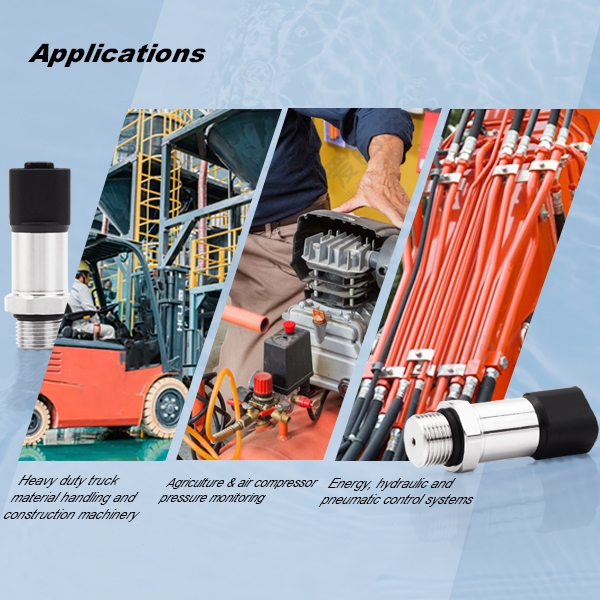

1.Heavy duty truck, material handling and construction machinery
2.Agriculture & air compressor pressure monitoring
3.Energy, hydraulic and pneumatic control systems
| Measuring range |
|
Long-term stability | ≤±0.2% FS/year |
| Accuracy | ±1% FS, Others on request | Response time | ≤4ms |
| Input voltage | DC 9-16V, 9-30V | Overload pressure | 150% FS |
| Output signal | 0.5~4.5V, 4~20mA (others) | Burst pressure | 300% FS |
| Thread |
|
Cycle life | 500,000 times |
| Electrical connector | DT04-4P, DT04-3P | Housing material | 304 Stainless Steel |
| Operating temperature | -40 ~ 105 ℃ | Sensor material | 96% Al2O3 |
| Compensation temperature | -20 ~ 80 ℃ | Insulation resistance | >100 MΩ at 500V |
| Operating current | ≤3mA | Protection class | IP65 |
| Temperature drift (zero&sensitivity) | ≤±0.03%FS/ ℃ | Weight | ≈0.08 kg |

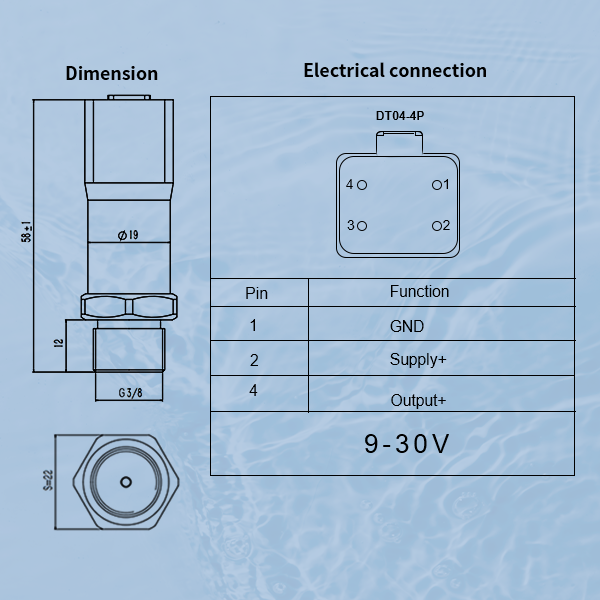

![XDB324 series Image[3]](https://j575.goodao.net/uploads/XDB324-series-Image3.jpg)
E.g. XDB324- 150P – 01 – 0 – C – 3/8 – W8 – c – 01 – Oil
|
1 |
Pressure range | 150P |
| M(Mpa) B(Bar) P(Psi) X(Others on request) | ||
|
2 |
Pressure type | 01 |
| 01(Gauge) 02(Absolute) | ||
|
3 |
Supply voltage | 0 |
| 0(5VCD) 1(12VCD) 2(9~36(24)VCD) 3(3.3VCD) X(Others on request) | ||
|
4 |
Output signal | C |
| B(0-5V) C(0.5-4.5V) E(0.4-2.4V) F(1-5V) X(Others on request) | ||
|
5 |
Pressure connection | 3/8 |
| G5(G3/8) 7/16-20 9/16-18 G1(G1/4) N1(NPT1/8) M2(M14*1.5) X(Others on request) | ||
|
6 |
Electrical connection | W8 |
| W8 (DT04-4P) X(Others on request) | ||
|
7 |
Accuracy | c |
| c(1.0% FS) d(1.5% FS) X(Others on request) | ||
|
8 |
Pressure medium | Oil |
| X(Please note) | ||
Notes:

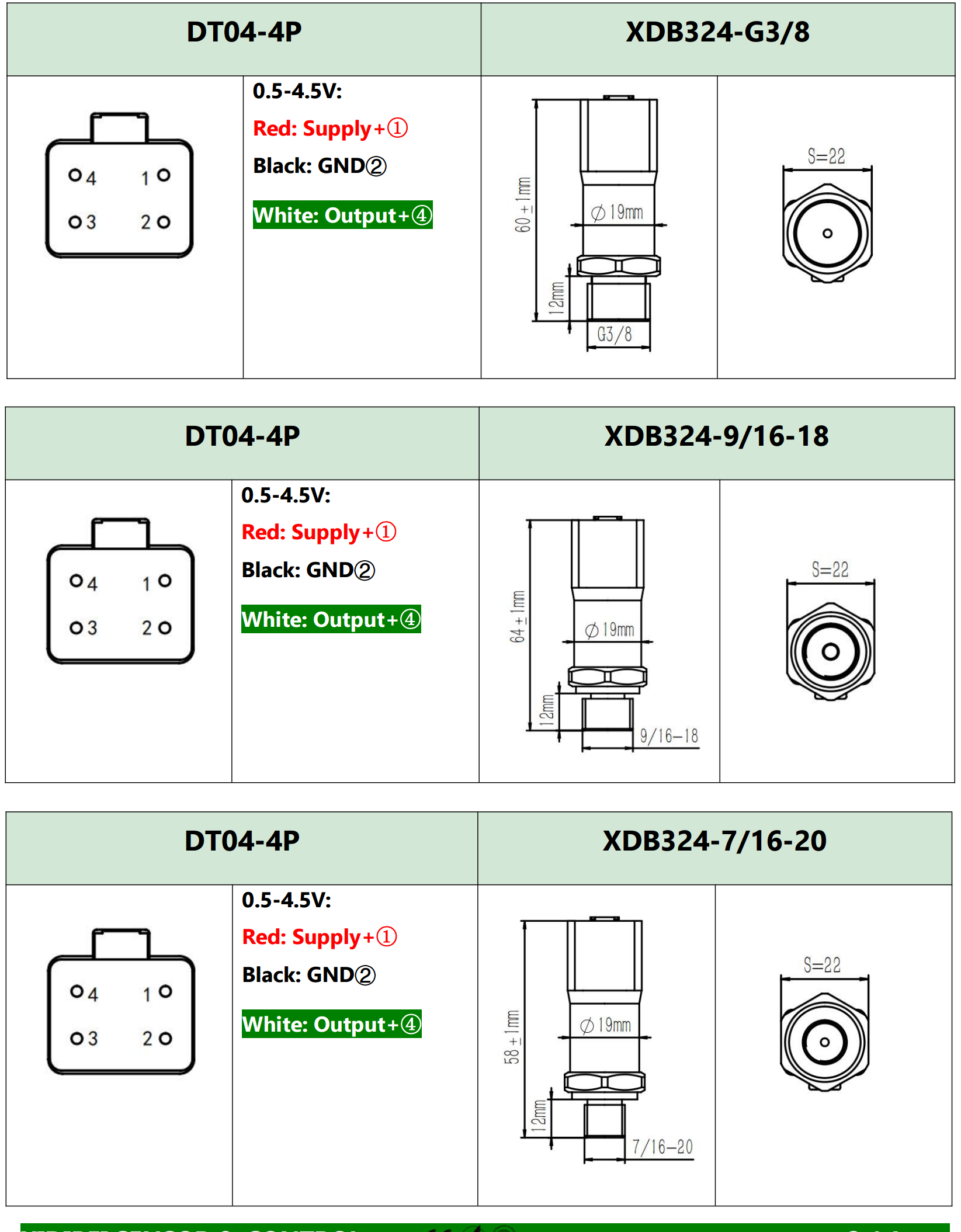

1) Please connect the pressure transducers to the opposite connection for different electric connectors.
If the pressure transducers come with a cable, please refer to the right color.
2) If you have other requirements, please contact us and make notes in the order.
