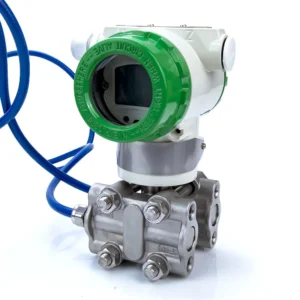

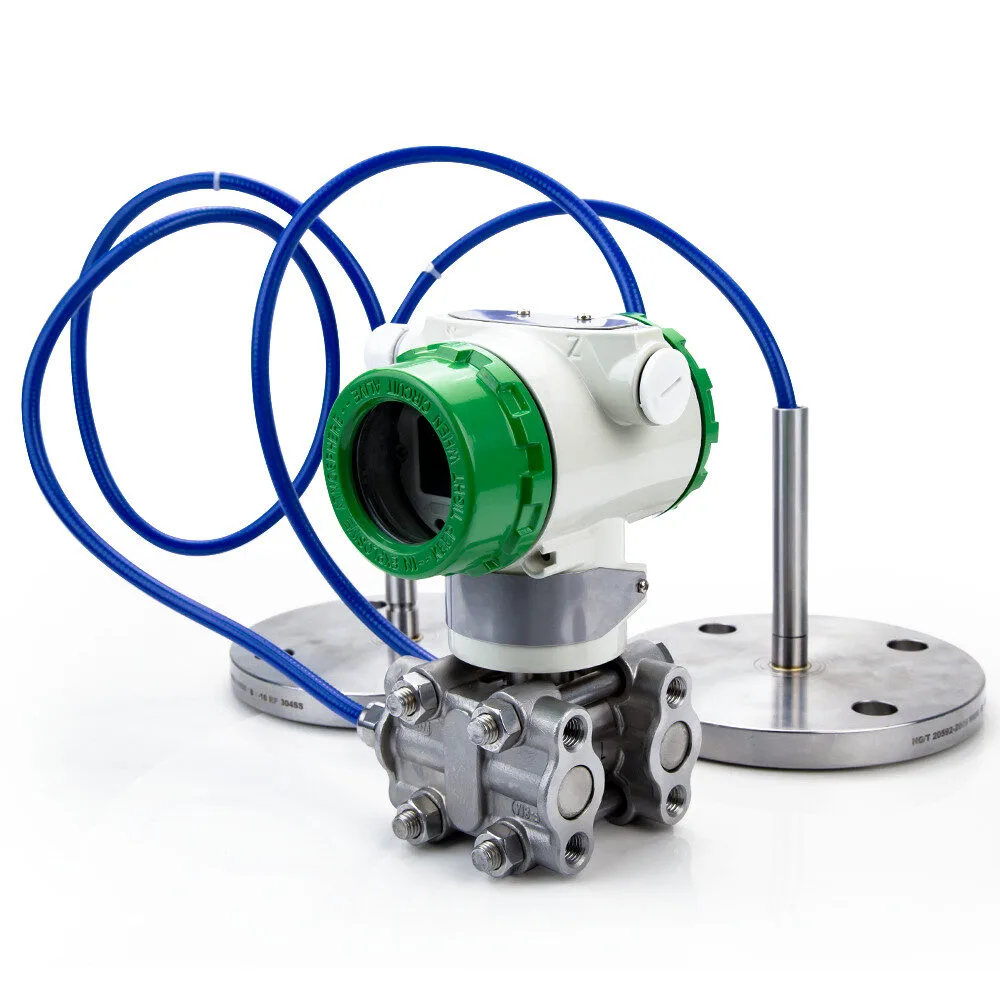

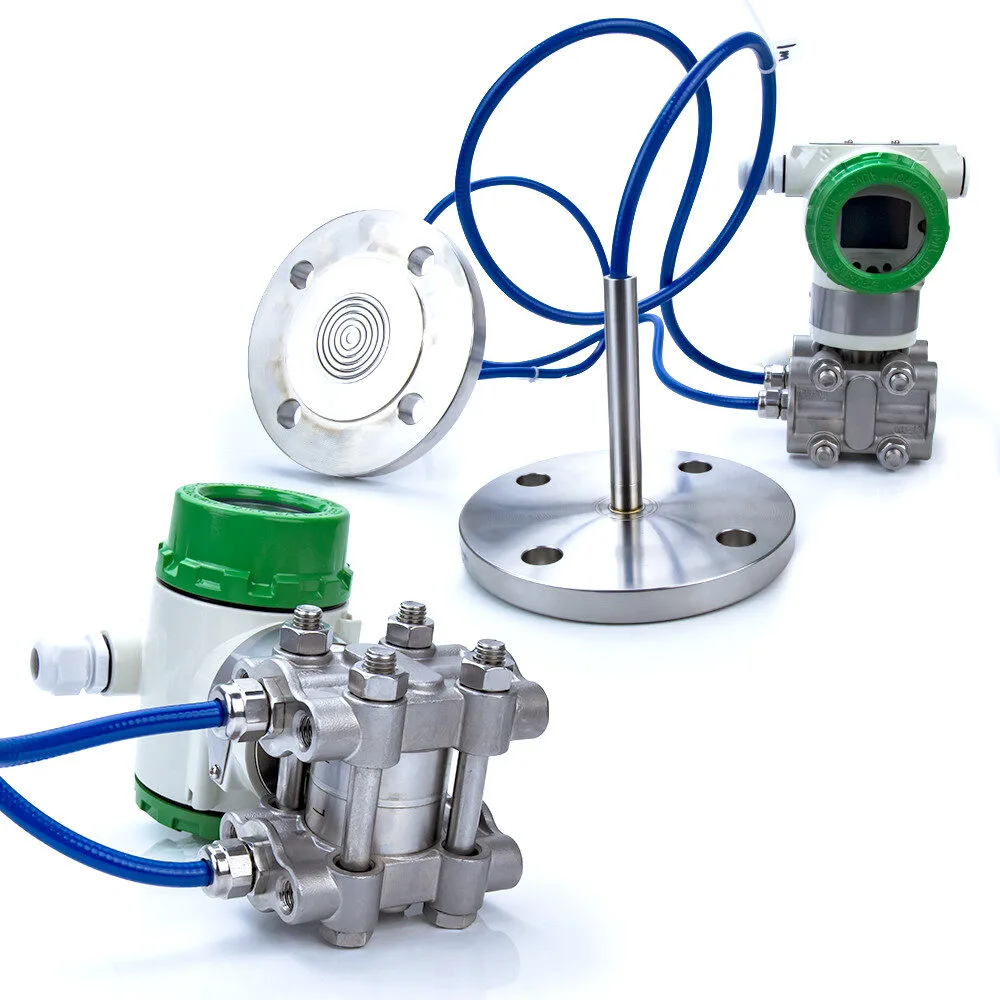

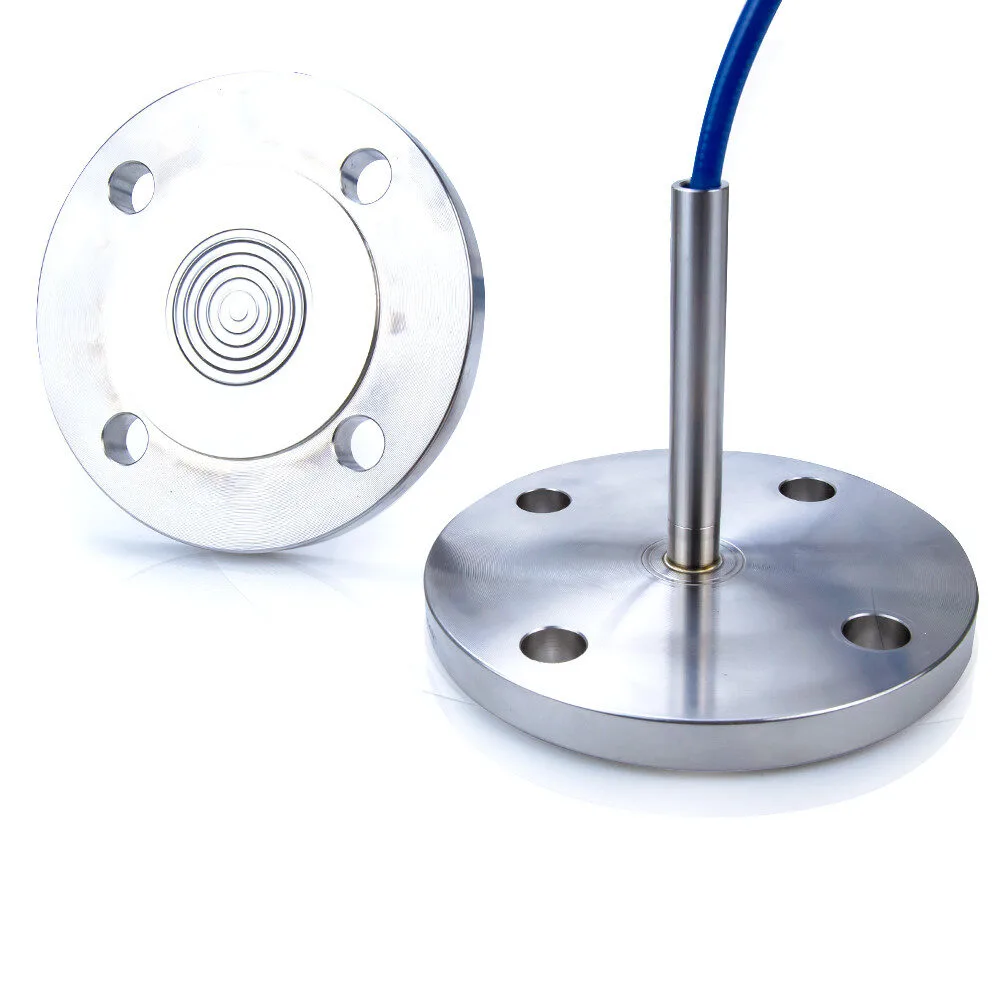

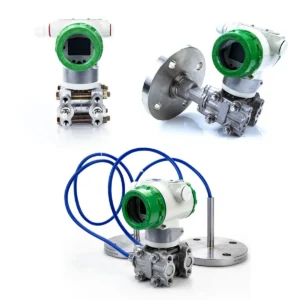

XDB606-S2 Series Intelligent Dual Flange Level Transmitter

Short description

The intelligent monocrystalline silicon remote level transmitter utilizes advanced MEMS technology from Germany to achieve high accuracy and stability under high overpressure. It features a unique double-beam suspended design and is embedded with a German signal processing module. This transmitter accurately measures differential pressure and converts it into a 4~20mA DC output signal. It can be operated locally using three buttons or remotely via a universal manual operator, configuration software, or smartphone app, allowing for display and configuration without affecting the output signal.

Send email to us

Features

1. High Accuracy: The differential pressure transmitter can achieve high accuracy measurements within the range of -4 to 4MPa. The standard calibration range reference accuracy is ±0.2%.

2. Excellent Environmental Adaptability: Equipped with intelligent static pressure compensation and temperature compensation, the transmitter is protected from the effects of temperature, static pressure, and overpressure, minimizing comprehensive measurement errors on-site.

3. Outstanding Operational and User Convenience: Features a 5-digit LCD display with backlighting.

4. Offers various display functions (refer to selection notes)

5. Integrated three-button quick operation for on-site adjustments.

6. Available in various corrosion-resistant materials.

7. Comprehensive self-diagnostic functionality.

Typical applications

1. Oil/Petrochemical/Chemical Industry: Paired with throttling devices for precise flow measurement and control. Accurately measures pipeline and storage tank pressure and liquid level.

2. Electricity/Urban Gas/Others: Requires high stability and precision for pressure, flow, and level measurements.

3. Pulp and Paper Industry: For pressure, flow, and level measurements in environments needing resistance to chemical and corrosive liquids.

4. Steel/Non-ferrous Metals/Ceramics: Used for furnace pressure and vacuum measurements, demanding high stability and precision.

5.  Mechanical Equipment/Shipbuilding: Utilized in settings where stable measurements of pressure, flow, and liquid level are critical under strictly controlled conditions.



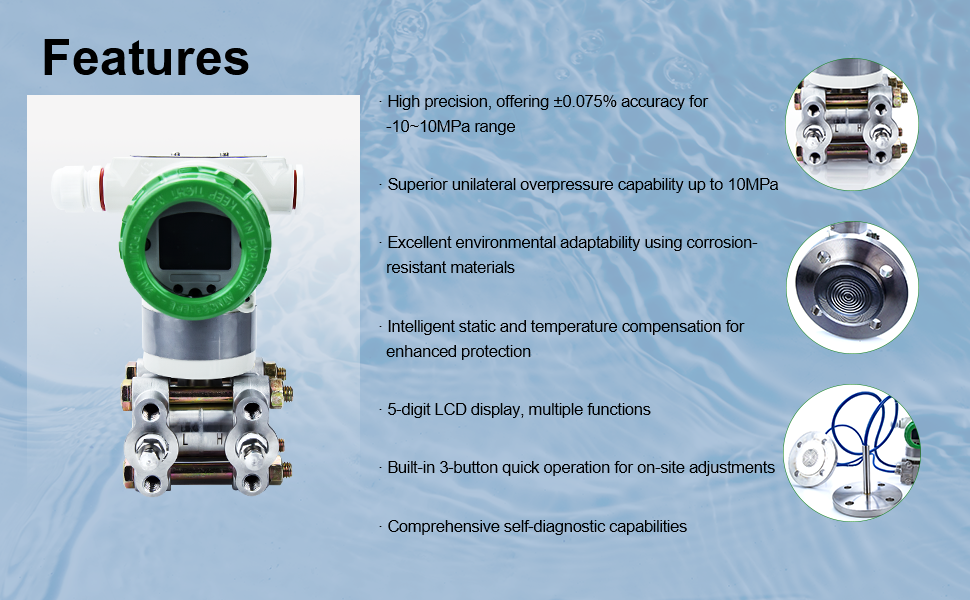

XDB606 Series Industrial Differential Pressure Transmitter

XDB606 Series Industrial Differential Pressure Transmitter

XDB606 Series Industrial Differential Pressure Transmitter

XDB606 Series Industrial Differential Pressure Transmitter

XDB606 Series Industrial Differential Pressure Transmitter

Parameters

Pressure range -30~30bar Pressure Type Gauge pressure and absolute pressure
Accuracy ± 0.2%FS Input voltage 10.5~45V DC (intrinsic safety
explosion-proof 10.5-26V DC)
Output signal 4~20mA and Hart Display LCD
Power impact ± 0.005%FS/1V Environmental temperature -40~85℃
Housing material Cast aluminum alloy and
stainless steel (optional)		 Sensor type Monocrystalline silicon
Diaphragm material SUS316L, Hastelloy HC-276, Tantalum, gold-plated, Monel, PTFE (optional) Receiving liquid material Stainless steel
Environmental
temperature impact		 ± 0.095~0.11% URL/10 ℃ Measurement medium Gas, steam, liquid
Medium temperature -40~85℃ Static pressure effect ± 0.1%FS/10MPa
Stability ± 0.1%FS/5 years Ex-proof Ex(ia) IIC T6
Protection class IP66 Installation bracket Carbon steel galvanized and stainless
steel (optional)
Weight ≈10.26kg

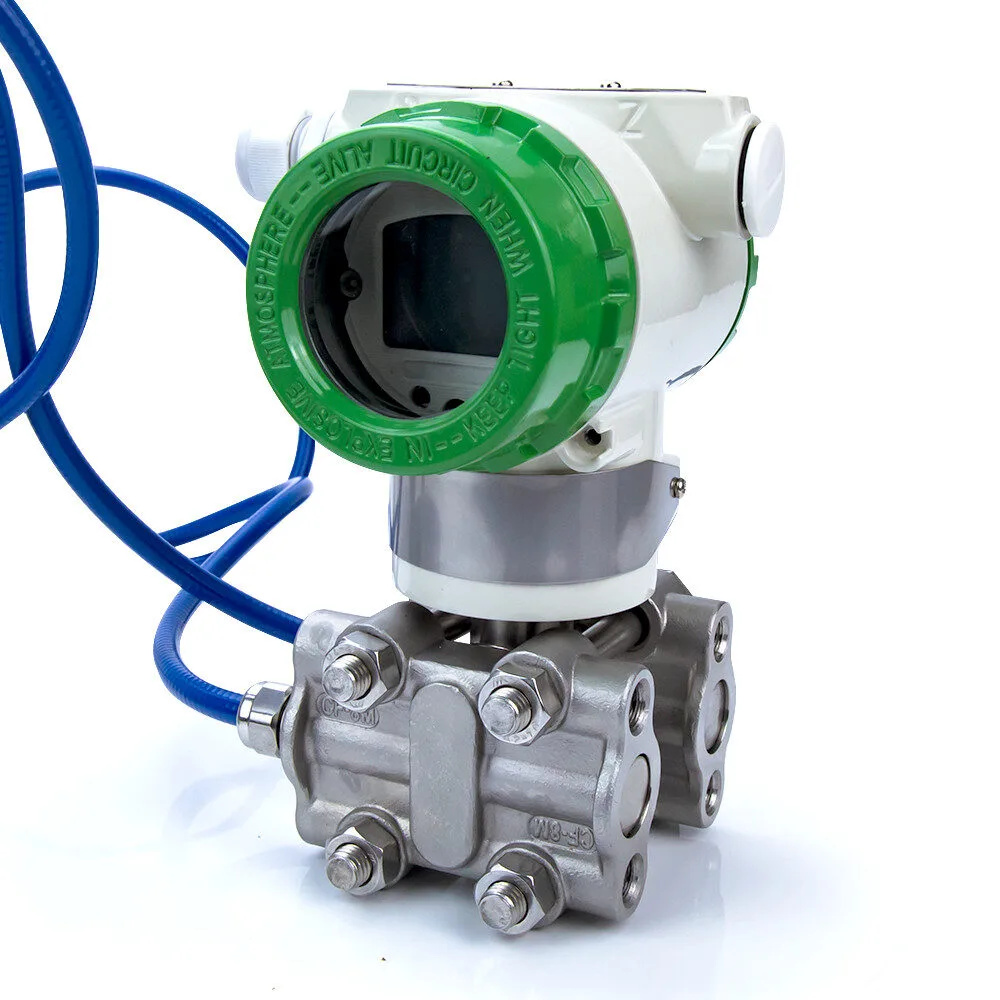

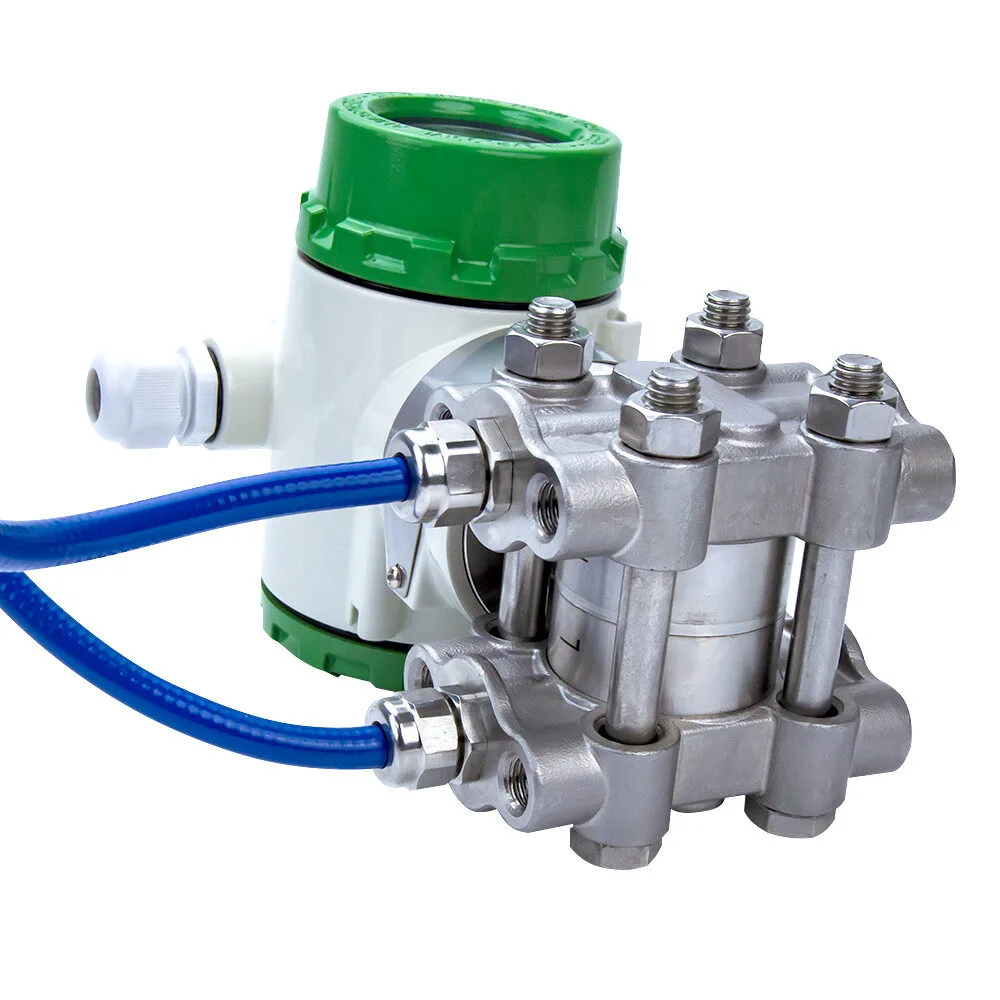

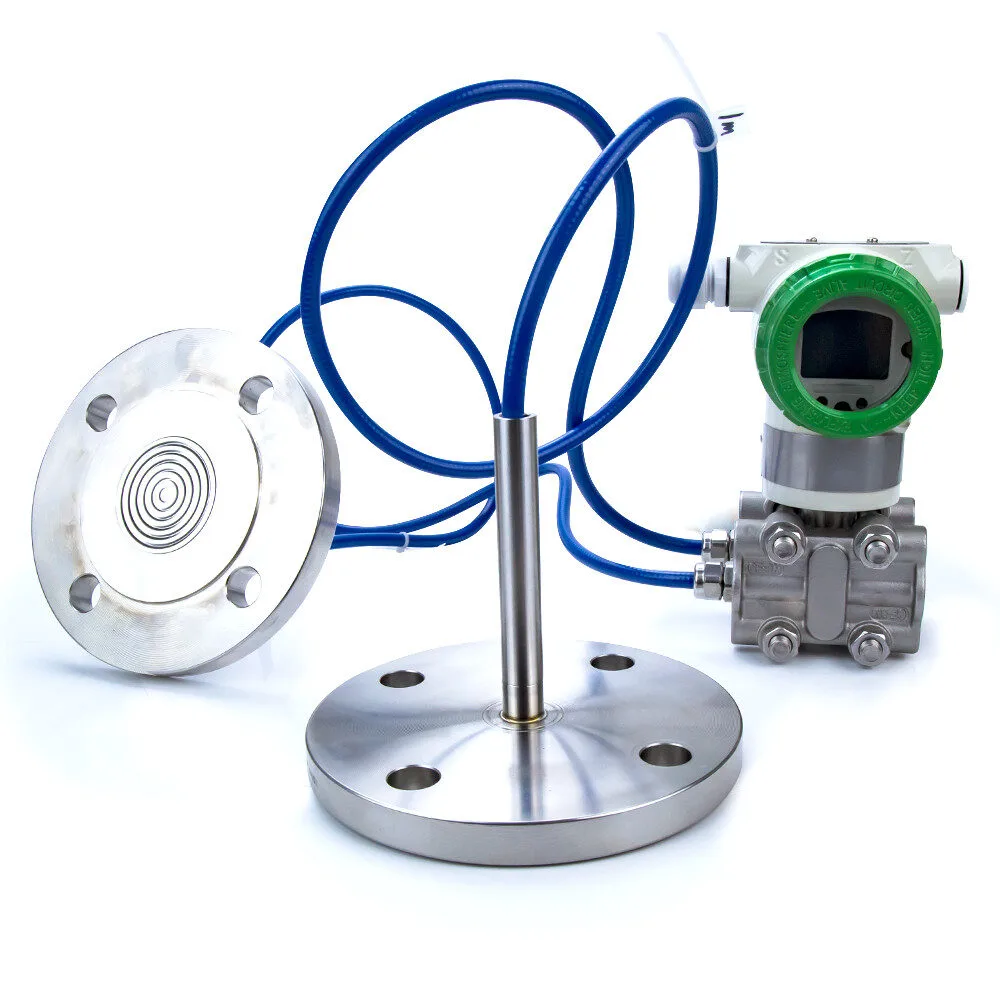

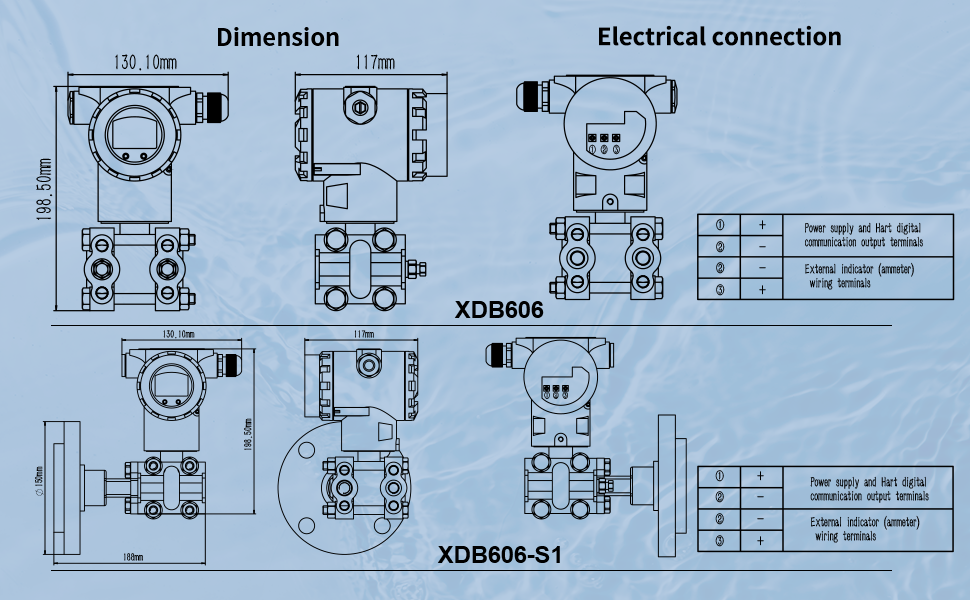

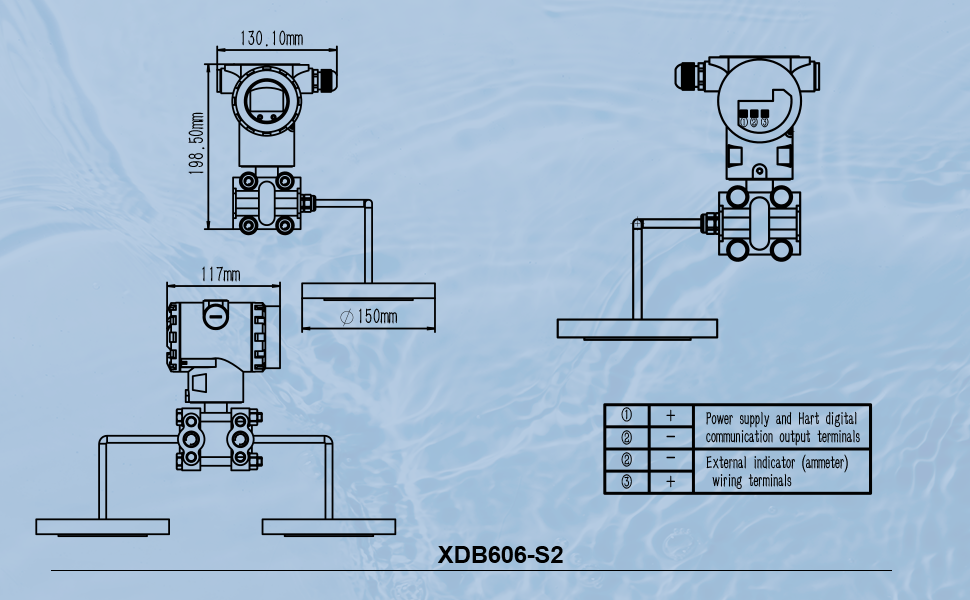

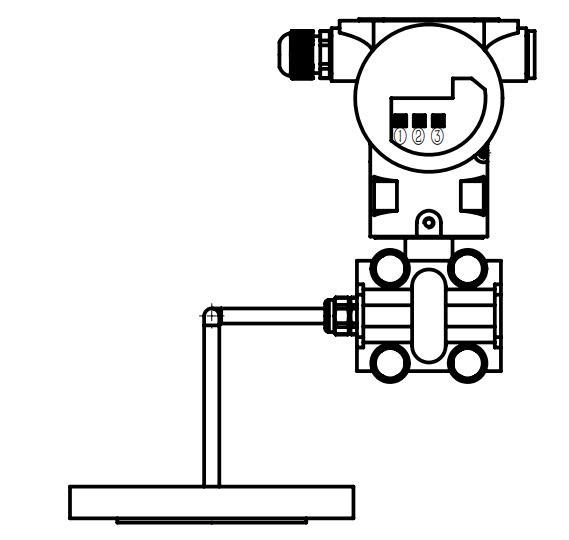

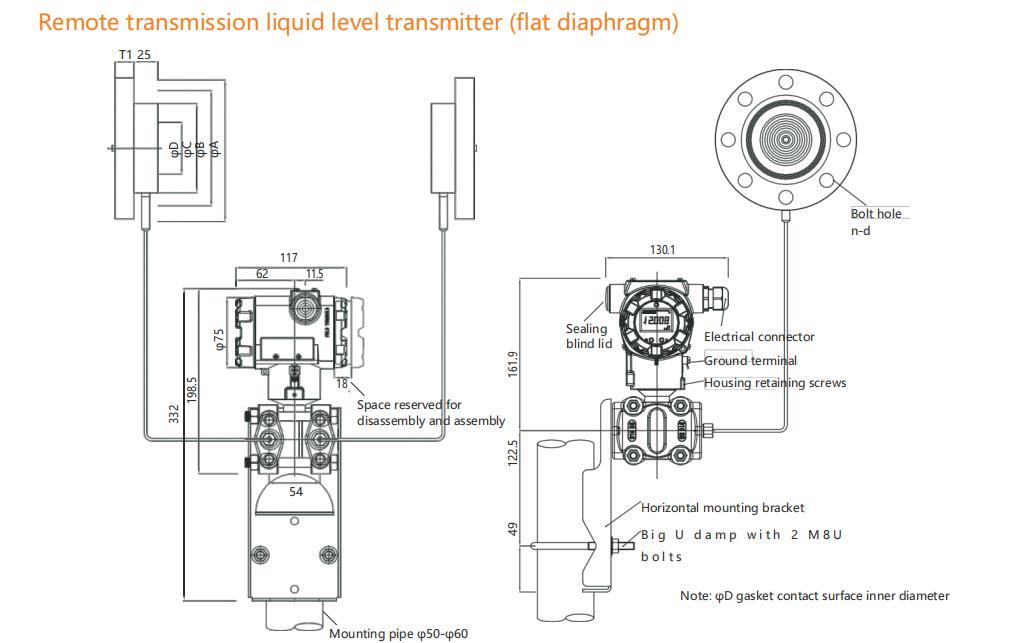

Dimensions(mm) & electrical connection

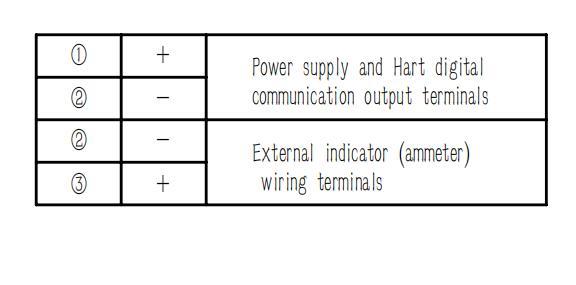

XDB606-S2series Image[2]

XDB606-S2series Image[2]

XDB606-S2series Image[2]

XDB606-S2series Image[2]

Output Curvee

XDB605 series Image[3]

Product installation diagram

XDB606-S2series Image[3]
Flat flange DN50 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 150 120.7 100 61 19.5 4 18
ANSI300 165 127 100 61 22.7 8 18
ANSI600 165 127 100 61 32.4 8 18
ANSI900 215 165.1 100 61 45.1 8 26
ANSI1500 215 165.1 100 61 45.1 8 26
DINPN10/16 165 125 100 61 18 4 18
DINPN25/40 165 125 100 61 20 4 18
DIN PN 64 180 135 100 61 26 4 22
DIN PN 100 195 145 100 61 28 4 26
DIN PN 160 195 145 100 61 30 4 26





Flat flange DN80 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 190 152.4 130 89 24.3 4 18
ANSI300 210 168.3 130 89 29 8 22
ANSI600 210 168.3 130 89 38.8 8 22
ANSI900 240 190.5 130 89 45.1 8 26
ANSI1500 265 203.2 130 89 54.7 8 33
DINPN10/16 200 160 130 89 20 8 18
DINPN25/40 200 160 130 89 24 8 18
DIN PN 64 215 170 130 89 28 8 22
DIN PN 100 230 180 130 89 32 8 26
DIN PN 160 230 180 130 89 36 8 26





Flat flange DN100 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 230 190.5 150 115 24.3 8 18
ANSI300 255 200 150 115 32.2 8 22
ANSI600 275 215.9 150 115 45.1 8 26
ANSI900 290 235 150 115 51.5 8 33
ANSI1500 310 241.3 150 115 61.0 8 36
DINPN10/16 220 180 150 115 20 8 18
DINPN25/40 235 190 150 115 24 8 22
DIN PN 64 250 200 150 115 30 8 26
DIN PN 100 265 210 150 115 36 8 30
DIN PN 160 265 210 150 115 40 8 30

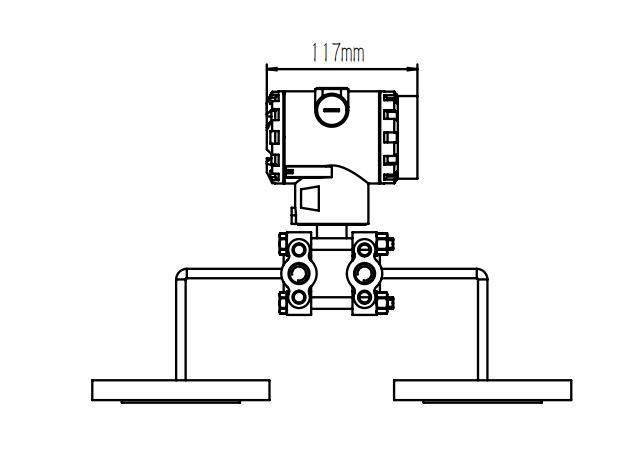

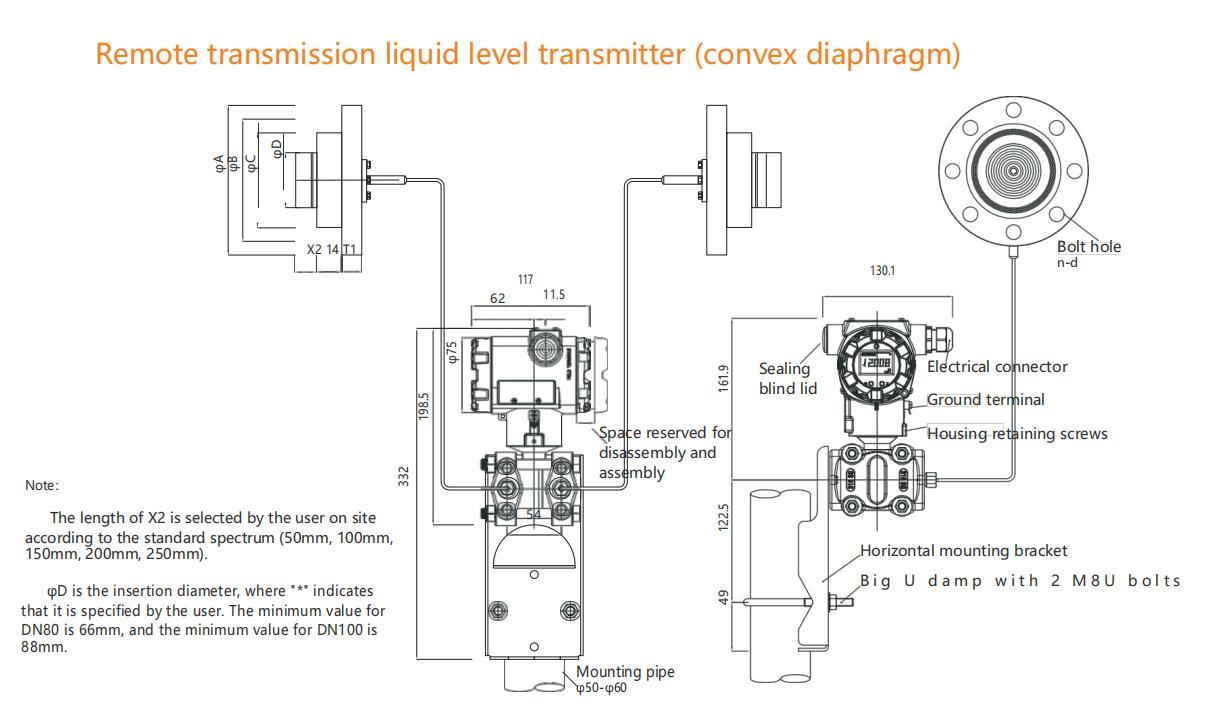

XDB606-S2series Image[4]

Flat flange DN50 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 150 120.7 100 48 19.5 4 18
ANSI300 165 127 100 48 22.7 8 18
ANSI600 165 127 100 48 32.4 8 18
ANSI900 215 165.1 100 48 45.1 8 26
ANSI1500 215 165.1 100 * 45.1 8 26
DINPN10/16 165 125 100 48 18 4 18
DINPN25/40 165 125 100 48 20 4 18
DIN PN 64 180 135 100 48 26 4 22
DIN PN 100 195 145 100 48 28 4 26
DIN PN 160 195 145 100 48 30 4 26





Flat flange DN80 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 190 152.4 130 71 24.3 4 18
ANSI300 210 168.3 130 71 29 8 22
ANSI600 210 168.3 130 71 38.8 8 22
ANSI900 240 190.5 130 71 45.1 8 26
ANSI1500 265 203.2 130 * 54.7 8 33
DINPN10/16 200 160 130 71 20 8 18
DINPN25/40 200 160 130 71 24 8 18
DIN PN 64 215 170 130 71 28 8 22
DIN PN 100 230 180 130 71 32 8 26
DIN PN 160 230 180 130 71 36 8 26





Flat flange DN100 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 230 190.5 150 96 24.3 8 18
ANSI300 255 200 150 96 32.2 8 22
ANSI600 275 215.9 150 96 45.1 8 26
ANSI900 290 235 150 96 51.5 8 33
ANSI1500 310 241.3 150 * 61.0 8 36
DINPN10/16 220 180 150 96 20 8 18
DINPN25/40 235 190 150 96 24 8 22
DIN PN 64 250 200 150 96 30 8 26
DIN PN 100 265 210 150 96 36 8 30
DIN PN 160 265 210 150 96 40 8 30

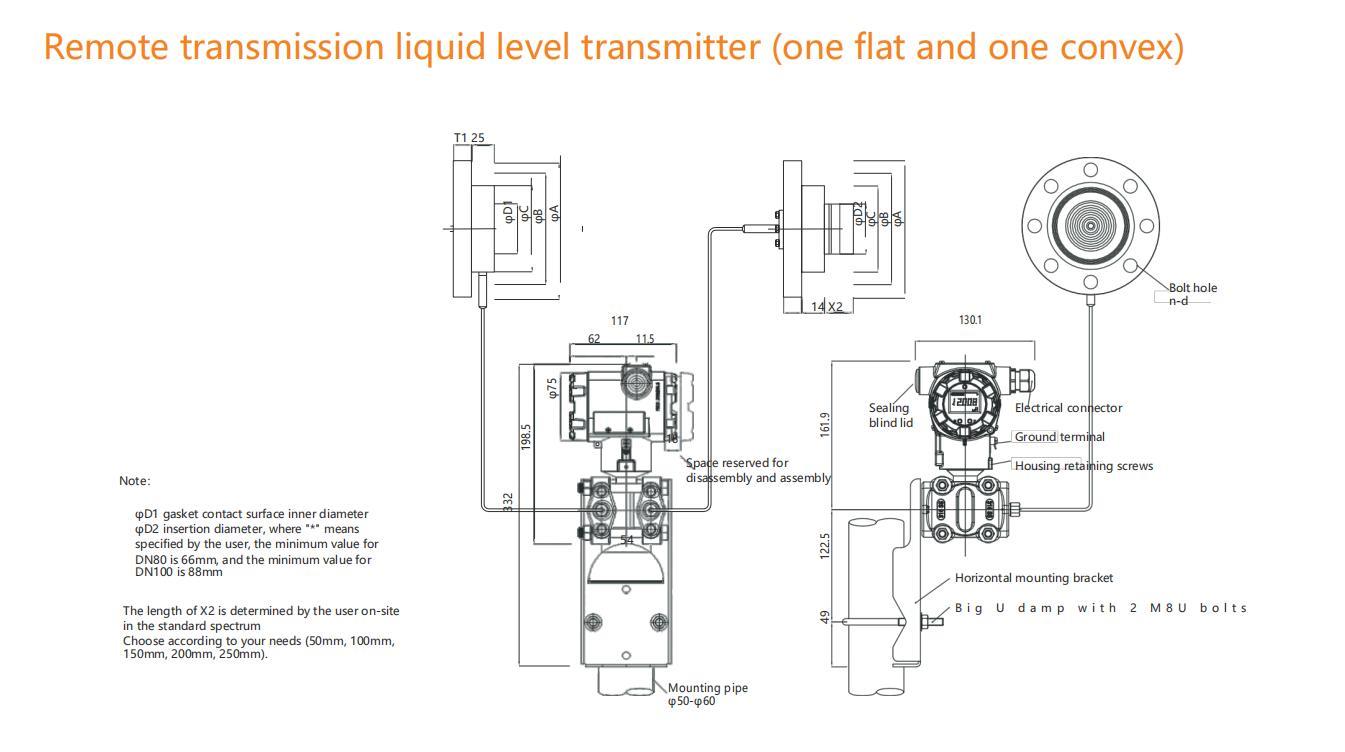

XDB606-S2series Image[6]

Flat flange DN50 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 150 120.7 100 61 19.5 4 18
ANSI300 165 127 100 61 22.7 8 18
ANSI600 165 127 100 61 32.4 8 18
ANSI900 215 165.1 100 61 45.1 8 26
ANSI1500 215 165.1 100 61 45.1 8 26
DINPN10/16 165 125 100 61 18 4 18
DINPN25/40 165 125 100 61 20 4 18
DIN PN 64 180 135 100 61 26 4 22
DIN PN 100 195 145 100 61 28 4 26
DIN PN 160 195 145 100 61 30 4 26





Flat flange DN80 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 190 152.4 130 89 24.3 4 18
ANSI300 210 168.3 130 89 29 8 22
ANSI600 210 168.3 130 89 38.8 8 22
ANSI900 240 190.5 130 89 45.1 8 26
ANSI1500 265 203.2 130 89 54.7 8 33
DINPN10/16 200 160 130 89 20 8 18
DINPN25/40 200 160 130 89 24 8 18
DIN PN 64 215 170 130 89 28 8 22
DIN PN 100 230 180 130 89 32 8 26
DIN PN 160 230 180 130 89 36 8 26





Flat flange DN100 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 230 190.5 155 96 24.3 8 18
ANSI300 255 200 155 96 32.2 8 22
ANSI600 275 215.9 155 96 45.1 8 26
ANSI900 290 235 155 96 51.5 8 33
ANSI1500 310 241.3 155 * 61.0 8 36
DINPN10/16 220 180 155 96 20 8 18
DINPN25/40 235 190 155 96 24 8 22
DIN PN 64 250 200 155 96 30 8 26
DIN PN 100 265 210 155 96 36 8 30
DIN PN 160 265 210 155 96 40 8 30





XDB606-S2series Image[7]

Flat flange DN50 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 150 120.7 100 61 19.5 4 18
ANSI300 165 127 100 61 22.7 8 18
ANSI600 165 127 100 61 32.4 8 18
ANSI900 215 165.1 100 61 45.1 8 26
ANSI1500 215 165.1 100 61 45.1 8 26
DINPN10/16 165 125 100 61 18 4 18
DINPN25/40 165 125 100 61 20 4 18
DIN PN 64 180 135 100 61 26 4 22
DIN PN 100 195 145 100 61 28 4 26
DIN PN 160 195 145 100 61 30 4 26





Flat flange DN80 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 190 152.4 130 89 24.3 4 18
ANSI300 210 168.3 130 89 29 8 22
ANSI600 210 168.3 130 89 38.8 8 22
ANSI900 240 190.5 130 89 45.1 8 26
ANSI1500 265 203.2 130 89 54.7 8 33
DINPN10/16 200 160 130 89 20 8 18
DINPN25/40 200 160 130 89 24 8 18
DIN PN 64 215 170 130 89 28 8 22
DIN PN 100 230 180 130 89 32 8 26
DIN PN 160 230 180 130 89 36 8 26





Flat flange DN100 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 230 190.5 155 96 24.3 8 18
ANSI300 255 200 155 96 32.2 8 22
ANSI600 275 215.9 155 96 45.1 8 26
ANSI900 290 235 155 96 51.5 8 33
ANSI1500 310 241.3 155 * 61.0 8 36
DINPN10/16 220 180 155 96 20 8 18
DINPN25/40 235 190 155 96 24 8 22
DIN PN 64 250 200 155 96 30 8 26
DIN PN 100 265 210 155 96 36 8 30
DIN PN 160 265 210 155 96 40 8 30





How to order

E.g. XDB606 – S2 – H – R1 – W1 – DY – SS – G1 -D1 – A – X1 – M20 – M – H – Q – SS – G1 – D1 – A – X1 – DY

Model/Item Specification code Description
XDB606 S2 Dual Flange Level Transmitter
Output signal H 4-20mA, Hart, 2-wire
Measuring range R1 1~6kPa Range: -6~6kPa Overload limit: 2MPa
R2 4~40kPa Range: -40~40kPa Overload limit: 7MPa
R3 10~100KPa, Range: -100~100kPa Overload limit: 7MPa
R4 40~400KPa, Range: -100~400kPa Overload limit: 7MPa
R5 0.3-3MPa, Range: -0.1-3MPa Overload limit: 7MPa
Capillary DY ***mm
Receiving liquid material SS Diaphragm: SUS316L, Other receiving liquid materials: stainless steel
HC Diaphragm: Hastelloy HC-276 Other liquid contact materials: stainless steel
TA Diaphragm: Tantalum Other Liquid Contact Materials: Stainless Steel
GD Diaphragm: gold-plated, other liquid contact materials: stainless steel
MD Diaphragm: Monel Other liquid contact materials: stainless steel
PTFE Diaphragm: PTFE coating Other liquid contact materials: stainless steel
High-Pressure Side FlangeSpecification



 G1 GB/T9119-2010 (National Standard): 1.6MPa
G2 HG20592 (Chemical Industry Standard): 1.6MPa
G3 DIN (German Standard): 1.6MPa
G4 ANSI (American Standard): 1.6MPa
GX Customized
High Pressure Side Flange
Size		 D1 DN25
D2 DN50
D3 DN80
D4 DN100
D5 Customized
Flange Material A 304
B 316
C Customized
Diaphragm Protrusion Length X1 ***mm
Electrical connection M20 M20 * 1.5 female with a blind plug and an electrical connector
N12 1/2NPT female with a blind plug and an electrical connector
Display M LCD display with buttons
L LCD display without buttons
N NONE
2-inch pipe installation bracket H Bracket
N NONE
Bracket material Q Carbon steel galvanized
S Stainless steel
Receiving liquid material SS Diaphragm: SUS316L, Other receiving liquid materials: stainless steel
HC Diaphragm: Hastelloy HC-276 Other liquid contact materials:stainless steel
TA Diaphragm: Tantalum Other Liquid Contact Materials: Stainless Steel
GD Diaphragm: gold-plated, other liquid contact materials: stainless steel
MD  Diaphragm: Monel Other liquid contact materials: stainless steel
PTFE Diaphragm: PTFE coating Other liquid contact materials: stainless steel
 Low Pressure Side Flange
Specification		  G1  GB/T9119-2010 (National Standard): 1.6MPa
 G2  HG20592 (Chemical Industry Standard): 1.6MPa
 G3  DIN (German Standard): 1.6MPa
 G4  ANSI (American Standard): 1.6MPa
 GX  Customized
 Low Pressure Side Flange Size  D1  DN25
 D2  DN50
 D3  DN80
 D4  DN100
 D5  Customized
 Flange Material  A  304
 B  316
 C  Customized
 Diaphragm Protrusion Length  X1  ***mm
 Capillary  DY  ***mm
