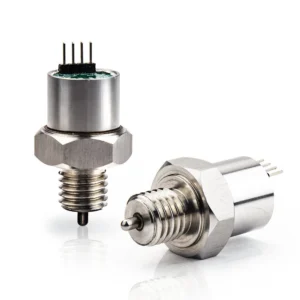

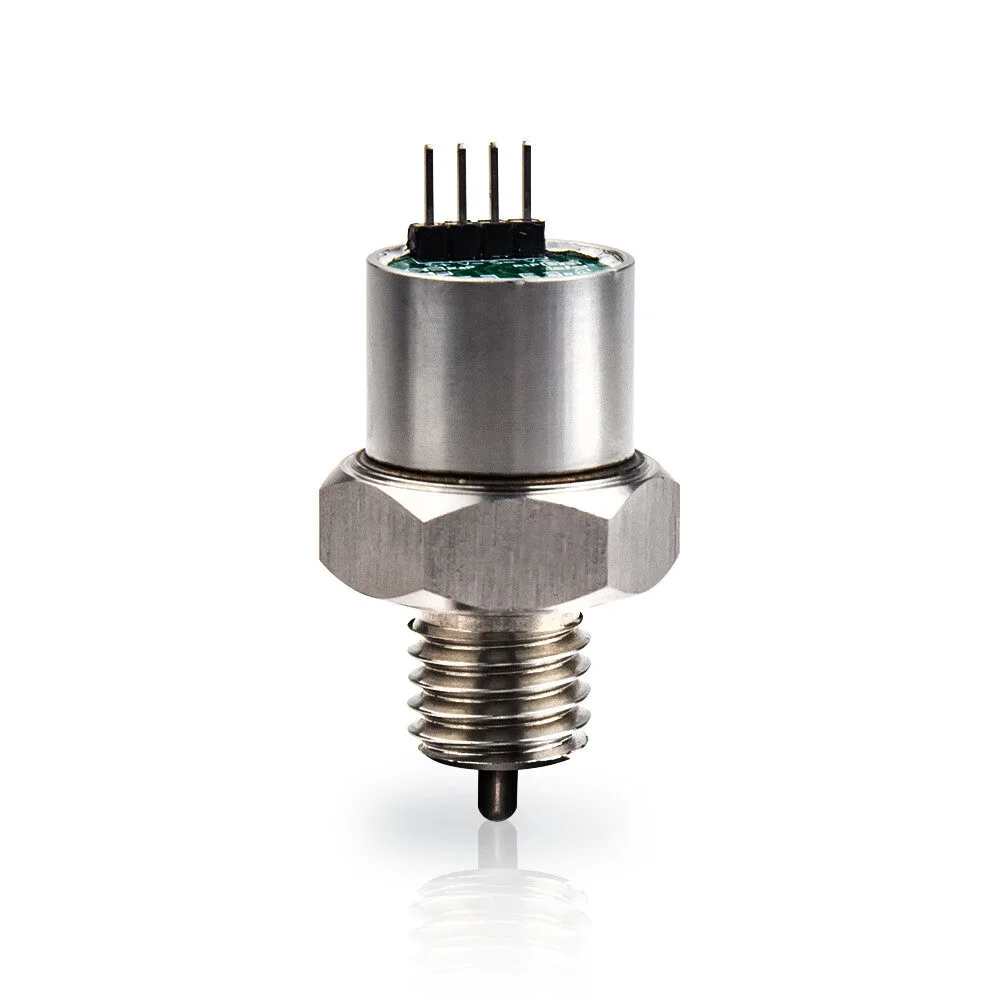

Constructed from robust stainless steel using advanced thick film technology, XDB107 integrated temperature and pressure sensor reliably performs under extreme temperatures and conditions, and directly measures corrosive media without isolation. It is ideal for continuous monitoring in challenging industrial environments.

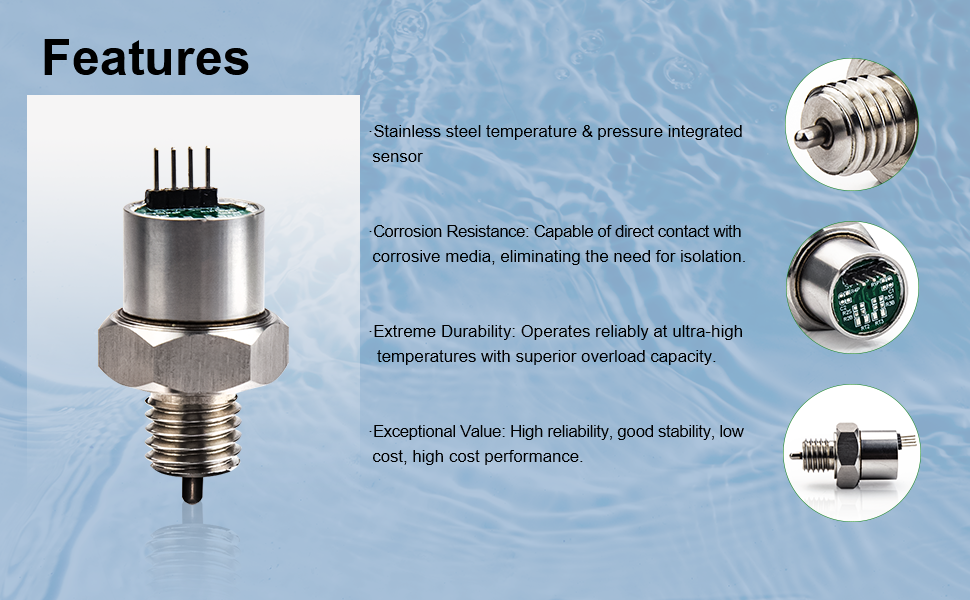

1. Stainless steel temperature & pressure integrated sensor
2. Corrosion Resistance: Capable of direct contact with corrosive media, eliminating the need for isolation.
3. Extreme Durability: Operates reliably at high temperatures with superior overload capacity.
4. Exceptional Value: High reliability, stability, low cost, high-cost performance.
1. Central air conditioning system.
2. New energy thermal management system, hydrogen energy system.
3. Automotive electronics.
4. Fuel cell stack system.
5. Unstable pressure systems such as air compressors and water production systems.

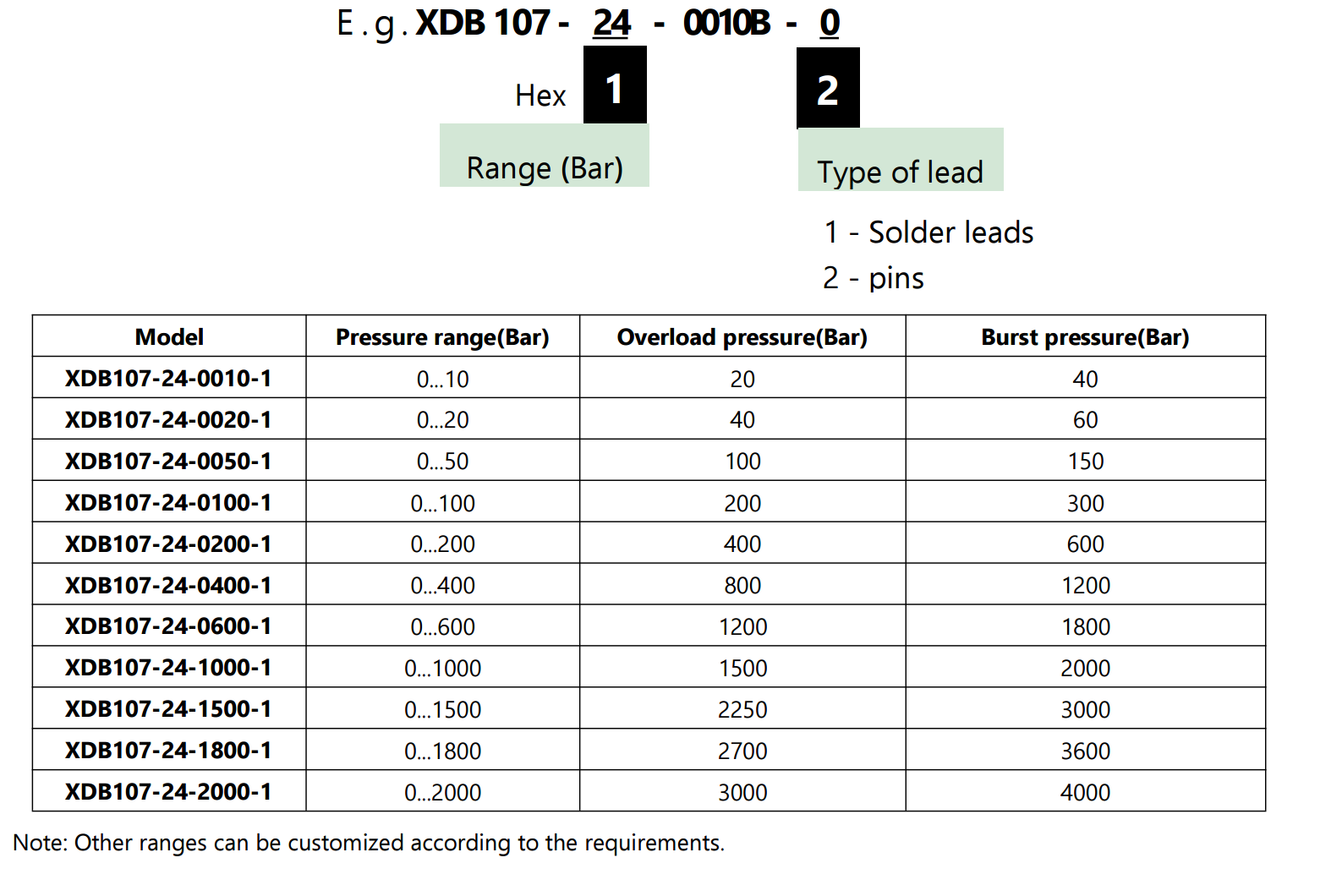

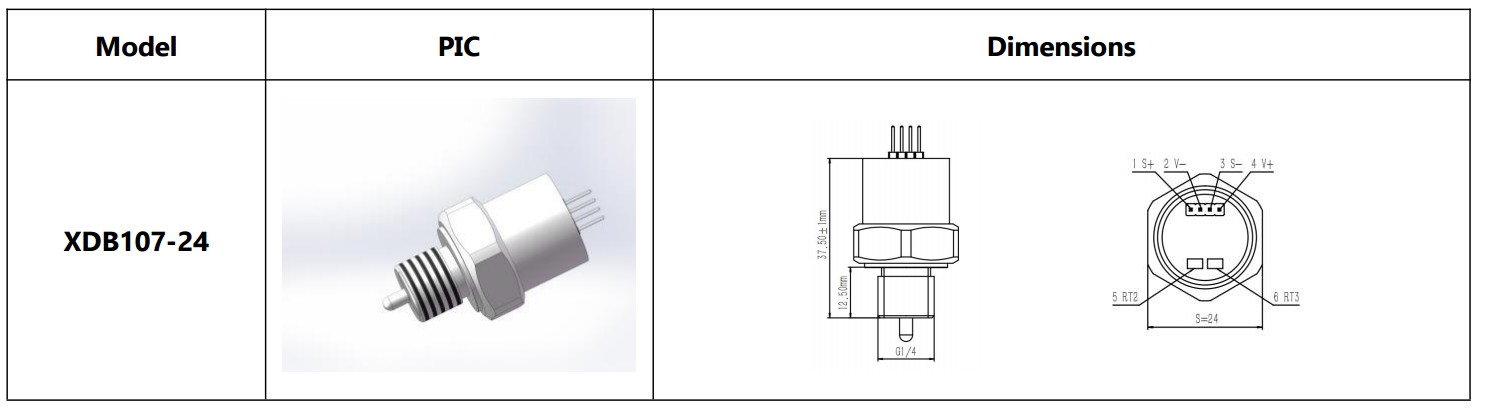

| Model | XDB107-24 |
| Power supply | Constant current 1.5mA; Constant voltage 5V (typical) |
| Bridge arm resistance | 5±2KΩ |
| Medium contact material | SS316L |
| Measuring range | 0-2000bar |
| Overload pressure | 150%FS |
| Burst pressure | 300%FS |
| Insulation resistance | 500M Ω (test conditions: 25℃, relative humidity of 75%, 100VDC) |
| Temperature range | -40~150℃ |
| Temperature sensing element | PT1000, PT100, NTC, LPTC… |
| Comprehensive error (including linearity, hysteresis, and repeatability) |
±1.0%FS |
| Zero point output | 0±2mV@5V Power supply |
| Sensitivity range (full range output) | 1.0-2.5mV/V@5V power supply (standard atmospheric environment) |
| Sensitivity range (full range output) Temperature characteristics |
≤±0.02%FS/℃(0~70℃) |
| Zero position, full range temperature drift |
A: ≤±0.02%FS/℃(0~70℃) |
| B: ≤±0.05% FS/℃(-10℃～85℃) | |
| C: ≤±0.1% FS/℃(-10℃～85℃) | |
| Zero-time drift characteristics | ≤±0.05% FS/year(standard atmospheric environment) |
| Working temperature | -40℃~150℃ |
| Long term stability | ≤±0.05% FS/year |
