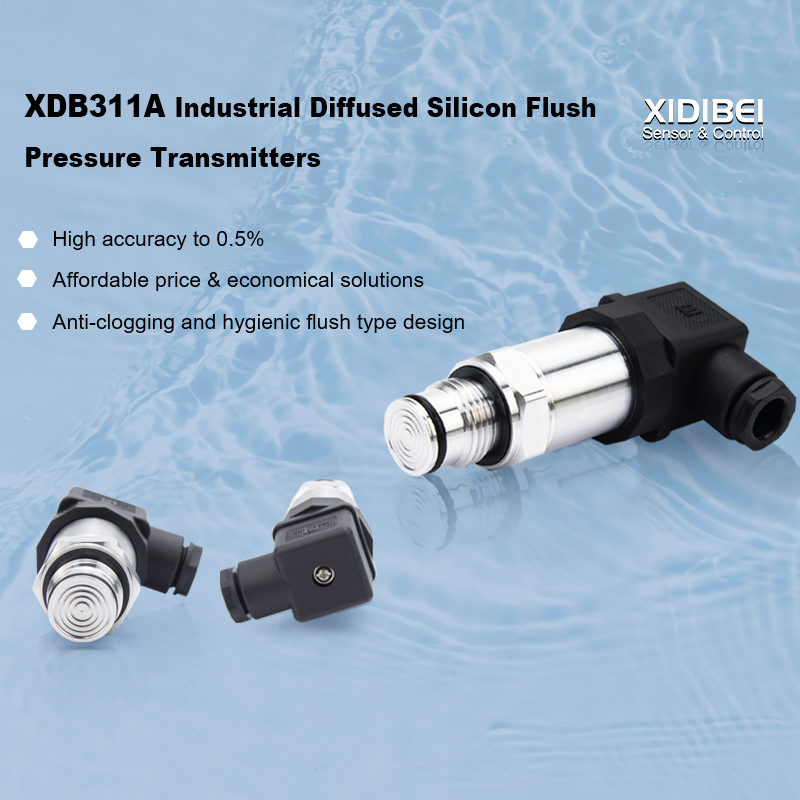

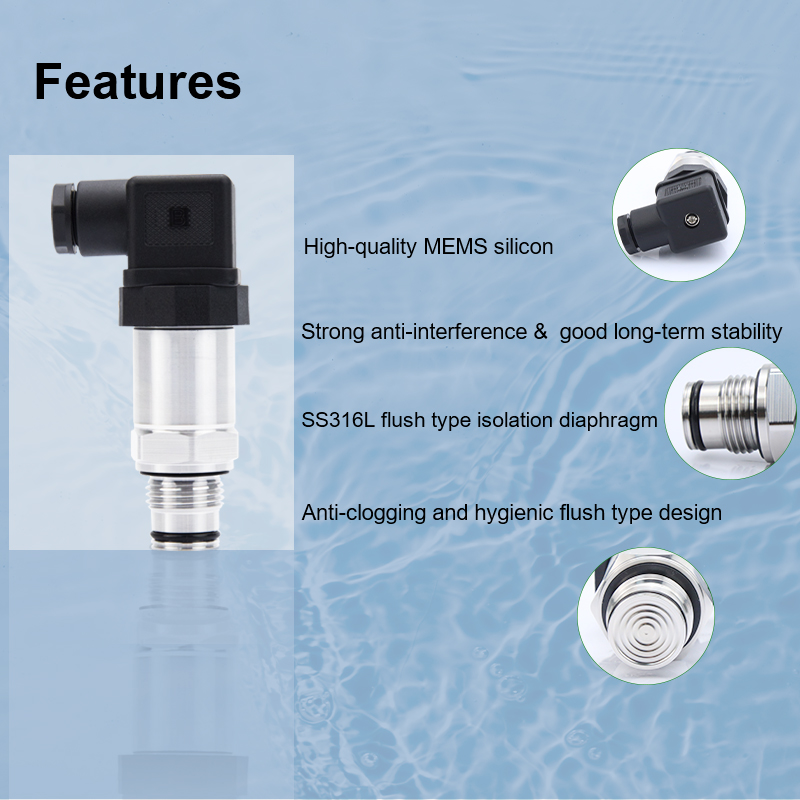

XDB311 series of pressure transmitters feature imported high-quality MEMS silicon in combination with the XIDIBEI’s unique design and years of process experience production plus SS316L flush type isolation diaphragm. The production process of each product has undergone strict aging, screening and testing processes to ensure its excellent quality and high reliability.
1.High accuracy to 0.5%

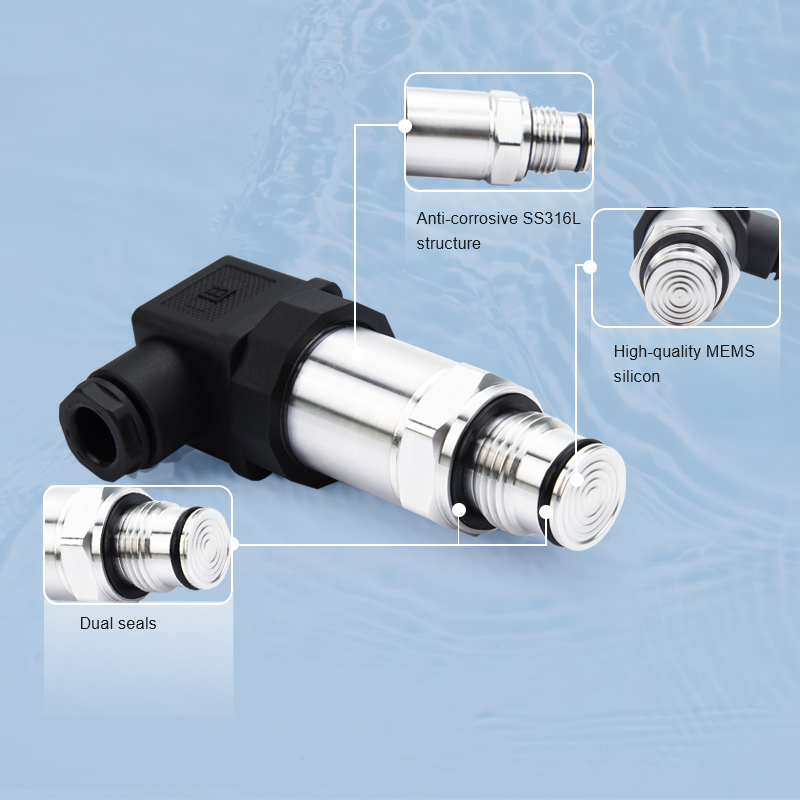

2.Small size and dual seals on the thread
3.Affordable price & economical solutions
4.Anti-clogging and hygienic flush type design

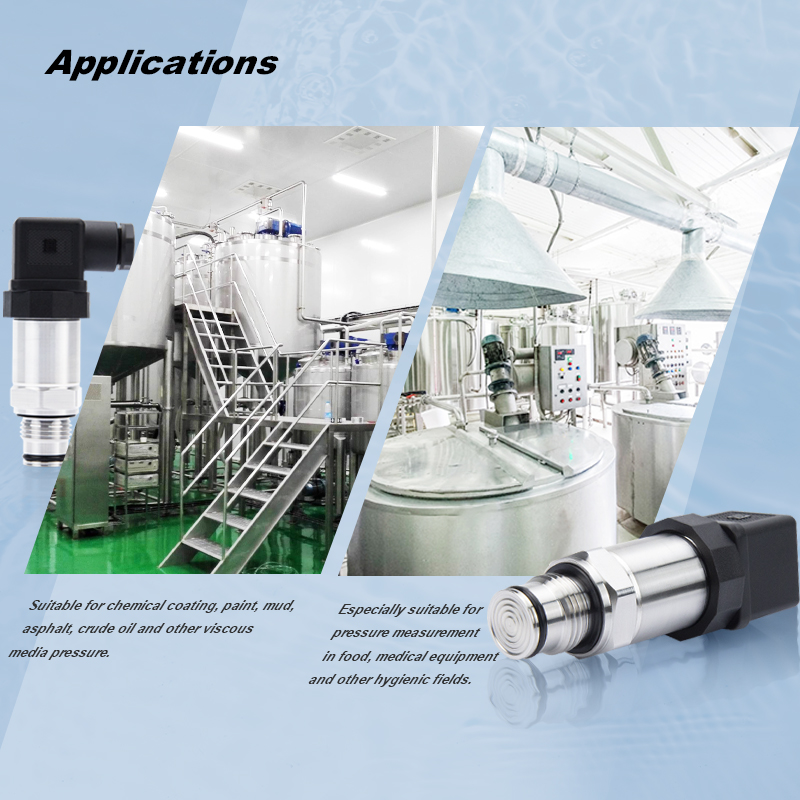

1.Suitable for chemical coating, paint, mud, asphalt, crude oil and other viscous media pressuremeasurement and control.
2.Especially suitable for pressure measurement infood, medical equipment and other hygienic fields.
| Pressure range | -100kPa～20kPa～10MPa | Long-term stability | ≤±0.2% FS/year |
| Input voltage | DC 9~36(24)V | Response time | ≤3ms |
| Output signal | 4-20mA / 0-10V / others | Overload pressure | 150% FS |
| Thread | G1/2 | Burst pressure | 300% FS |

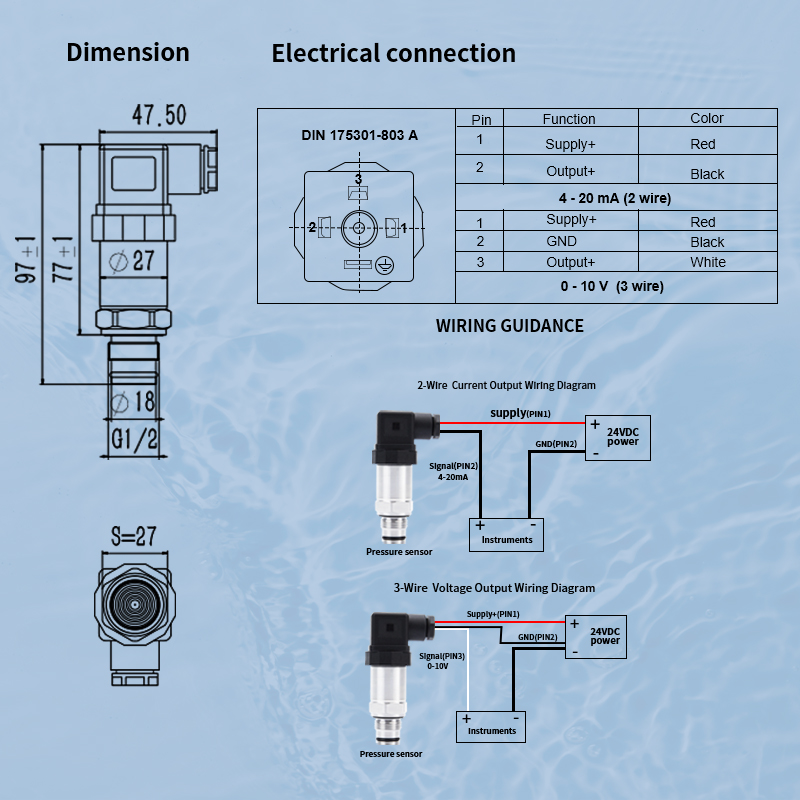

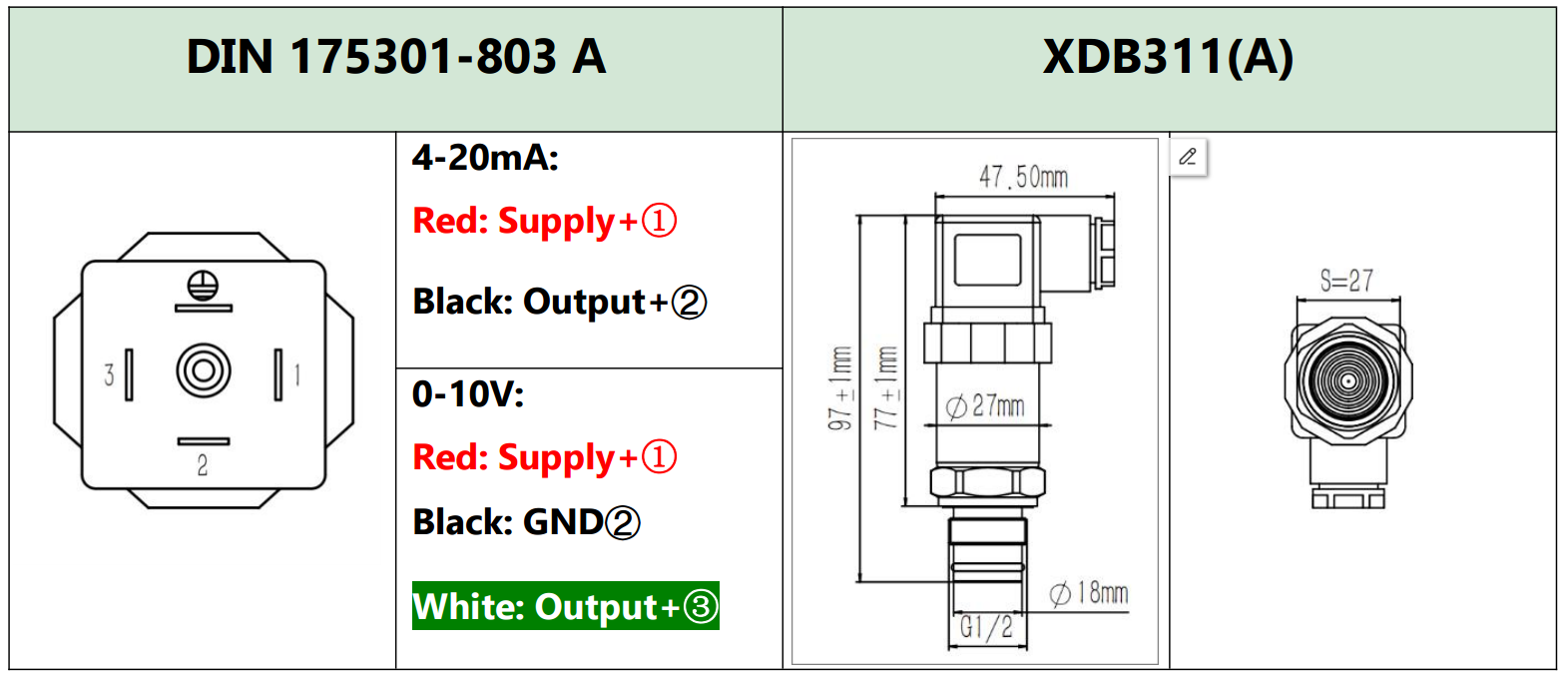

| Electrical connector | DIN 175301-803 A | Cycle life | 500,000 times |
| Insulation resistance | >100 MΩ at 500V | Housing material | 304 stainless steel |
| Operating temperature | -40 ~ 85 ℃ | Diaphragm material | 316L stainless steel |
| Compensation temperature |
0 ~ 70 ℃ | Protection class | IP65 |
| Operating current | ≤3mA | Explosion-proof class | Exia II CT6 |
| Temperature drift (zero&sensitivity) |
≤±0.03%FS/ ℃ | Weight | ≈0.21kg |
| Accuracy | ±0.5% /±1.0% | ||

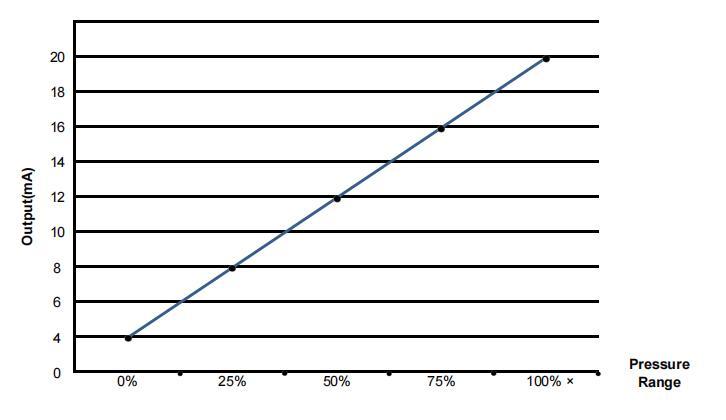

![XDB311(A) series Image[2]](https://j575.goodao.net/uploads/XDB311A-series-Image2.jpg)

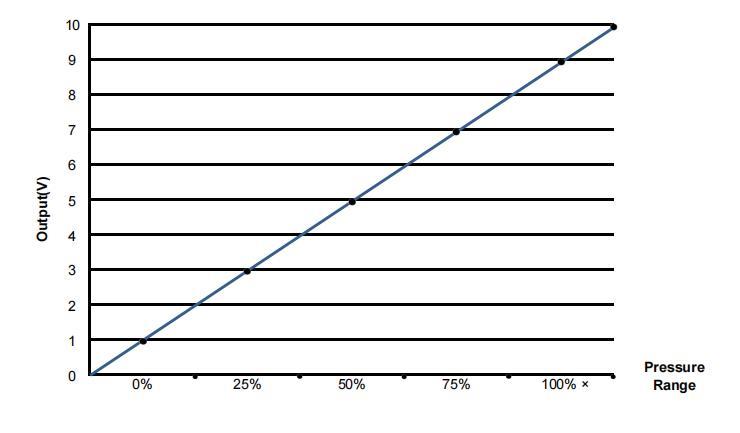

![11XDB311(A) series Image[2]](https://j575.goodao.net/uploads/11XDB311A-series-Image2.jpg)

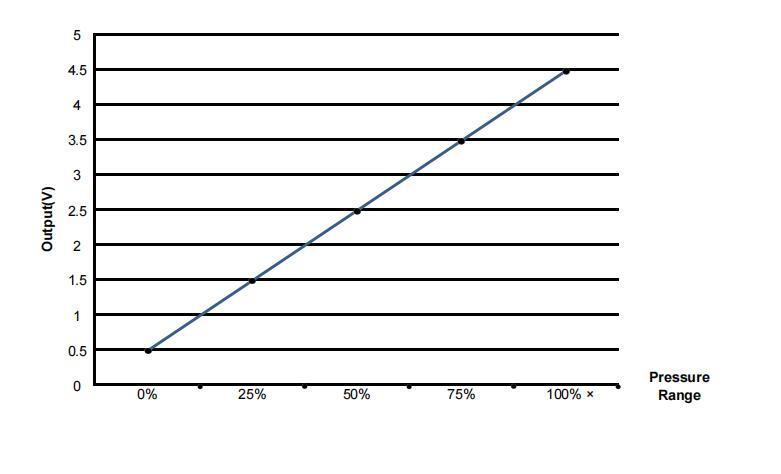

![12XDB311(A) series Image[2]](https://j575.goodao.net/uploads/12XDB311A-series-Image2.jpg)
