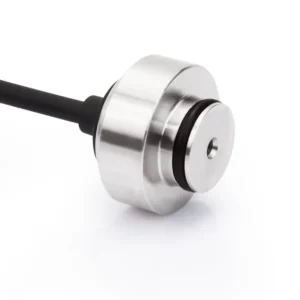

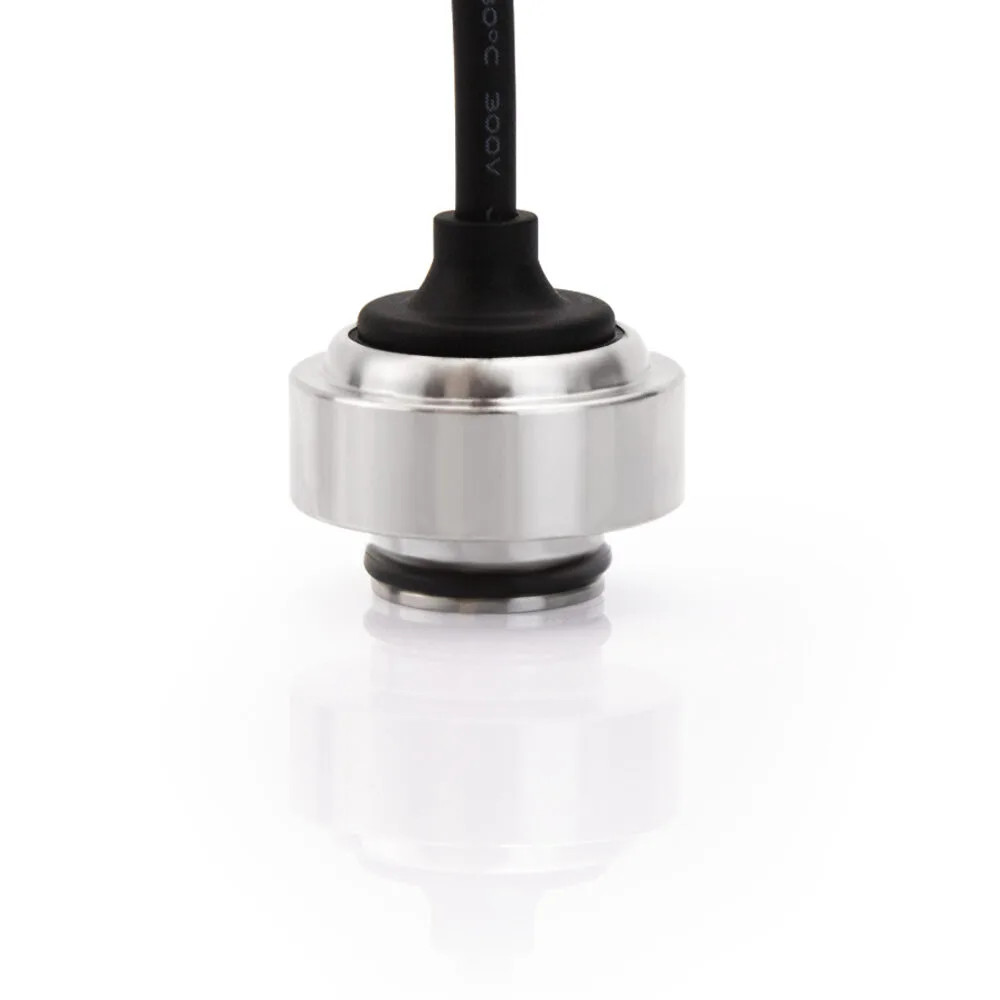

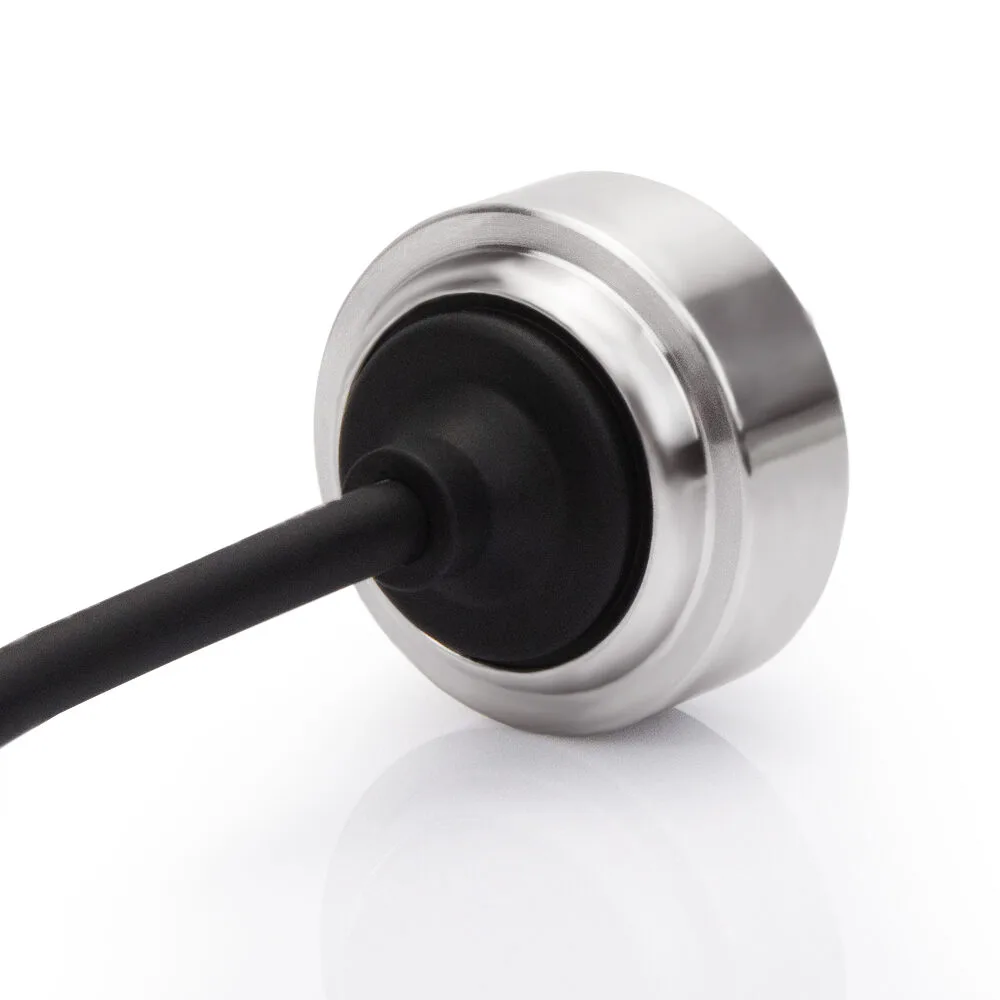

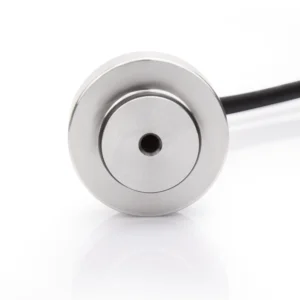

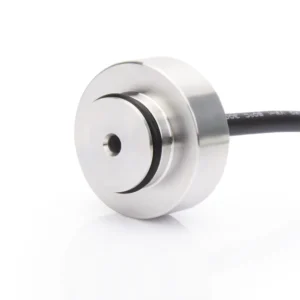

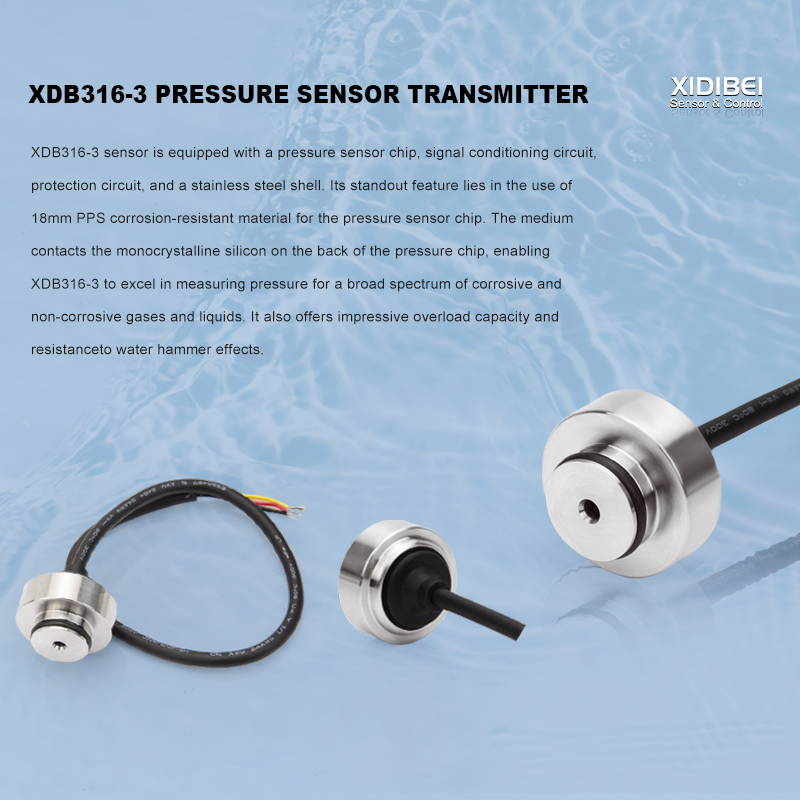

XDB316-3 transducer is equipped with a pressure sensor chip, signal conditioning circuit, protection circuit, and a stainless steel shell. Its standout feature lies in the use of 18mm PPS corrosion- resistant material for the pressure sensor chip. The medium contacts the monocrystalline silicon on the back of the pressure chip, enabling XDB316-3 to excel in measuring pressure for a broad spectrum of corrosive and non-corrosive gases and liquids. It also offers impressive overload capacity and resistance to water hammer effects.

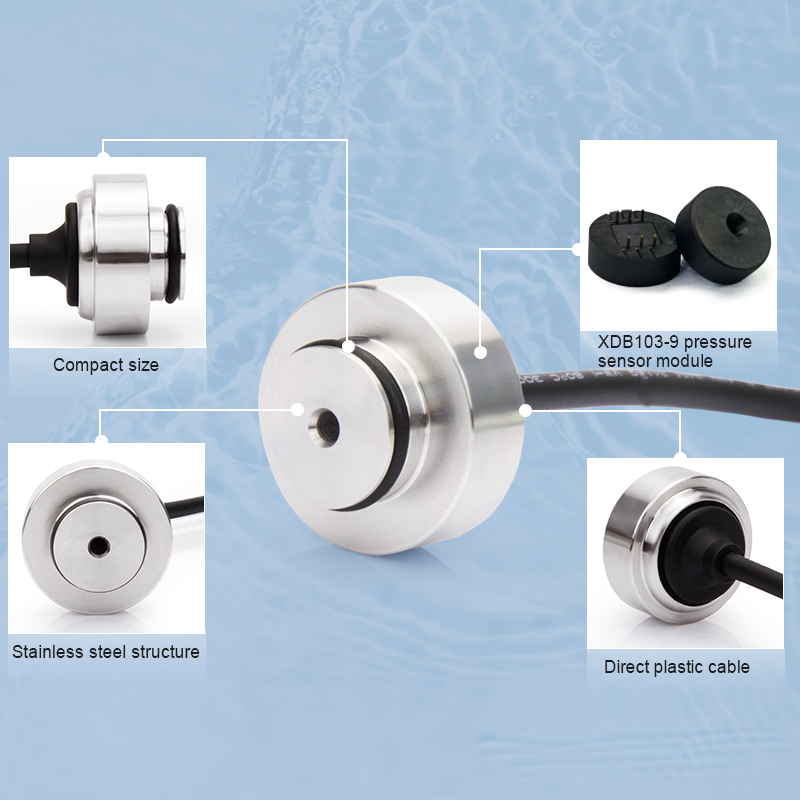

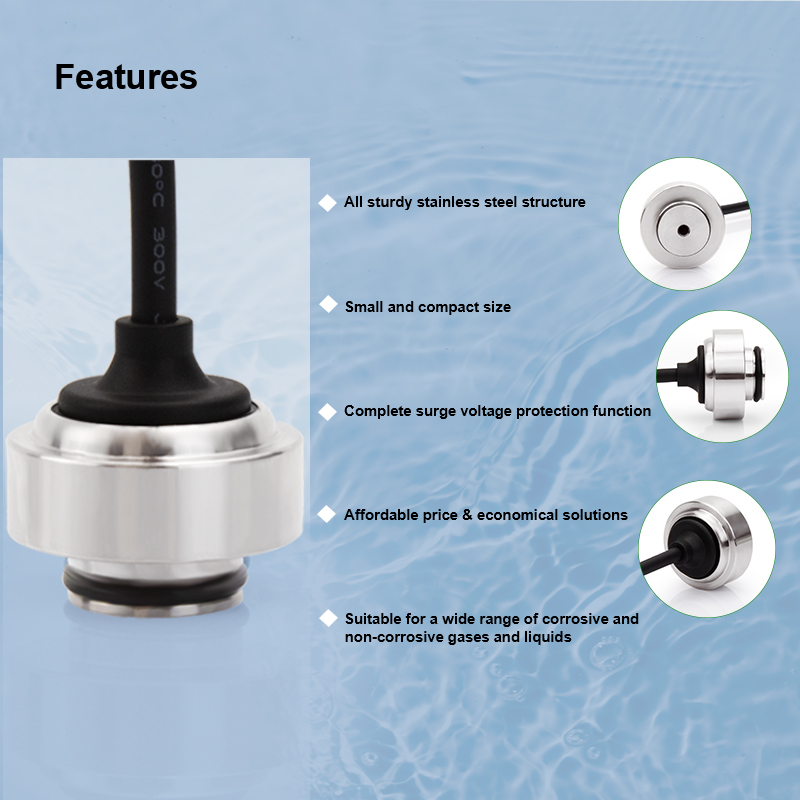

1.All sturdy stainless steel structure
2.Small and compact size
3.Complete surge voltage protection function
4.Affordable price & economical solutions
5.Provide OEM, flexible customization

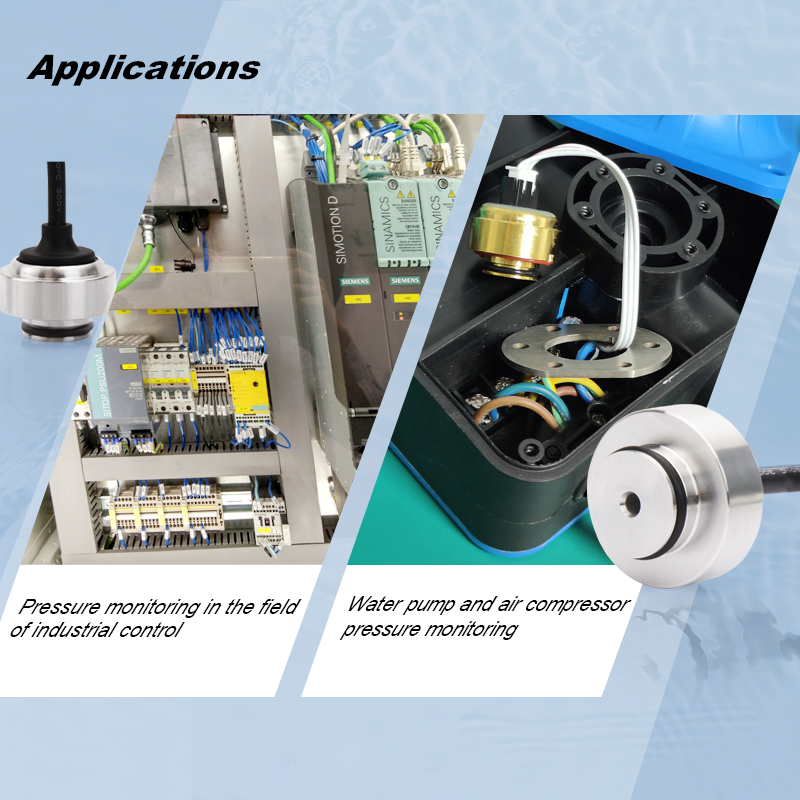

1.Water pump and air compressor pressure monitoring
2.Air conditioning and oil pressure monitoring
3.Pressure monitoring in the field of industrial control
1.Pressure range: 0-2.5MPa
2.Power supply: 5-12V
3.Output signal: 0.5-4.5V

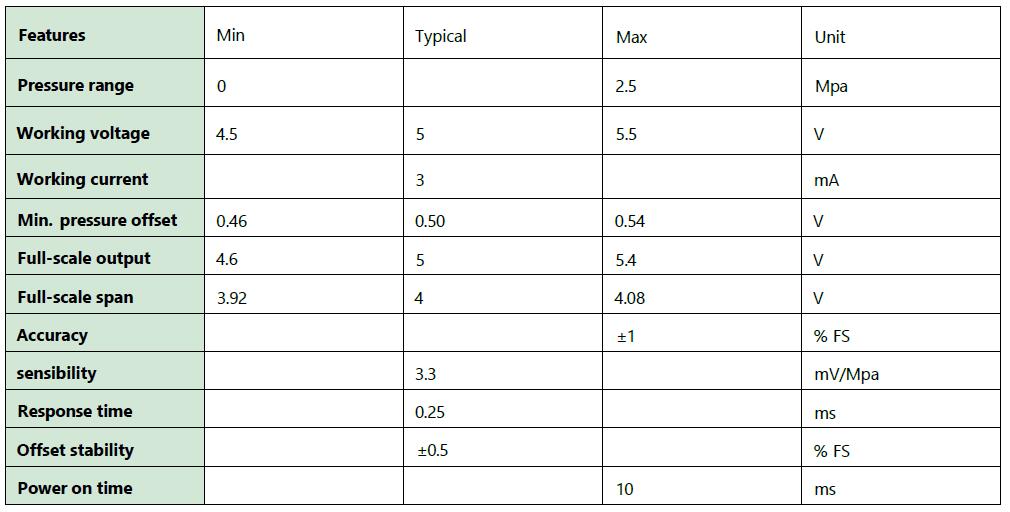

1. Within this voltage range, the module provides a linear output.
2. Min pressure offset: Module output voltage at minimum pressure in the range.
3. Full-scale output: Module output voltage at maximum pressure in the range.
4. Full-scale span: The difference between max and min pressure range output.
5. Accuracy includes: linear, temperature hysteresis, pressure hysteresis, full-scale temperature, zero position temperature, and other errors.
6. Response time: Time to change from 10% to 90% of the theoretical value.
7. Offset stability: Module output offset after 1000 hours of pulse pressure and temperature cycling.
