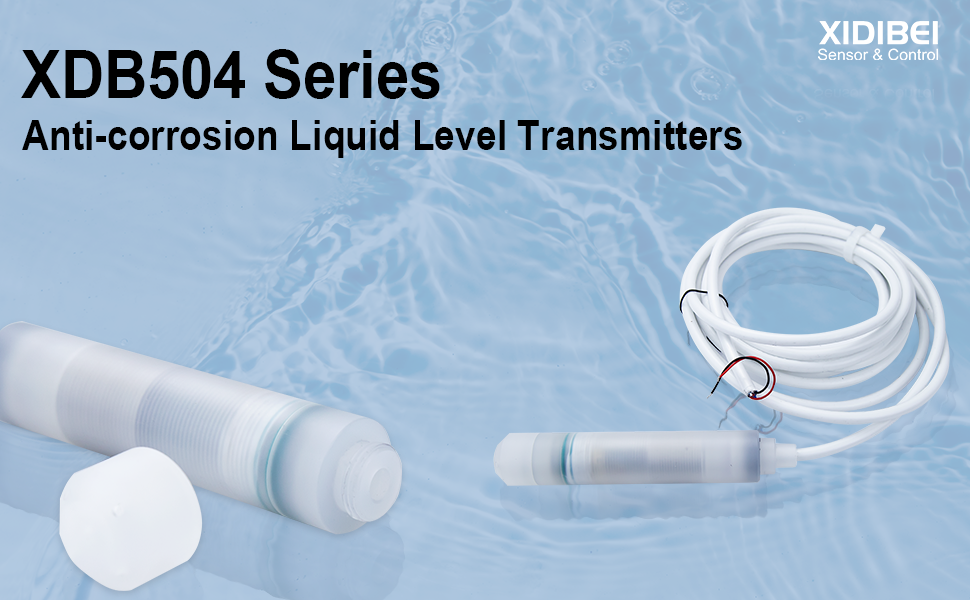

XDB504 Series Anti-corrosion Liquid level Pressure Transmitters

Short Description:

XDB504 series submersible anti-corrosion liquid level pressure transmitters feature PVDF material resistant to the acid liquid. They are designed to be overload-resistant, impact-resistant, and strong corrosion-resistant while providing high stability and accuracy in measurement. These transmitters are suitable for various corrosive industrial applications and media.


  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 1
  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 2
  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 3
  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 4
  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 5
  • XDB504 Series Anti-corrosion Liquid level Pressure Transmitters 6

Product Detail

Product Tags

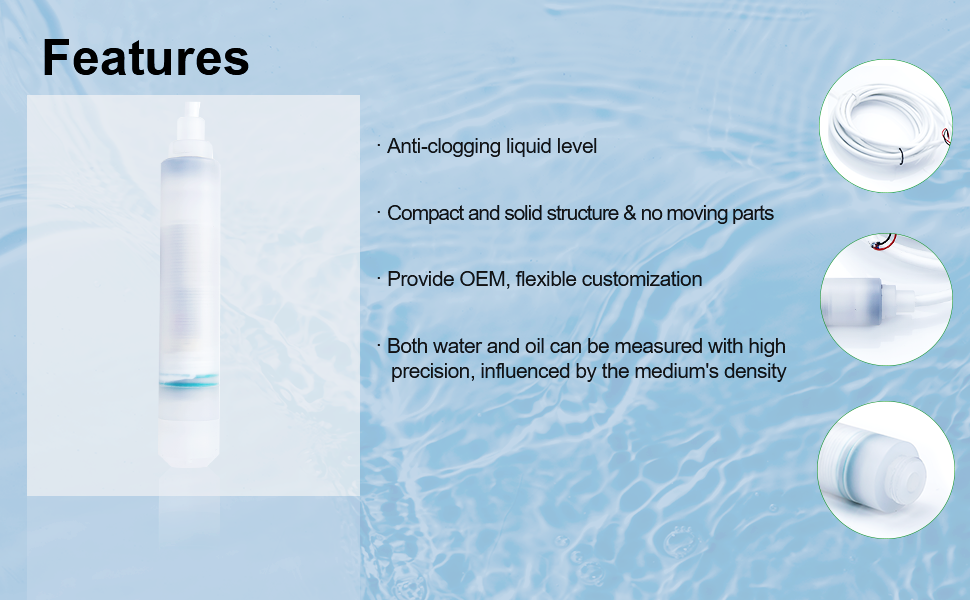

Features

1. FEP cable, PVDF probe, FEP diaphragm

2. Acid and alkali corrosion resistance, thick material, aging resistance, and long service life

3. High precision to 0.5%

4. IP68 waterproof protection

Typical applications

1. Industry field process liquid level detection and control
2. Hydrological monitoring and control
3. Chemical medical equipment

anti-corrosion leveltransmitter (1)
anti-corrosion leveltransmitter (2)
anti-corrosion leveltransmitter (4)
anti-corrosion leveltransmitter (3)

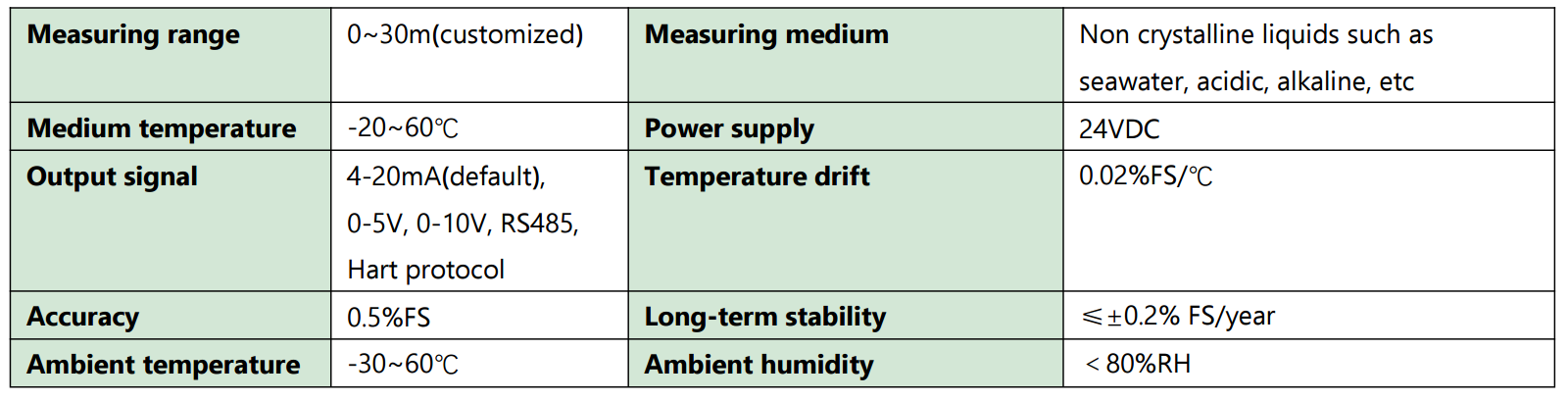

Parameters

QQ截图20240403115412

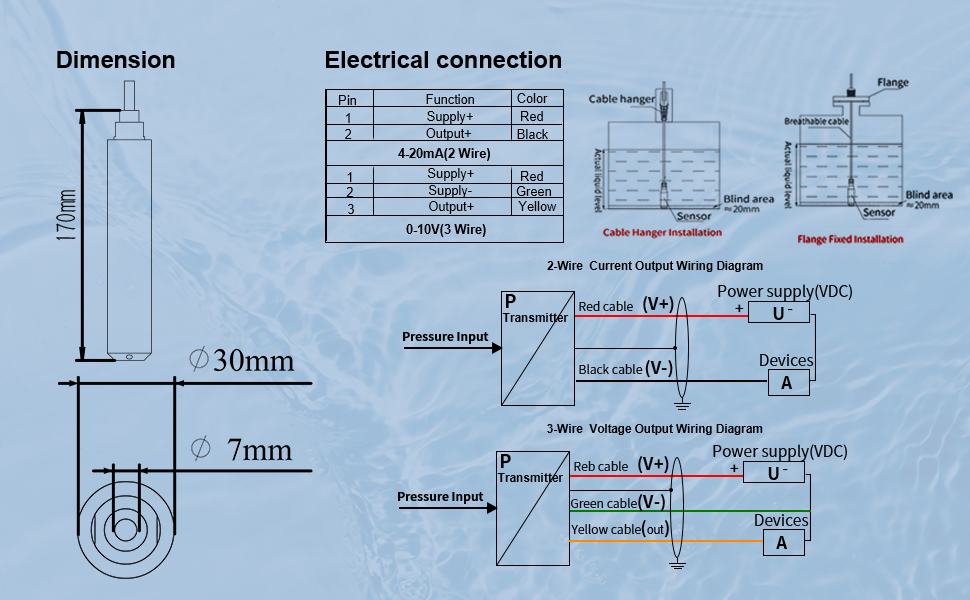

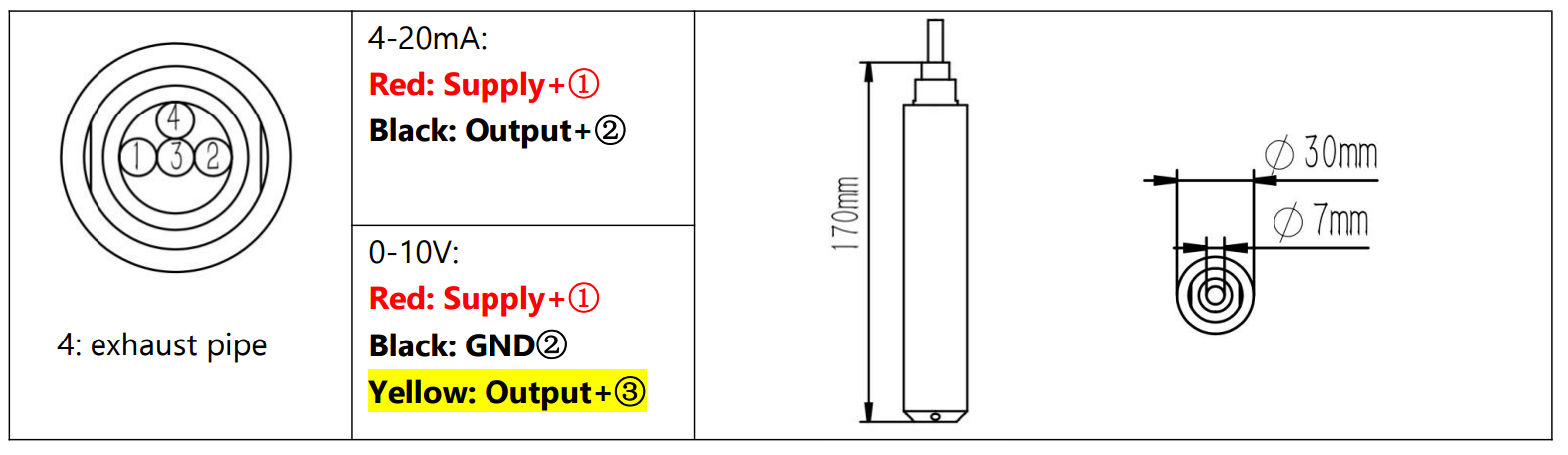

Dimensions(mm) & electrical connection

QQ截图20240403115627

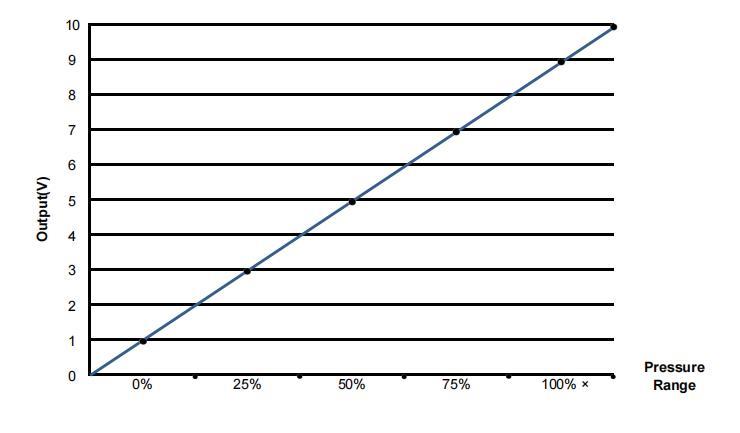

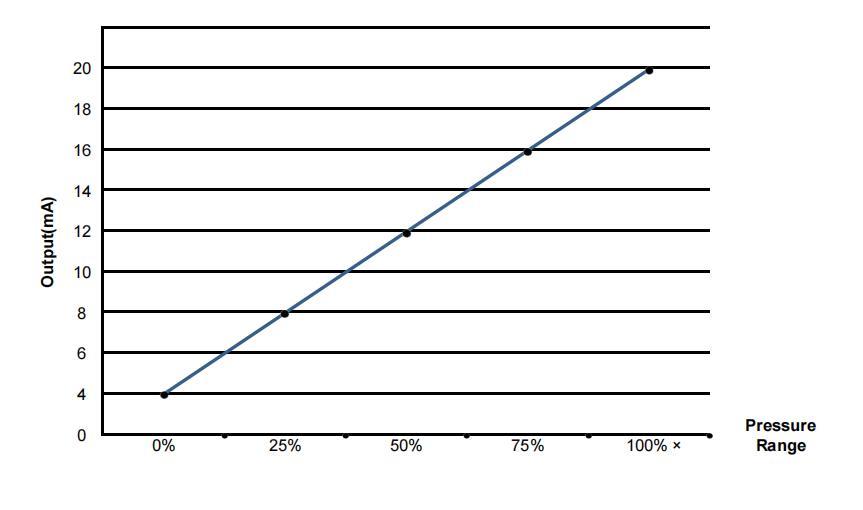

Output Curvee

XDB504 series Image[2]
XDB504 series Image[1]

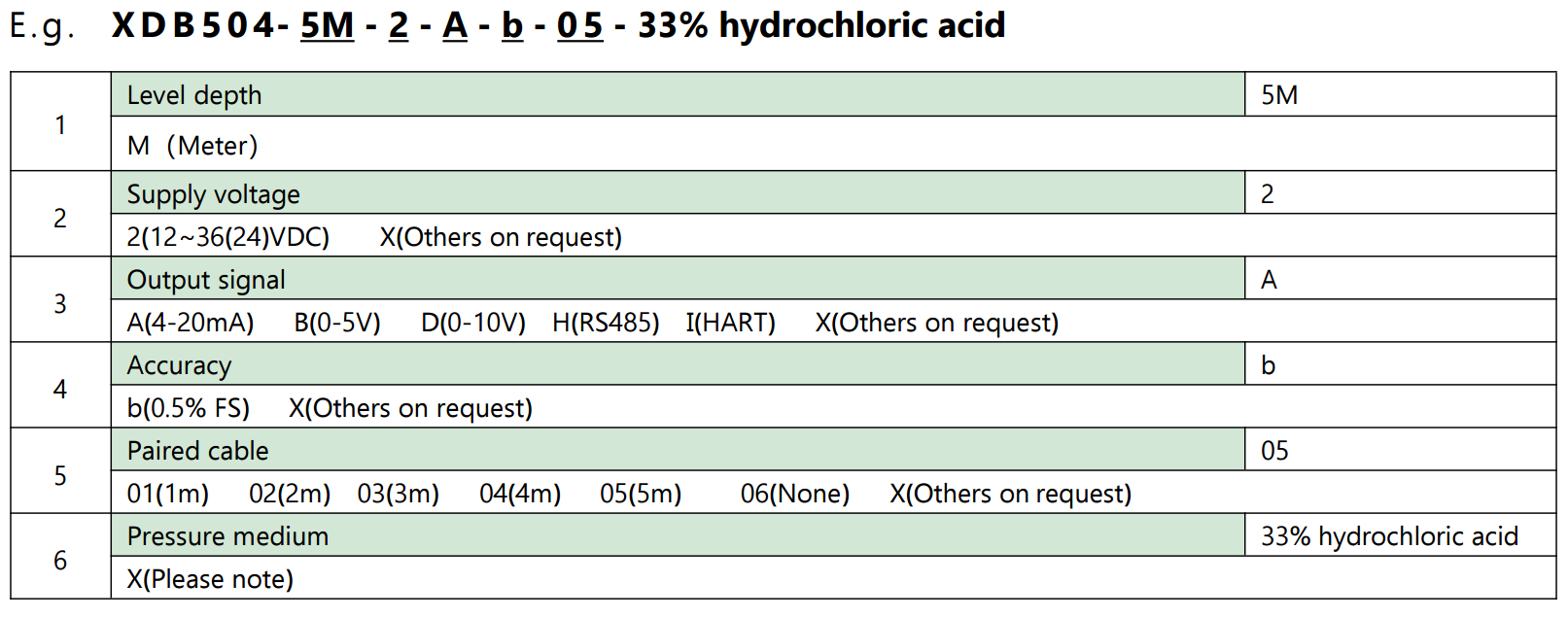

How to order

QQ截图20240403115831
