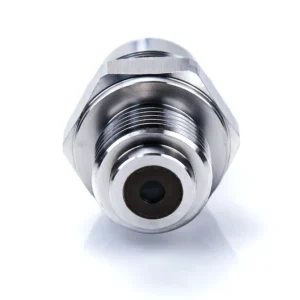

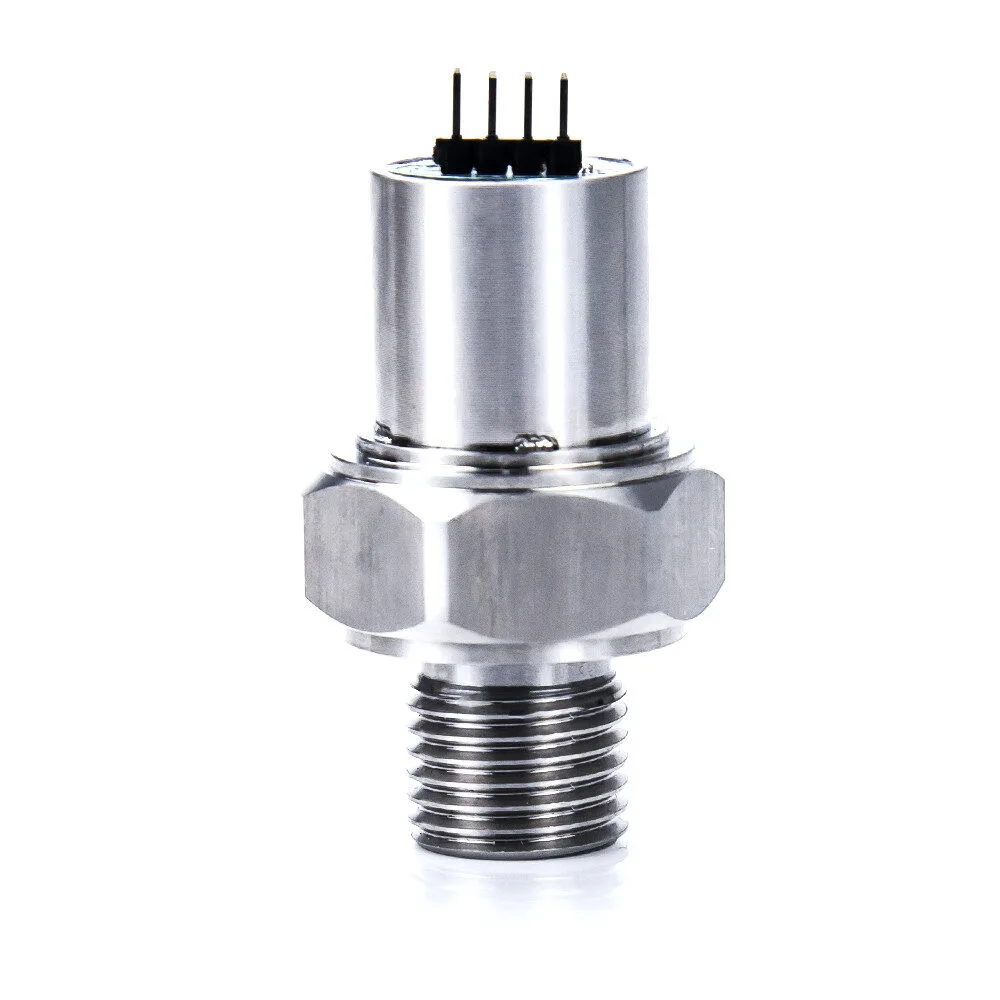

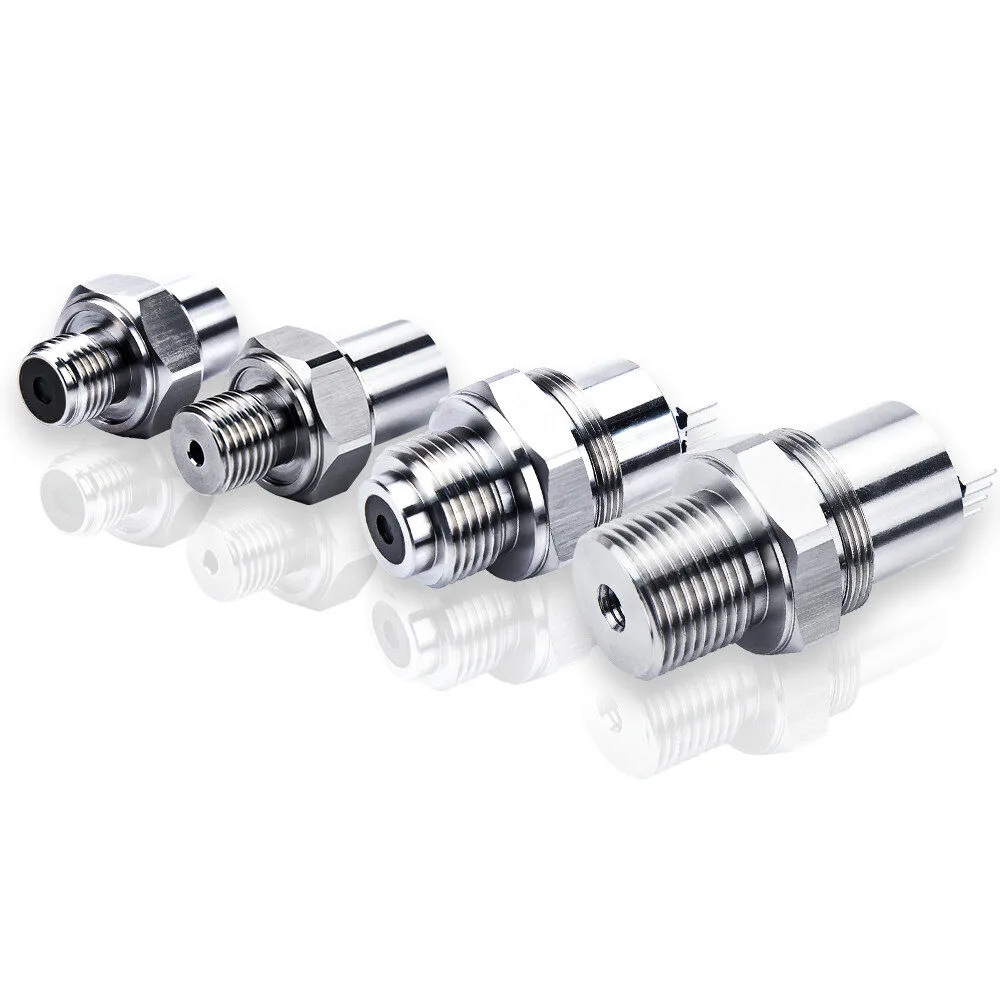

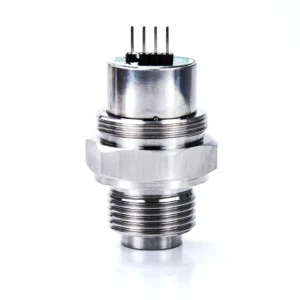

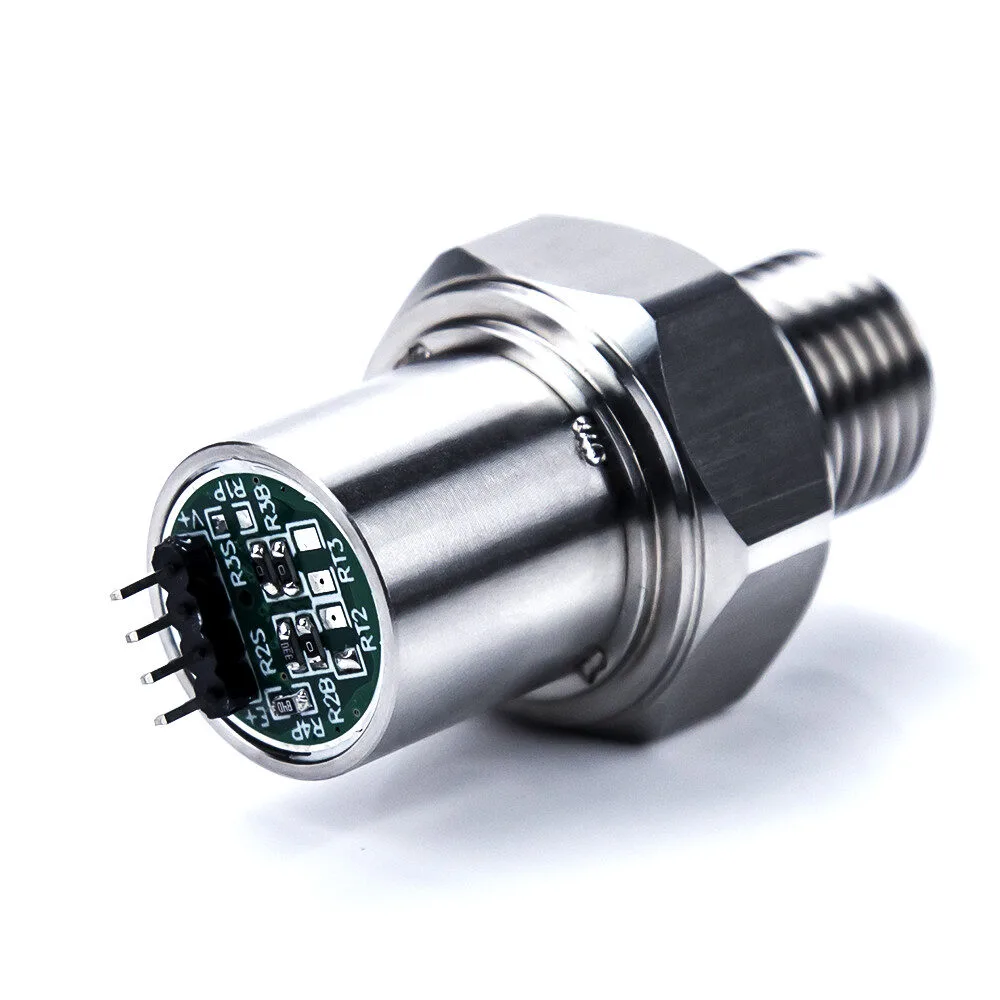

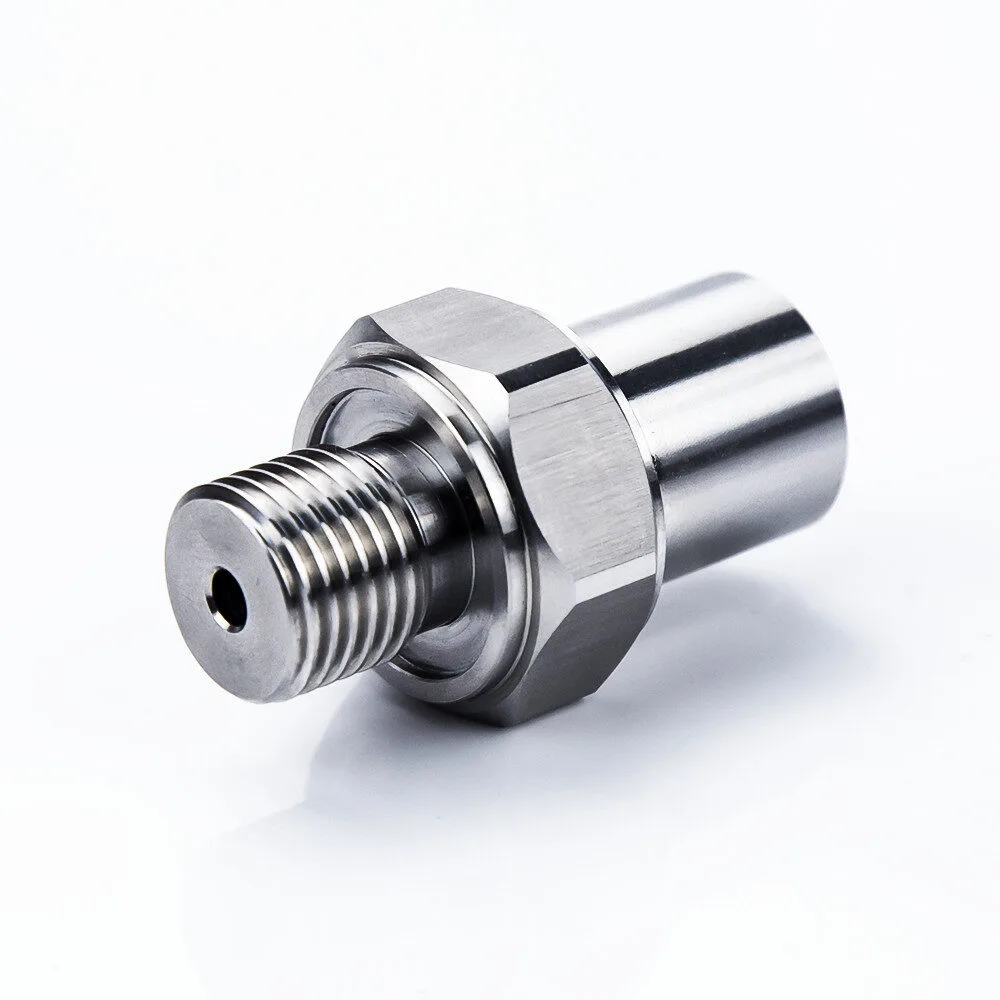

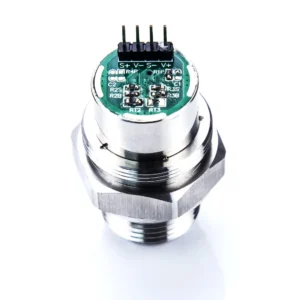

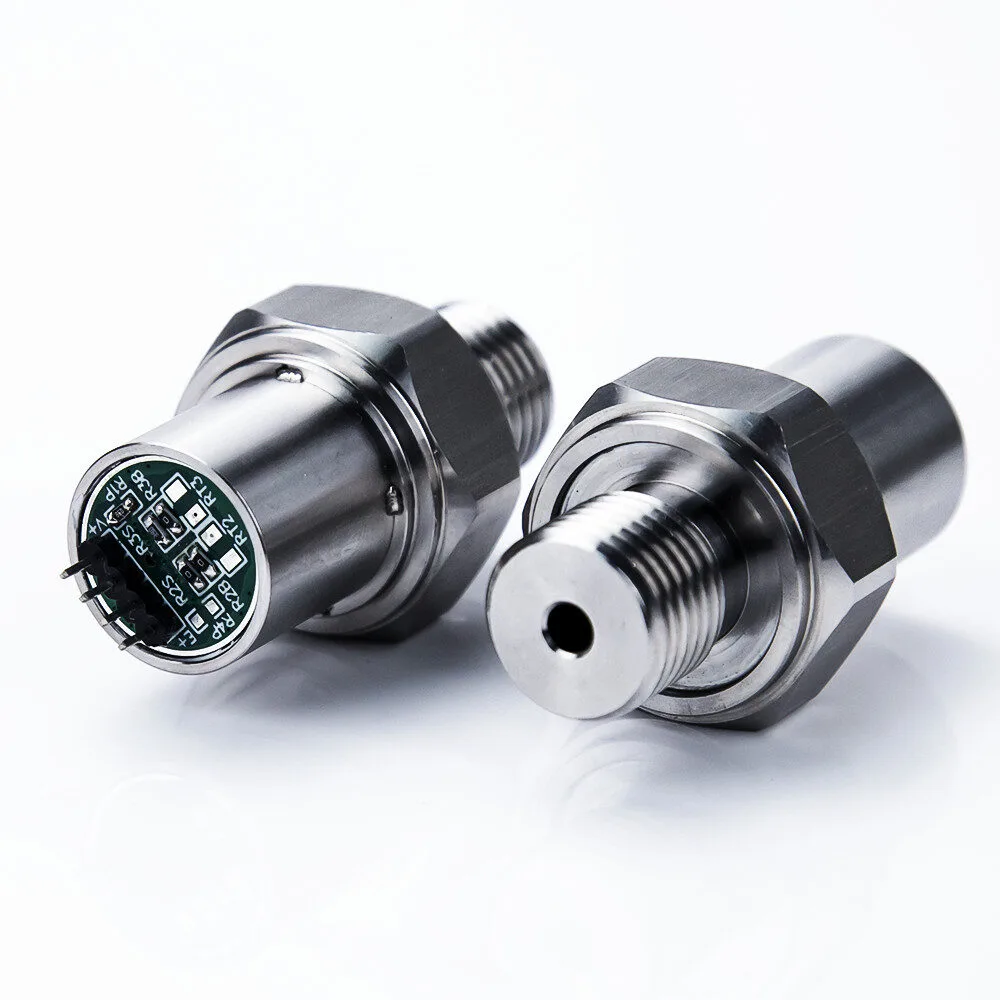

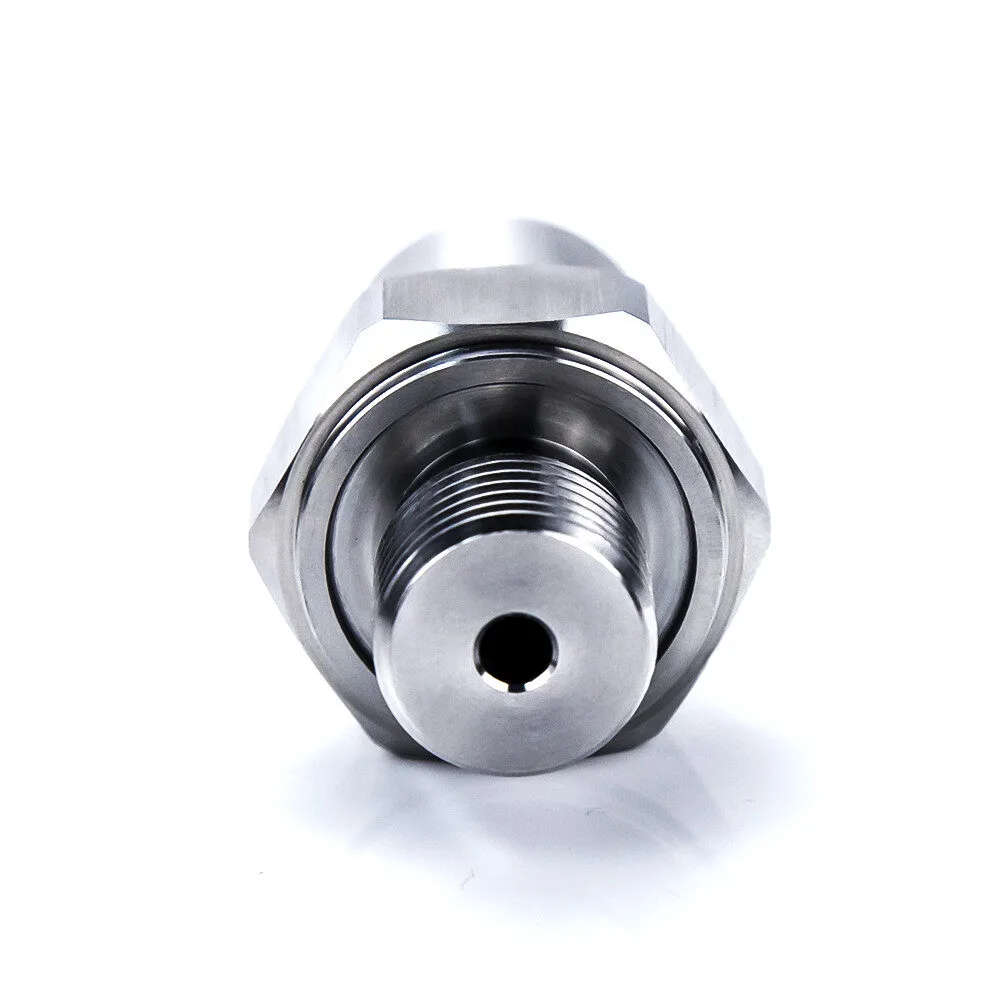

XDB106 stainless steel pressure sensor module is designed for pressure detection and measurement, transforming pressure into output signals according to set rules. It features components made with high-temperature sintering for enhanced durability against temperature, humidity, and mechanical wear, ensuring stability in industrial settings. XDB106 includes a special PCB for zero-point calibration and temperature compensation.
1. High Precision Integration: Utilizes alloy diaphragm and stainless steel with piezoresistive technology.
2. Corrosion Resistance: Capable of direct contact with corrosive media, eliminating the need for isolation.
3. Extreme Durability: Operates reliably at high temperatures with superior overload capacity.
4. Exceptional Value: High reliability, good stability, low cost, high cost performance.
1. Heavy Machinery: cranes, excavators, tunneling machines, and piling equipment.
2. Petrochemical Sector: Essential for the reliable operation of petrochemical processing equipment.
3. Automotive Electronics: Integral in advanced automotive systems for enhanced performance and safety.
4. Construction and Safety Equipment: Ideal for pump trucks, fire safety devices, and road construction machinery.
5. Pressure Management Systems: Perfect for stabilizing pressure in air compressors and water production facilities.
| Model | XDB106 | XDB106P |
| Power supply | Constant current 1.5mA; Constant voltage 5V (typical) | |
| Bridge arm resistance | 5±2KΩ | 10±2KΩ |
| Medium contact material | SS316L | |
| Range range | 0-2000bar | |
| Overload pressure | 200%FS | |
| Burst pressure | 300%FS | |
| Insulation resistance | 500M Ω (test conditions: 25℃, relative humidity of 75%, 100VDC) | |
| Working frequency | 0~1KHz | |
| Accuracy | ±1.0%FS | |
| Temperature compensation | 0℃~70℃ | |
| Comprehensive error (including linearity, hysteresis, and repeatability) |
1.0%FS | |
| Zero point output | 0±2mV@5V Power supply | |
| Sensitivity range (full range output) | 1.0-2.8mV/V@5V power supply (standard atmospheric environment) |
2-5mV/V@5V power supply (standard atmospheric environment) |
| Sensitivity range (full range output) Temperature characteristics |
≤±0.02%FS/℃(0~70℃) | |
| Zero position, full range temperature drift |
A: ≤±0.02%FS/℃(0~70℃) B: ≤±0.05% FS/℃(-10℃～85℃) C: ≤±0.1% FS/℃(-10℃～85℃) |
|
| Zero-time drift characteristics | ≤±0.05% FS/year(standard atmospheric environment) | |
| Working temperature | -40℃~150℃ | |
| Long term stability | ≤±0.05% FS/year | |
