Product

XDB605-S1 Series Intelligent Single Flange Transmitter

Short description

The intelligent monocrystalline silicon pressure transmitter uses an advanced German MEMS technology-produced monocrystalline silicon sensor chip and a globally unique monocrystalline silicon suspended design, achieving internationally leading high accuracy and excellent stability under extreme overpressure conditions. Embedded with a German signal processing module, it perfectly combines static pressure and temperature compensation, providing extremely high measurement precision and long-term stability across a wide range of static pressures and temperature changes. The intelligent monocrystalline silicon pressure transmitter can accurately measure pressure and convert it into a 4-20mA DC output signal. This transmitter can be operated locally via three buttons, or through a universal handheld operator, configuration software, displaying and configuring without affecting the 4-20mA DC output signal.

Send email to us

Features

1. Measurement Range: 0 to 40 MPa.

2. High Accuracy: ±0.075% calibration precision.

3. Overpressure Tolerance: Up to 60 MPa.

4. Environmental Adaptability: Intelligent static and temperature compensation.

5. Minimized Measurement Errors: Optimized error control in diverse conditions.

6. User Interface: 5-digit backlit LCD with multiple display functions.

7. Ease of Operation: Three-button quick access for adjustments.

8. Material Durability: Corrosion-resistant construction.

9. Self-Diagnostics: Comprehensive diagnostic capabilities.

Typical applications

1. Oil and Petrochemicals: Pipeline and storage tank monitoring.

2. Chemical Industry: Precise liquid level and pressure measurements.

3. Electric Power: High-stability pressure monitoring.

4. Urban Gas: Critical infrastructure pressure and level control.

5. Pulp and Paper: Resistant to chemicals and corrosion.

6. Steel and Metals: High precision in furnace pressure and vacuum measurement.

7. Ceramics: Stability and accuracy in harsh environments.

8. Mechanical Equipment and Shipbuilding: Reliable control in stringent conditions.

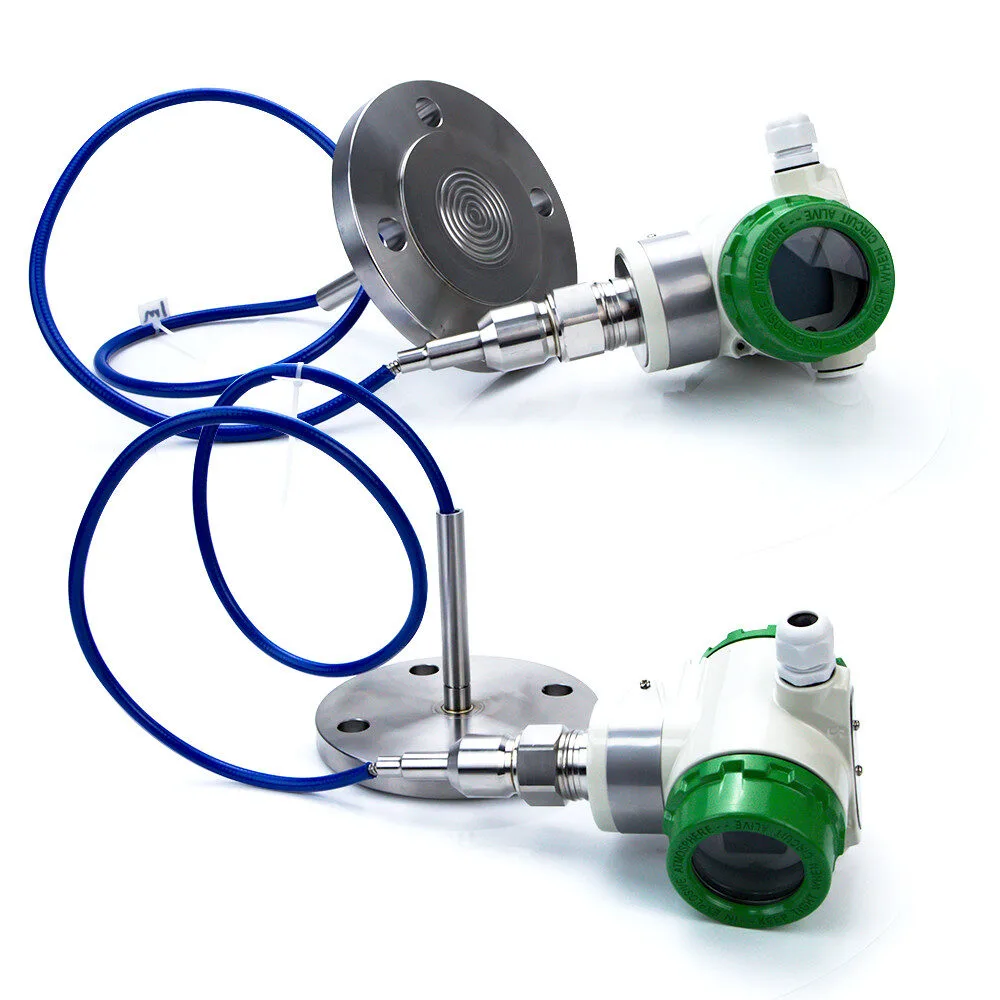

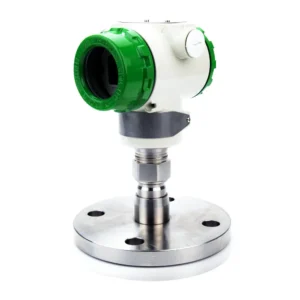

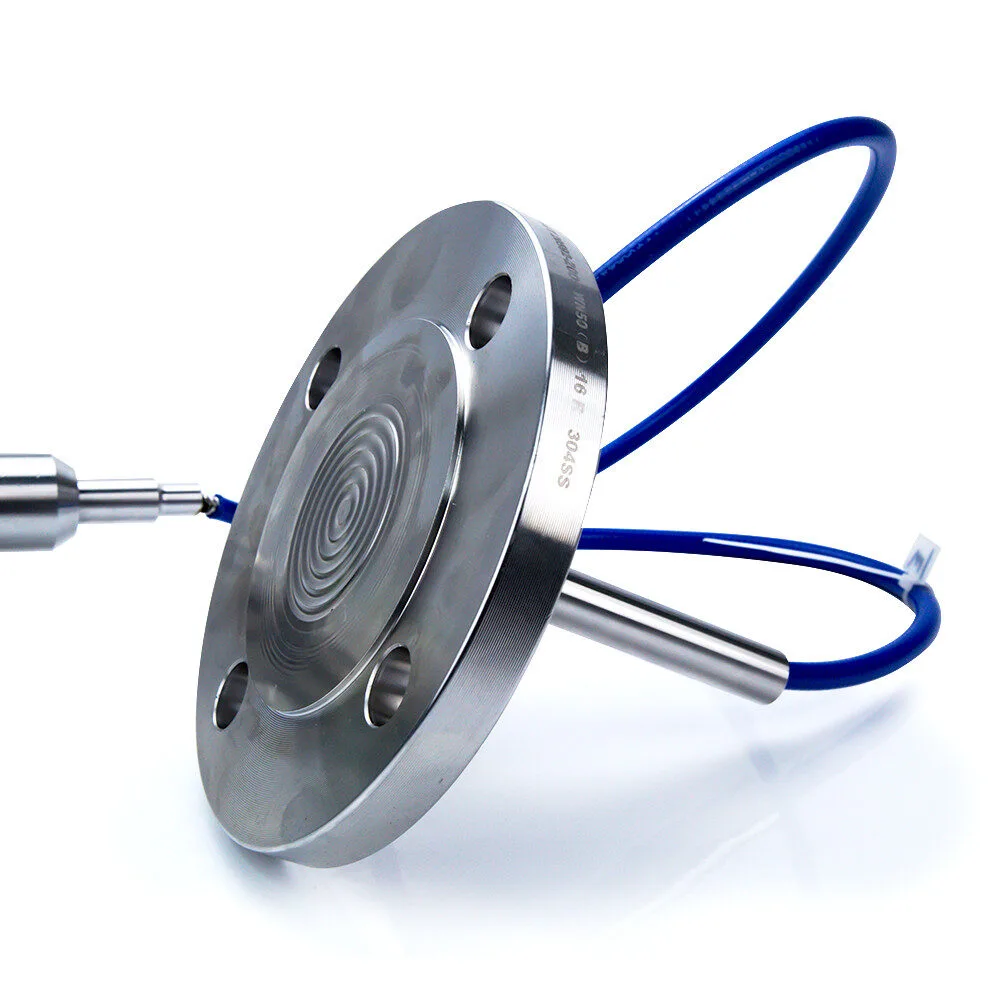

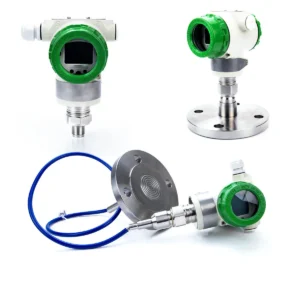

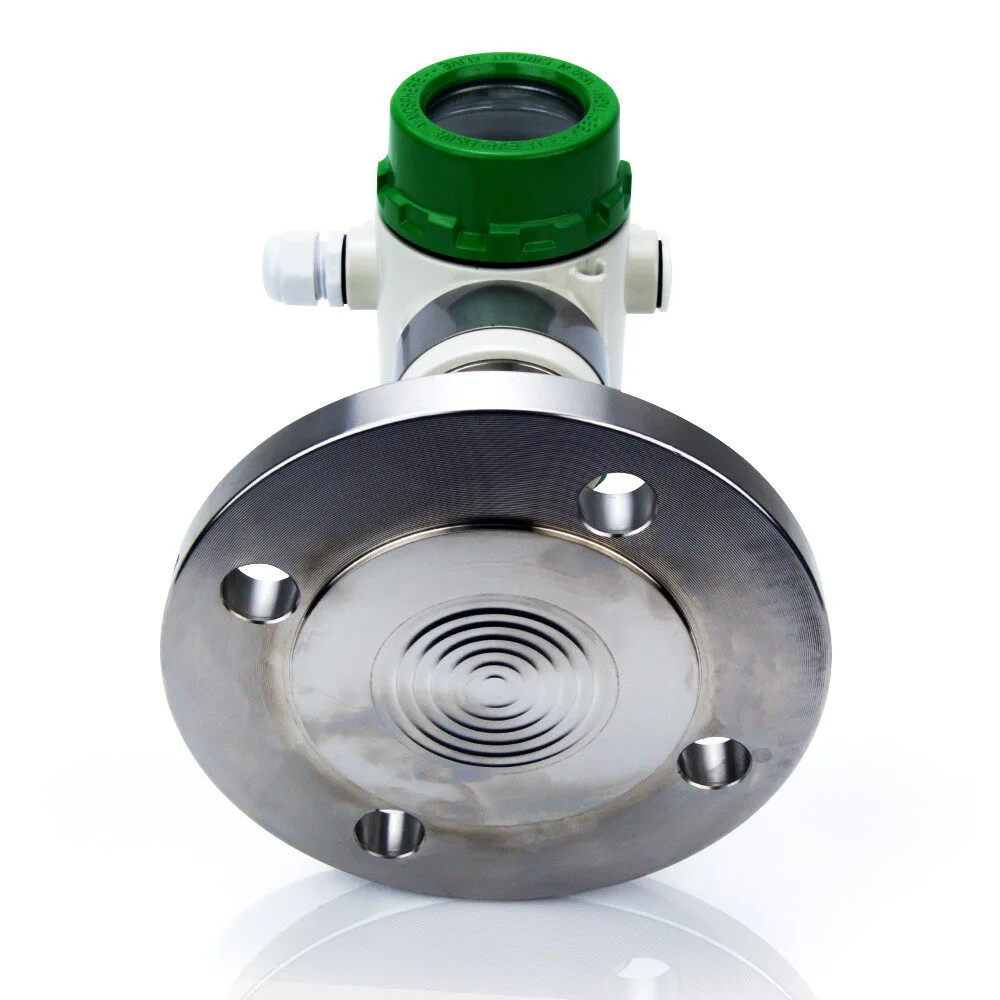

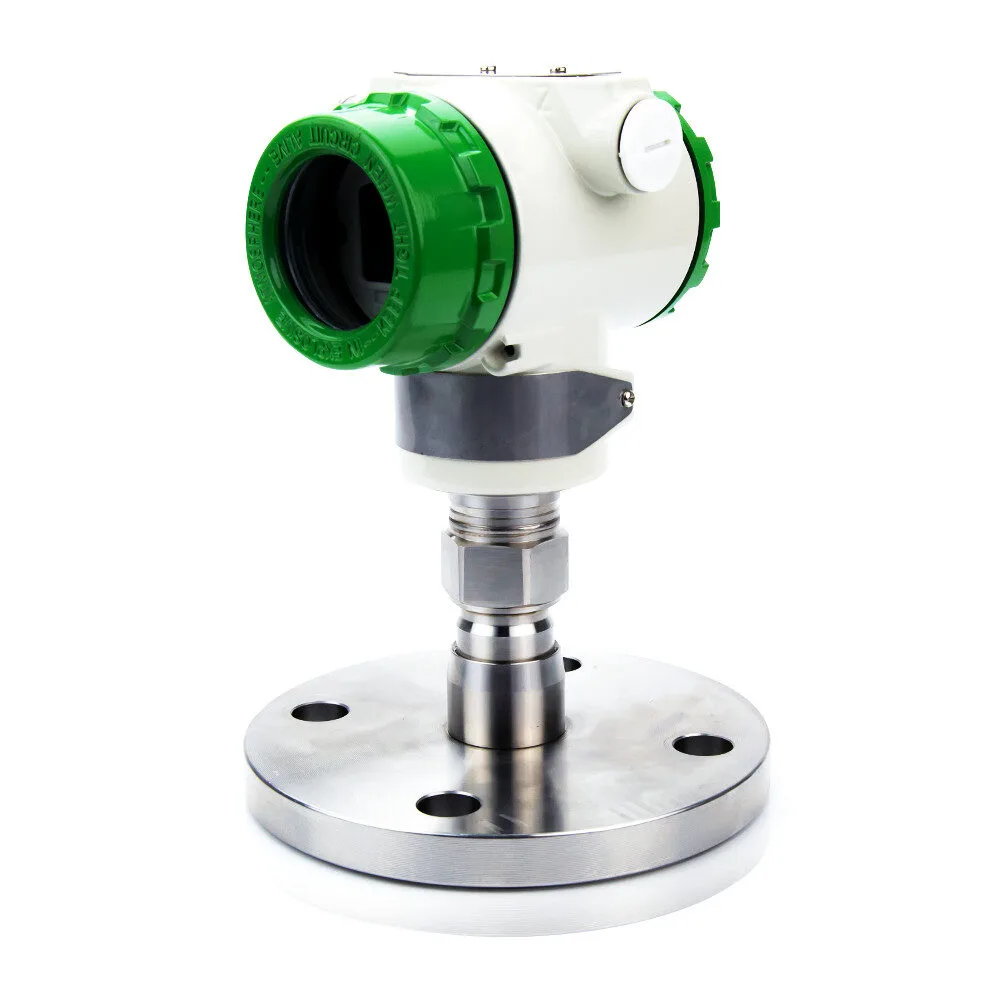

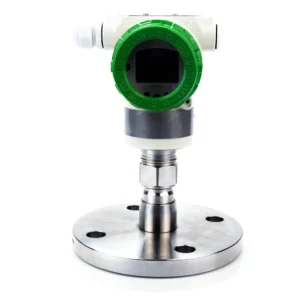

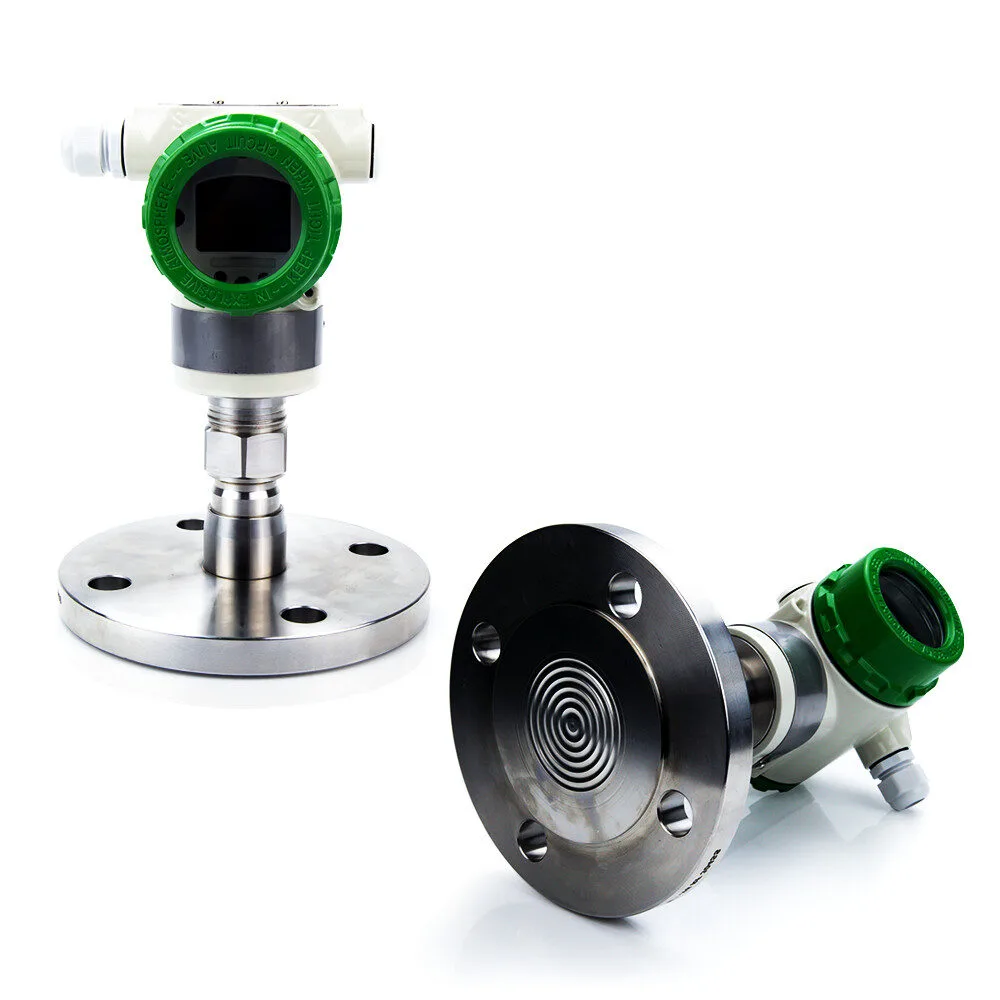

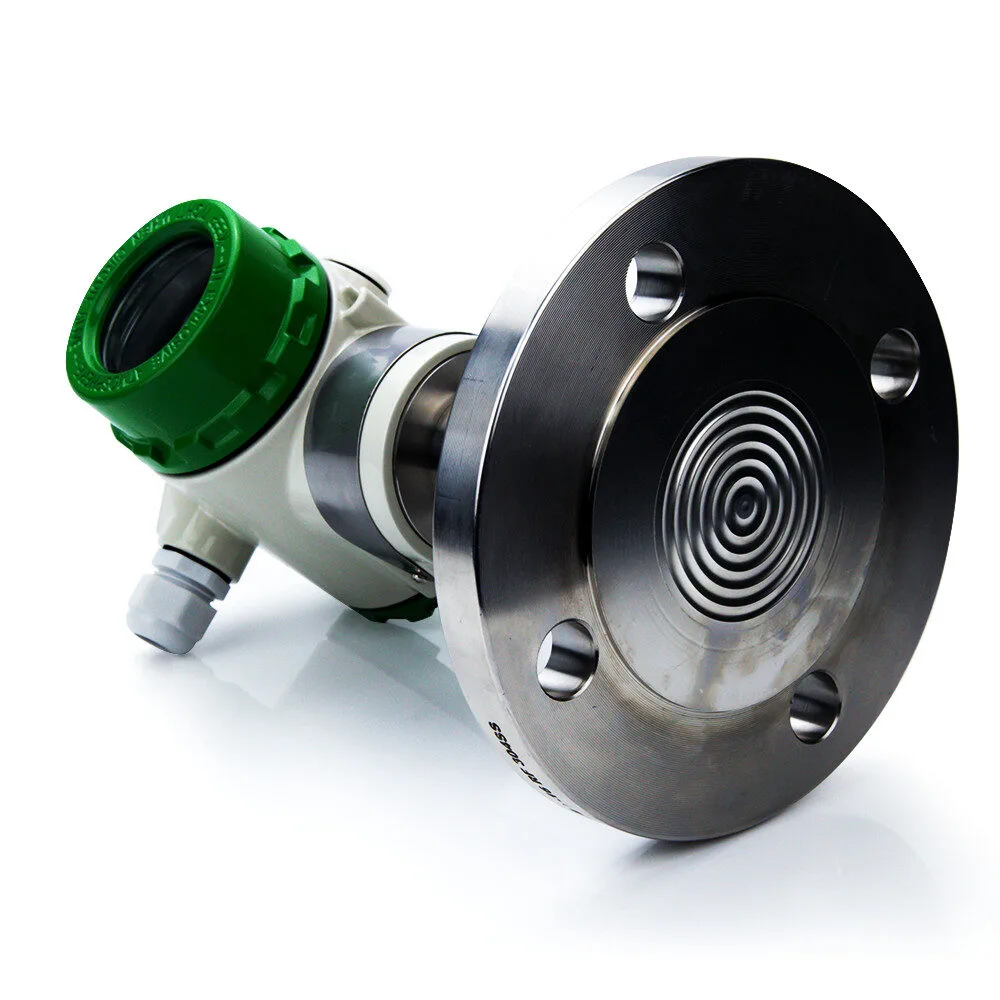

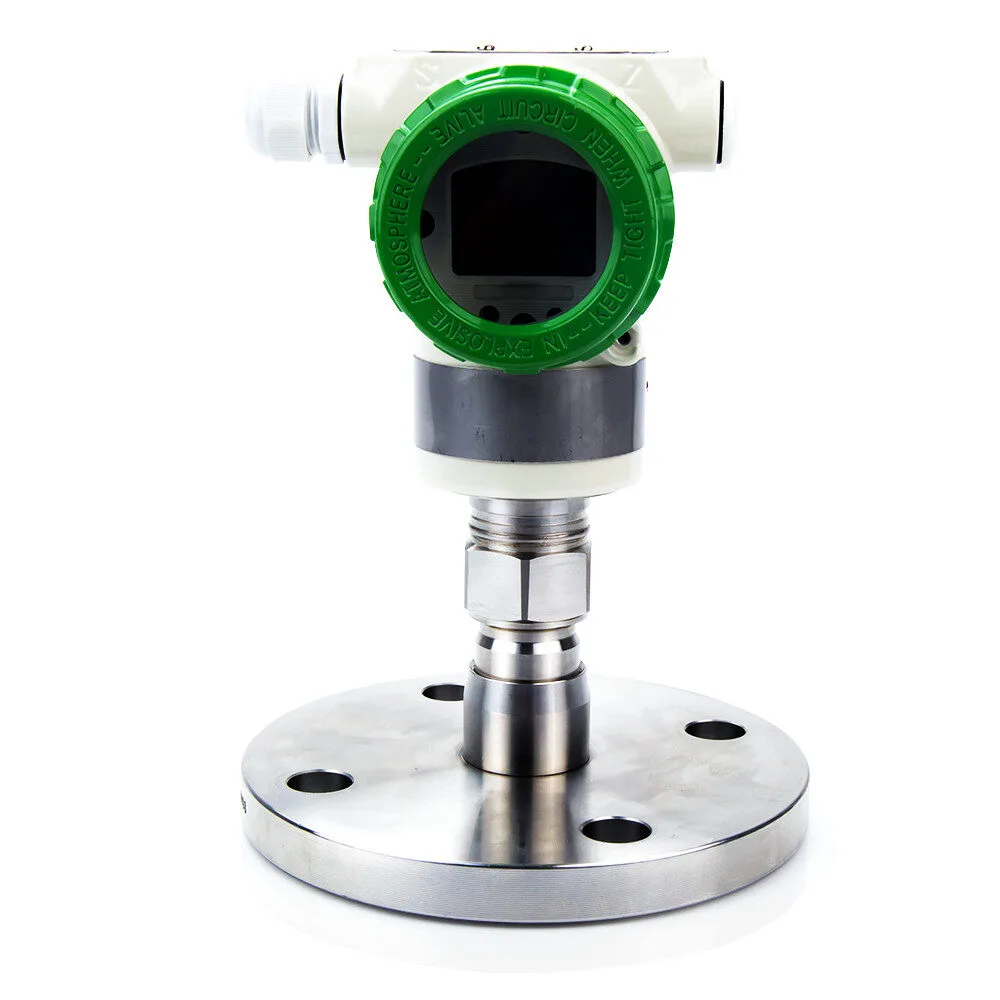

petrocherncals transmitter (2)

petrocherncals transmitter (3)

petrocherncals transmitter (4)

petrocherncals transmitter (5)

petrocherncals transmitter (1)

Parameters

Pressure range -30~30bar Pressure Type Gauge pressure and absolute pressure
Accuracy ± 0.2%FS Input voltage 10.5~45V DC (intrinsic safety
explosion-proof 10.5-26V DC)
Output signal 4~20mA and Hart Display LCD
Power impact ± 0.005%FS/1V Environmental temperature -40~85℃
Housing material Cast aluminum alloy and
stainless steel (optional)		 Sensor type Monocrystalline silicon
Diaphragm material SUS316L, Hastelloy HC-276, Tantalum, gold-plated, Monel, PTFE (optional) Receiving liquid material Stainless steel
Environmental
temperature impact		 ± 0.095~0.11% URL/10 ℃ Measurement medium Gas, steam, liquid
Medium temperature Depends on flange Static pressure effect ± 0.1%FS/10MPa
Stability ± 0.1%FS/5 years Ex-proof Ex(ia) IIC T6
Protection class IP66 Installation bracket Carbon steel galvanized and stainless
steel (optional)
Weight ≈4.46kg

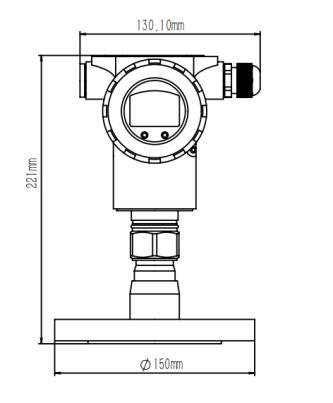

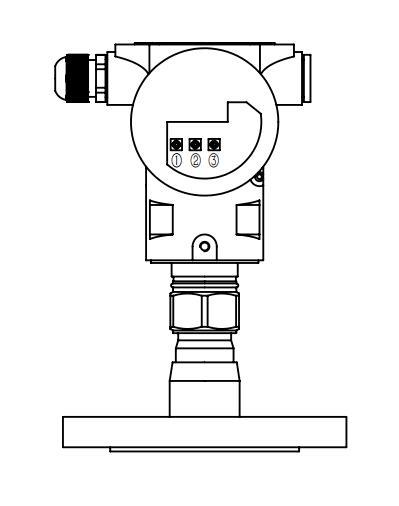

Dimensions(mm) & electrical connection

XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]
XDB605-S1 series Image[2]

Output Curvee

XDB605 series Image[3]

Flange size selection

Flat flange DN50 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 150 120.7 100 61 19.5 4 18
ANSI300 165 127 100 61 22.7 8 18
ANSI600 165 127 100 61 32.4 8 18
DINPN10/16 165 125 100 61 18 4 18
DINPN25/40 165 125 100 61 20 4 18
DIN PN 64 180 135 100 61 26 4 22
DIN PN 100 195 145 100 61 28 4 18



Flat flange DN80 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 190 152.4 130 89 24.3 4 18
ANSI300 210 168.3 130 89 29 8 22
ANSI600 210 168.3 130 89 38.8 8 22
DINPN10/16 200 160 130 89 20 8 18
DINPN25/40 200 160 130 89 24 8 18
DIN PN 64 215 170 130 89 28 8 22
DIN PN 100 230 180 130 89 32 8 26



Flat flange DN100 dimension table Unit: mm
Flange standard A B C D T1 Number of bolts(n） Bolt hole diameter(d)
ANSI150 230 190.5 150 115 24.3 8 18
ANSI300 255 200 150 115 32.2 8 22
ANSI600 275 215.9 150 115 45.1 8 26
DINPN10/16 220 180 150 115 20 8 18
DINPN25/40 235 190 150 115 24 8 22
DIN PN 64 250 200 150 115 30 8 26
DIN PN 100 265 210 150 115 36 8 30



How to order

E.g. XDB605 – S1 – H – R1 – W1 – SS – G1 – D1 – A – X1 – DY – M20 – M – H – Q

Model/Item Specification code Description
XDB605 S1 Flange remote transmitter
Output signal H 4-20mA, Hart, 2-wire
Measuring range R1 1~6kPa Range: -6~6kPa Overload limit: 2MPa
R2 4~40kPa Range: -40~40kPa Overload limit: 7MPa
R3 10~100KPa, Range: -100~100kPa Overload limit: 7MPa
R4 40~400KPa, Range: -100~400kPa Overload limit: 7MPa
R5 0.3-3MPa, Range: -0.1-3MPa Overload limit: 7MPa
Housing material W1 Cast aluminum alloy
W2 Stainless steel
Receiving liquid material SS Diaphragm: SUS316L, Other receiving liquid materials: stainless steel
HC Diaphragm: Hastelloy HC-276 Other liquid contact materials: stainless steel
TA Diaphragm: Tantalum Other Liquid Contact Materials: Stainless Steel
GD Diaphragm: gold-plated, other liquid contact materials: stainless steel
MD Diaphragm: Monel Other liquid contact materials: stainless steel
PTFE Diaphragm: PTFE coating Other liquid contact materials: stainless steel
Flange specifications G1 GB/T9119-2010 1.6MPA
G2 HG20592 1.6MPA
G3 DIN 1.6MPA
G4 ANSI 1.6MPA
GX Customized
High-Pressure Side Flange
Size		 D1 DN25
D2 DN50
D3 DN80
D4 DN100
D5 Customized
Flange Material A 304
B 316
C Customized
Diaphragm Protrusion Length X1 ***mm
Capillary Length DY ***mm
Electrical connection M20 M20 * 1.5 female with a blind plug and an electrical connector
N12 1/2NPT female with a blind plug and an electrical connector
Display M LCD display with buttons
L LCD display without buttons
N NONE
2-inch pipe installation
bracket		 H Bracket
N NONE
Bracket material Q Carbon steel galvanized
S Stainless steel
