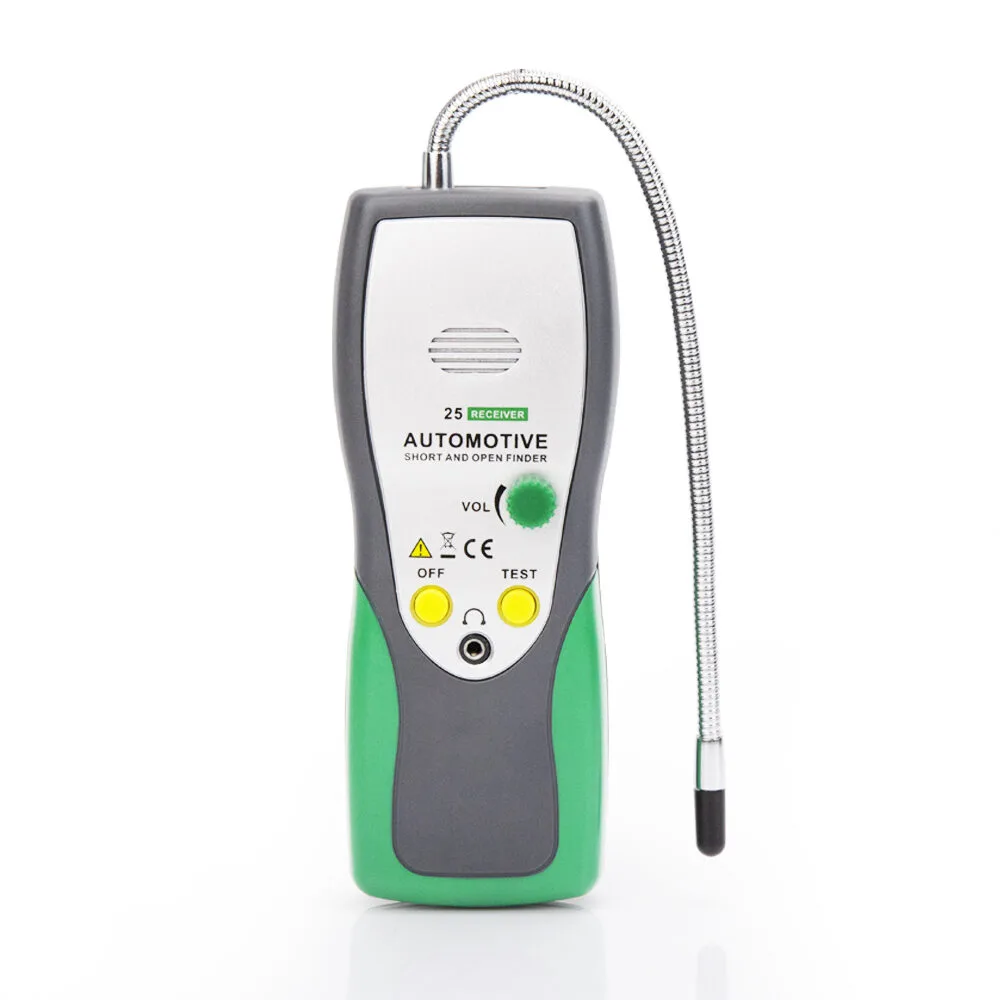

XDB918 is expertly designed to identify, trace, and safeguard wires or cables with precision. Its versatile capabilities encompass short circuit checks and open circuit location, offering a comprehensive solution for your electrical diagnostic requirements. Equipped with a transmitter and receiver, the XDB918 provides all the essential tools for effortless handling of complex tasks.
YH18 and YH14 series ceramic pressure sensors utilize special ceramics material and advanced manufacturing processes. They are featured with exceptional corrosion resistance, effective heat dissipation, optimal springiness, and reliable electrical insulation. As a result, more and more clients are choosing ceramics pressure sensors as a superior alternative to traditional silicon-based and mechanical pressure components.
YH18P and YH14P series flush diaphragm piezoresistive ceramic pressure sensors feature a 96% Al2O3 base and diaphragm. These sensors feature wide temperature compensation, high operating temperature range, and a robust structure for safety under extreme pressure, thus they can directly handle various acids and alkaline media without additional protection. As a result, they are ideal for industries with high safety requirements and can be easily integrated into standard transmission output modules.
XDB101-5 series flush diaphragm ceramic pressure sensor is the latest pressure pressure core in XIDIBEI, with pressure ranges of 10 bar, 20 bar, 30 bar, 40 bar, 50 bar. It is made of 96% Al2O3, allowing direct contact with most acidic and alkaline media (excluding hydrofluoric acid) without the need for additional isolation protection devices, saving packaging costs. A customized base is employed to ensure exceptional stability during the sensor mounting process.
XDB101-5 series flush diaphragm ceramic pressure sensor is the latest pressure pressure core in XIDIBEI, with pressure ranges of 10 bar, 20 bar, 30 bar, 40 bar, 50 bar. It is made of 96% Al2O3, allowing direct contact with most acidic and alkaline media (excluding hydrofluoric acid) without the need for additional isolation protection devices, saving packaging costs. A customized base is employed to ensure exceptional stability during the sensor mounting process.
XDB102-1(A) series diffused silicon pressure sensor cores have the same shape, assembly size and sealing methods as the mainstream similar products abroad, and can be directly replaced. The production of each product has adopts strict aging, screening and testing processes to ensure excellent quality and high reliability.
XDB102-3 series diffused silicon pressure sensor cores use high stability diffused silicon chip, the measured medium pressure can be transferred to silicon chips through the diaphragm and silicon oil transfer to the diffusion of silicon chips, the use of diffused silicon piezo-resistive effect principle to achieve the purpose of measuring the size of liquid, gas pressure.
XDB102-4 series diffused silicon pressure sensor core is an isolated oil – filled pressure sensor core with high performance, low cost and small volume. It uses MEMS Silicon chip. Manufacturing of each sensor is a process with strict aging, screening and testing to ensure the excellent quality and high reliability.
This product has high anti-overload capacity and wide temperature range, it is widely used in automobiles, loading machinery, pumps, air conditioning and other occasions where have high requirements on small size and cost-effective.
XDB102-5 series Piezo-resistive differential pressure sensor cores use stainless steel material, there are also stainless steel corrugated diaphragm on both high and low pressure side to protect sensitive chip. The product’s shape and structure are the same with the similar products overseas, with good interchangeability, can be reliably applied to a variety of differential pressure measurements of the occasion.
XDB102-5 series Piezo-resistive differential pressure sensor cores use stainless steel material, there are also stainless steel corrugated diaphragm on both high and low pressure side to protect sensitive chip. The product’s shape and structure are the same with the similar products overseas, with good interchangeability, can be reliably applied to a variety of differential pressure measurements of the occasion.
XDB102-6 series temperature & pressure dual output pressure sensor can measure the temperature and pressure critically at the same time. It has a very strong interchangeability, overall size is φ19mm ( universal ). XDB102-6 can be reliably applied to hydraulic systems, industrial process control and hydrological applications.
XDB102-7 series Piezoresistive pressure sensor is a sensor encapsulating the isolation film sensor core in the stainless steel shell, with SS 316L diaphragm and stainless steel shell and interface. It has good media compatibility, reliable and stableperformance with G1/2 or M20*1.5 external thread. The back-end interface is M27 * 2 external thread, which is convenient for customers to directly install and use. XDB102-7 is suitable for a variety of gas, liquid medium pressure measurements. It can be widely used in petroleum, chemical, marine, hydraulic systems and other industries process control and measurement
XDB103-10 series ceramic pressure sensor module features a 96% Al2O3 ceramic material and works based on the piezoresistive principle. The signal conditioning is done by a small PCB, which is mounted directly to the sensor, offering 0.5-4.5V, ratio-metric voltage signal (customized is available). With excellent long-term stability and minimal temperature drift, it incorporates offset and span correction for temperature changes. The module is cost-effective, easy to mount, more stable and suitable for measuring pressure in aggressive media due to its good chemical resistance.
The XDB103-3 series ceramic pressure sensor module is a sophisticated sensing solution designed for various industrial applications. Crafted from a high-quality 96% Al2O3 ceramic material, this sensor operates based on the piezoresistive principle. It boasts exceptional long-term stability and minimal temperature drift, making it a reliable choice for precision measurements. The signal conditioning is efficiently carried out by a compact PCB that is directly mounted to the sensor. This setup offers a 4-20mA analog signal output, ensuring compatibility with modern control systems.
Pressure sensor module XDB103-9 is composed of a pressure sensor chip which is mounted on 18mm diameter PPS corrosion-resistant material, a signal conditioning circuit, and a protection circuit. It adopts a single crystal silicon on the back of the pressure chip to contact the medium directly, so it can be applied for pressure measurement of various corrosive/non-corrosive gases and liquids, and features high overload capacity and water hammer resistance. The working pressure range is 0-6MPa gauge pressure, the power supply voltage is 9-36VDC, and the typical current is 3mA.
XDB105 series stainless steel pressure sensor core is a specialized device designed to detect and measure the pressure of a givenmedium. It operates by converting this pressure into usable output signals, following specific predefined rules.Typically, it comprises sensitive components and conversion elements which are manufactured using high-temperature sintering techniques, which increases resilience to temperature, humidity, and mechanical fatigue, ensuring long-term stability in industrial environments.
